PRO H610M-E DDR4 LGA1700

PRO H610M-E DDR4 LGA1700

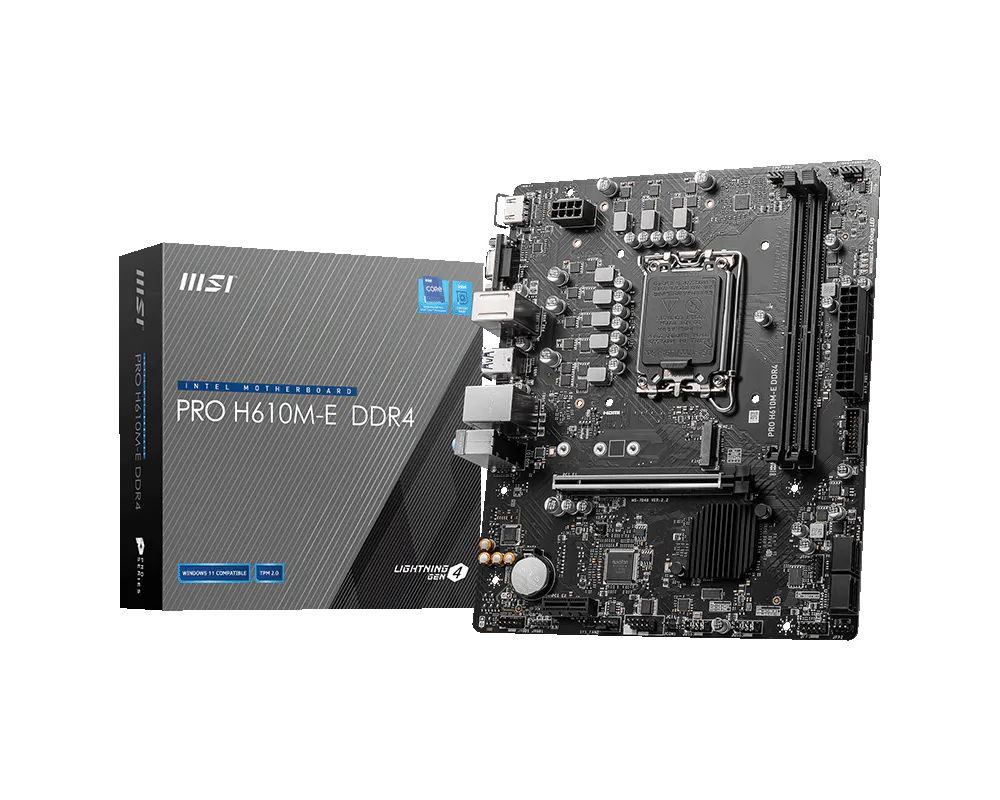

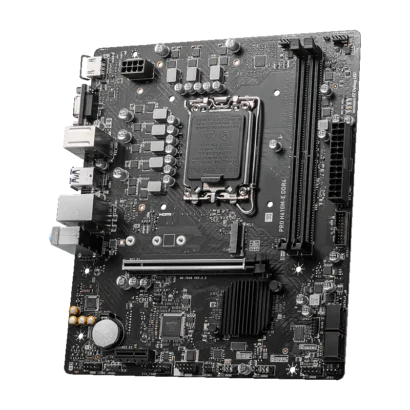

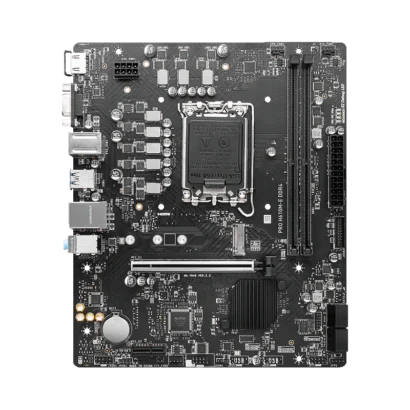

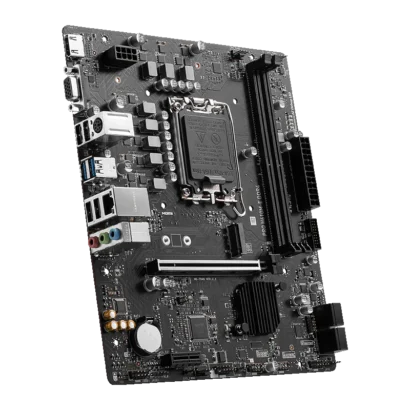

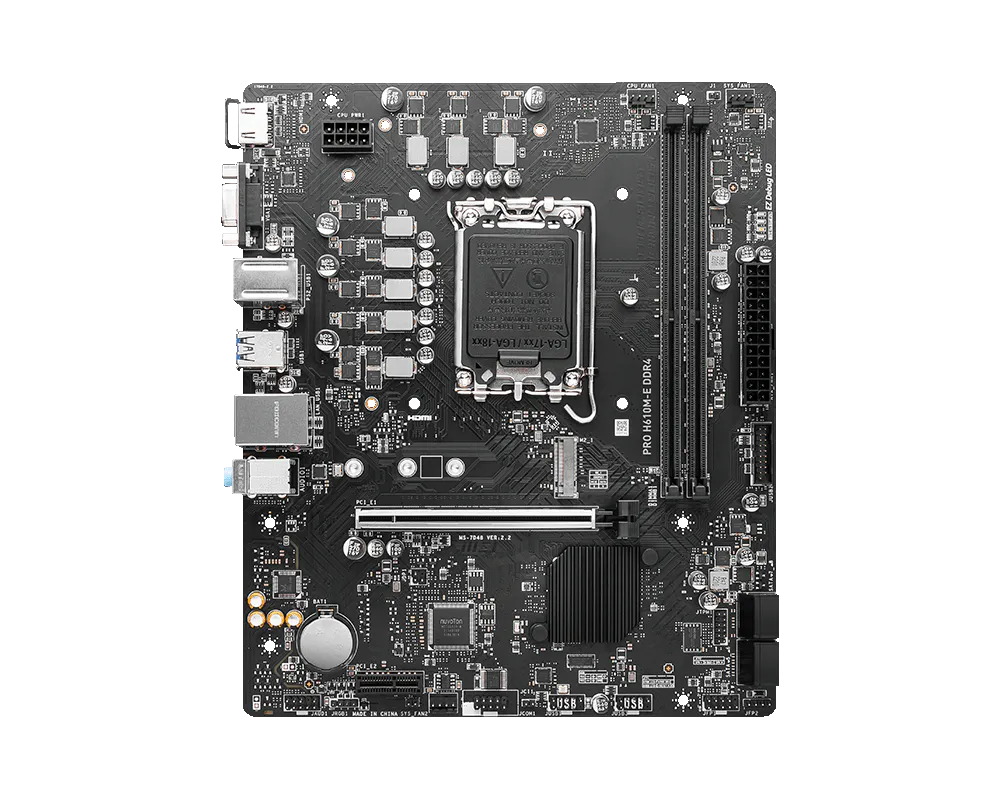

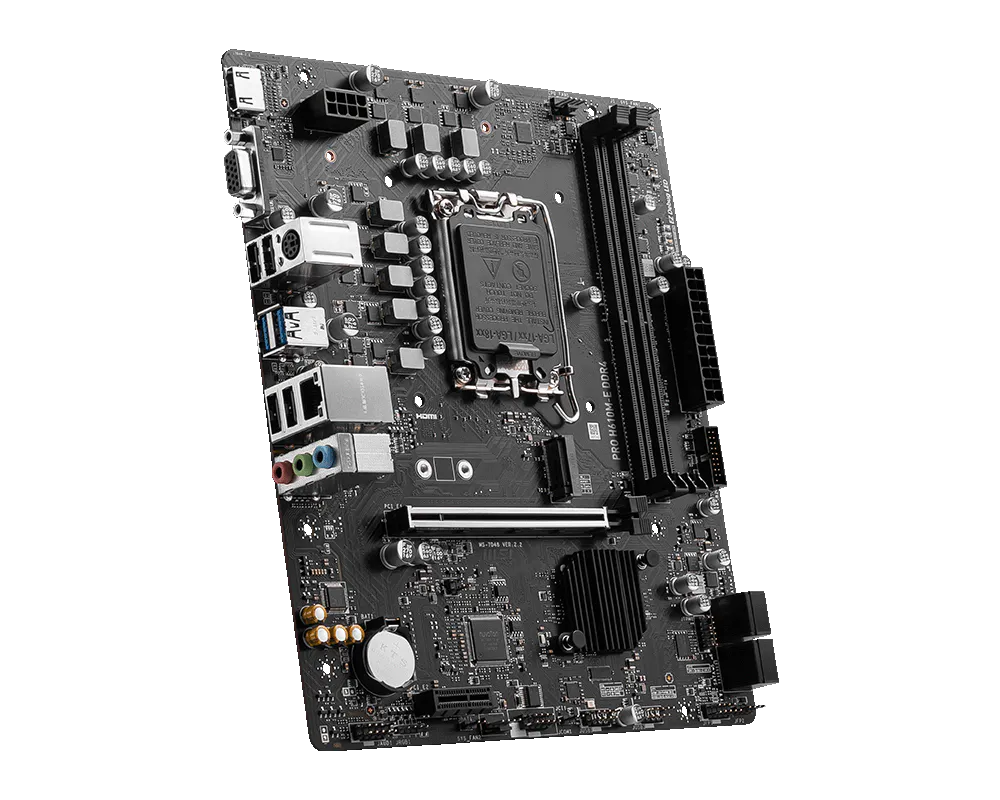

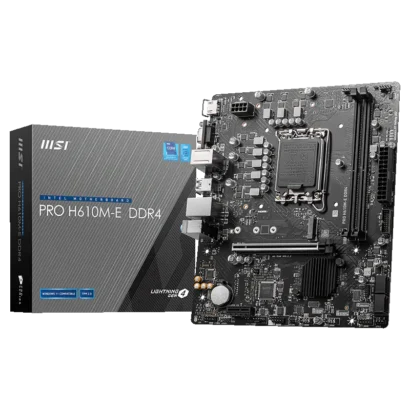

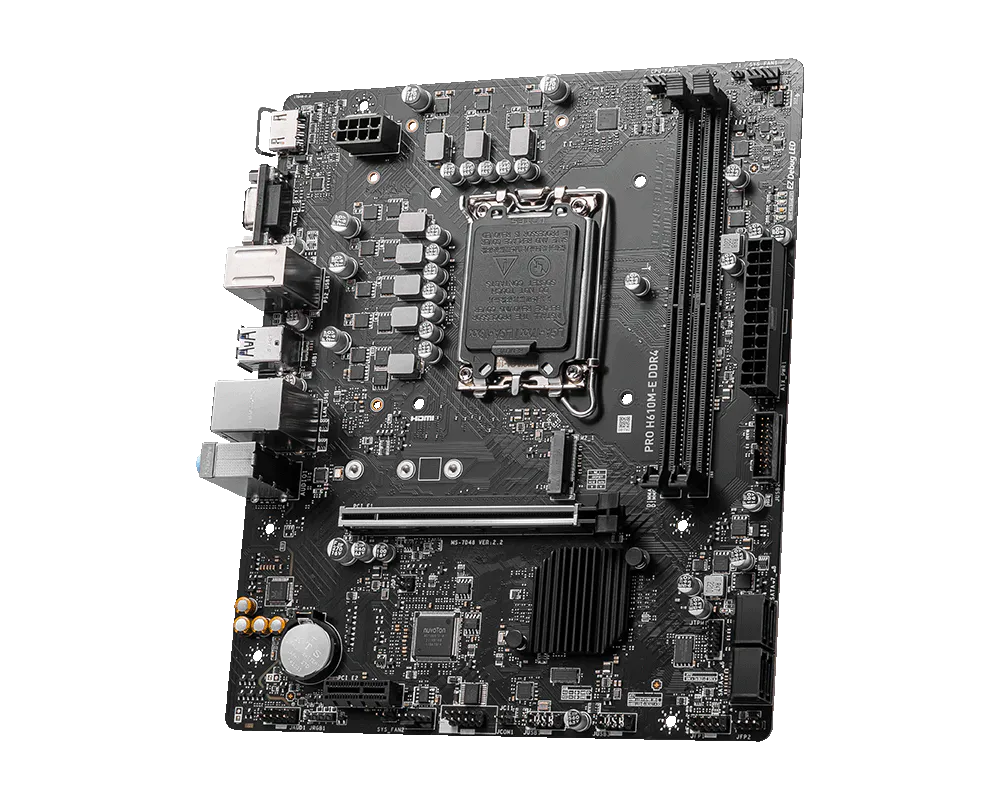

The MSI PRO H610M-E DDR4 is a budget Micro-ATX motherboard built for Intel’s LGA1700 platform, supporting 12th, 13th, and 14th Gen Intel processors. It’s designed for entry-level gaming, office PCs, and affordable builds, focusing on stability and essential features rather than high-end extras.

Powered by the Intel H610 chipset, this board delivers reliable day-to-day performance but comes with limitations like no CPU overclocking and fewer expansion options.

Key Features

⚙️ CPU & Platform Support

• Socket: LGA1700
• Supports Intel Core (12th/13th/14th Gen), Pentium Gold, Celeron
• H610 chipset → no CPU overclocking

🧠 Memory (RAM)

• 2× DDR4 slots (dual-channel)
• Up to 64GB RAM
• Supports up to 3200 MHz (JEDEC)

🎮 Expansion & GPU Support

• 1× PCIe 4.0 x16 slot (for GPU)
• 1× PCIe 3.0 x1 slot
• Good for modern GPUs, but limited expansion

💾 Storage Options

• 1× M.2 slot (PCIe Gen3 x4 NVMe)
• 4× SATA ports
• Suitable for SSD + HDD combo setups

🌐 Connectivity

• Gigabit LAN (Realtek)
• No built-in WiFi or Bluetooth
• USB 3.2 Gen1 + USB 2.0 ports

🎧 Audio & Display

• Realtek ALC897 audio codec (7.1 HD audio)
• HDMI + VGA output (for iGPU CPUs)

📏 Form Factor

• Micro-ATX (mATX)
• Fits:
  • Micro-ATX cases ✅
  • Mid tower cases ✅

                                       SPECIFICATIONS

• Socket –                                   LGA 1700

• Chipset –                                INTEL H610

• Memory Channel –                DUAL

• DIMM Slots –                          DDR4*2

• Max Memory (GB) –       64GB 3200MHZ

• PCI-E x16 –                                       1

• PCI-E x1 –                                          1

• SATAIII –                                             4

• M.2 Slot –                                           1
