Description

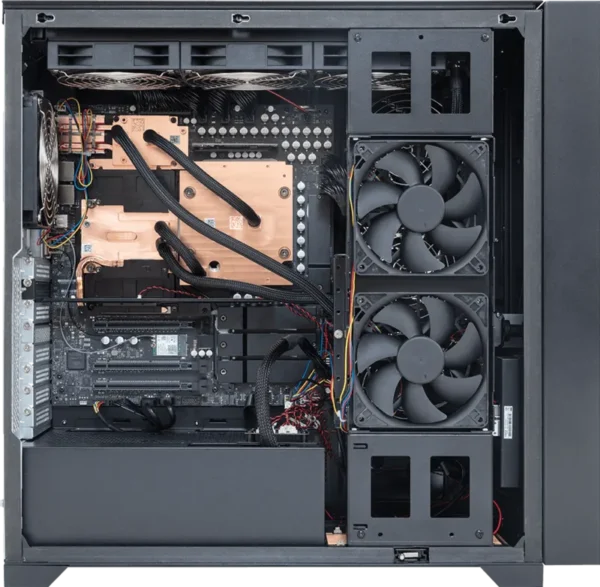

Gigabyte GB300 W775-V10-L01 AI Workstation
Features
- NVIDIA GB300 Platform – Powered by the Grace Blackwell Ultra architecture.
- 72-Core Grace CPU – Features NVIDIA Grace CPU with 72 Neoverse V2 cores.
- Blackwell Ultra GPU – Includes 1 × NVIDIA Blackwell Ultra GPU.
- 748GB Coherent Memory – Combines 496GB LPDDR5X and 252GB HBM3E memory.
- 7.1TB/s GPU Bandwidth – High-bandwidth HBM3E memory for demanding AI workloads.
- 400Gbps Networking – Includes 2 × 400Gbps QSFP ports through ConnectX-8.
- PCIe Gen 5 Expansion – Supports 1 × Gen5 x16 and 2 × Gen5 x8 slots.
- PCIe Gen 6 NVMe – Provides 2 × M.2 PCIe Gen6 x4 storage slots.
- Closed-Loop Liquid Cooling – Designed for sustained high-performance AI workloads.
Specifications
| Brand | GIGABYTE |
| Model | W775-V10-L01 |
| System Type | AI Workstation / Deskside AI Supercomputer |
| Superchip | NVIDIA GB300 Grace Blackwell Ultra |
| CPU | NVIDIA Grace CPU |
| CPU Architecture | Arm Neoverse V2 |
| CPU Cores | 72 Cores |
| GPU | NVIDIA Blackwell Ultra |
| CPU Memory | 496GB LPDDR5X ECC |
| CPU Memory Bandwidth | Up to 396GB/s |
| GPU Memory | 252GB HBM3E |
| GPU Memory Bandwidth | Up to 7.1TB/s |
| Total Coherent Memory | Up to 748GB |
| Networking | 2 × 400Gb/s QSFP |
| SuperNIC | NVIDIA ConnectX-8 |
| LAN | 1 × 10GbE Marvell AQC113 |
| Management LAN | 1 × 1GbE |
| M.2 Gen5 | 2 × M.2 PCIe Gen5 x4 |
| M.2 Gen6 | 2 × M.2 PCIe Gen6 x4 |
| PCIe Slots | 1 × Gen5 x16 + 2 × Gen5 x8 |
| Wi-Fi Slot | 1 × M.2 E-Key |
| Video Output | 1 × Mini DisplayPort |
| Audio Codec | Realtek ALC4080 |
| Front USB | 1 × USB 3.2 Gen2 Type-C + 2 × USB 3.2 Gen1 Type-A |
| Rear USB | 4 × USB 3.2 Gen2 Type-A |
| Cooling | Closed-Loop Liquid Cooling |
| System Fans | 3 × 120mm |
| Power Supply | 1600W ATX 80 PLUS Platinum |
| OS | NVIDIA DGX OS |
| Operating Temperature | 10°C – 35°C |
| Net Weight | 29.2kg |
| Gross Weight | 34.4kg |
