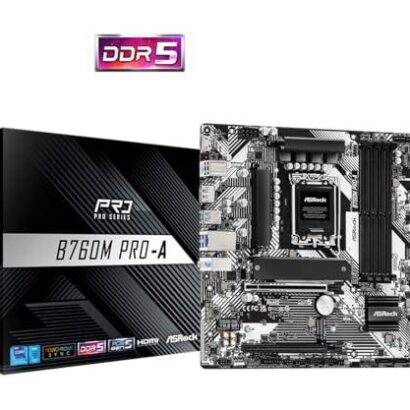

ASRock B760M Pro-A DDR5 M-ATX MOTHERBOARD
Original price was: ₹19,999.00.₹13,299.00Current price is: ₹13,299.00.
- Intel 14th Gen Ready: Supports Intel 14th, 13th and 12th Gen Core processors.
- Stable Power Delivery: 7+1+1 phase Dr.MOS power design provides reliable CPU power delivery.
- High-Speed DDR5: Supports up to 256GB DDR5 memory and speeds up to 7200+ MT/s (OC).
- PCIe 5.0 Graphics: Provides next-generation bandwidth for compatible graphics cards.
- Triple M.2 Storage: Three PCIe Gen4x4 Hyper M.2 slots enable multiple high-speed NVMe SSDs.
- Fast Networking: Dragon 2.5GbE LAN provides high-speed wired connectivity.
- Optional Wireless: The M.2 Key E slot allows installation of a compatible Wi-Fi/Bluetooth module.
- Compact Build Ready: Micro-ATX design is suitable for compact gaming and productivity systems.
- Easy Setup: ASRock Auto Driver Installer simplifies initial driver installation.
Available on backorder
ASRock B760M Pro-A DDR5 M-ATX MOTHERBOARD
The ASRock B760M Pro-A is a Micro-ATX motherboard designed for Intel 14th, 13th and 12th Gen Core processors on the LGA1700 platform. It features DDR5 memory support, PCIe 5.0 graphics connectivity, three PCIe Gen4 M.2 slots, 2.5G LAN and a 7+1+1 phase Dr.MOS power design, making it a solid choice for gaming, productivity and mainstream performance builds.
Key Features
- Intel B760 chipset with LGA1700 socket
- Supports Intel 14th, 13th and 12th Gen Core processors
- Micro-ATX form factor
- 7+1+1 Power Phase Design with Dr.MOS
- 6-layer PCB
- 4 × DDR5 DIMM slots
- Supports up to 256GB DDR5 memory
- DDR5 speeds up to 7200+ MT/s (OC)
- 1 × PCIe 5.0 x16 graphics slot
- 1 × PCIe 3.0 x16 slot running at x4
- 3 × PCIe Gen4x4 Hyper M.2 slots
- 4 × SATA3 6Gb/s ports
- Dragon 2.5GbE LAN
- M.2 Key E slot for optional Wi-Fi/Bluetooth module
- Realtek ALC897 7.1-channel HD Audio
- HDMI 2.1 and DisplayPort 1.4
- ASRock Auto Driver Installer
Specifications
| Specification | Details |
|---|---|
| Brand | ASRock |
| Model | B760M Pro-A |
| Form Factor | Micro-ATX |
| Socket | LGA1700 |
| Chipset | Intel B760 |
| CPU Support | Int el 14th / 13th / 12th Gen Core |
| Memory | 4 × DDR5 DIMM |
| Maximum Memory | Up to 256GB |
| Memory Speed | Up to DDR5-7200+ MT/s (OC) |
| Primary PCIe Slot | PCIe 5.0 x16 |
| Secondary PCIe Slot | PCIe 3.0 x16 (x4) |
| M.2 Slots | 3 × PCIe Gen4x4 |
| SATA | 4 × SATA3 6Gb/s |
| LAN | Dragon 2.5GbE |
| Wi-Fi | Not built in; M.2 Key E slot for optional module |
| Audio | Realtek ALC897 7.1 CH |
| Display Outputs | HDMI 2.1 + DisplayPort 1.4 |
| PCB | 6-layer |
| Operating System | Windows 10 64-bit / Windows 11 64-bit |
