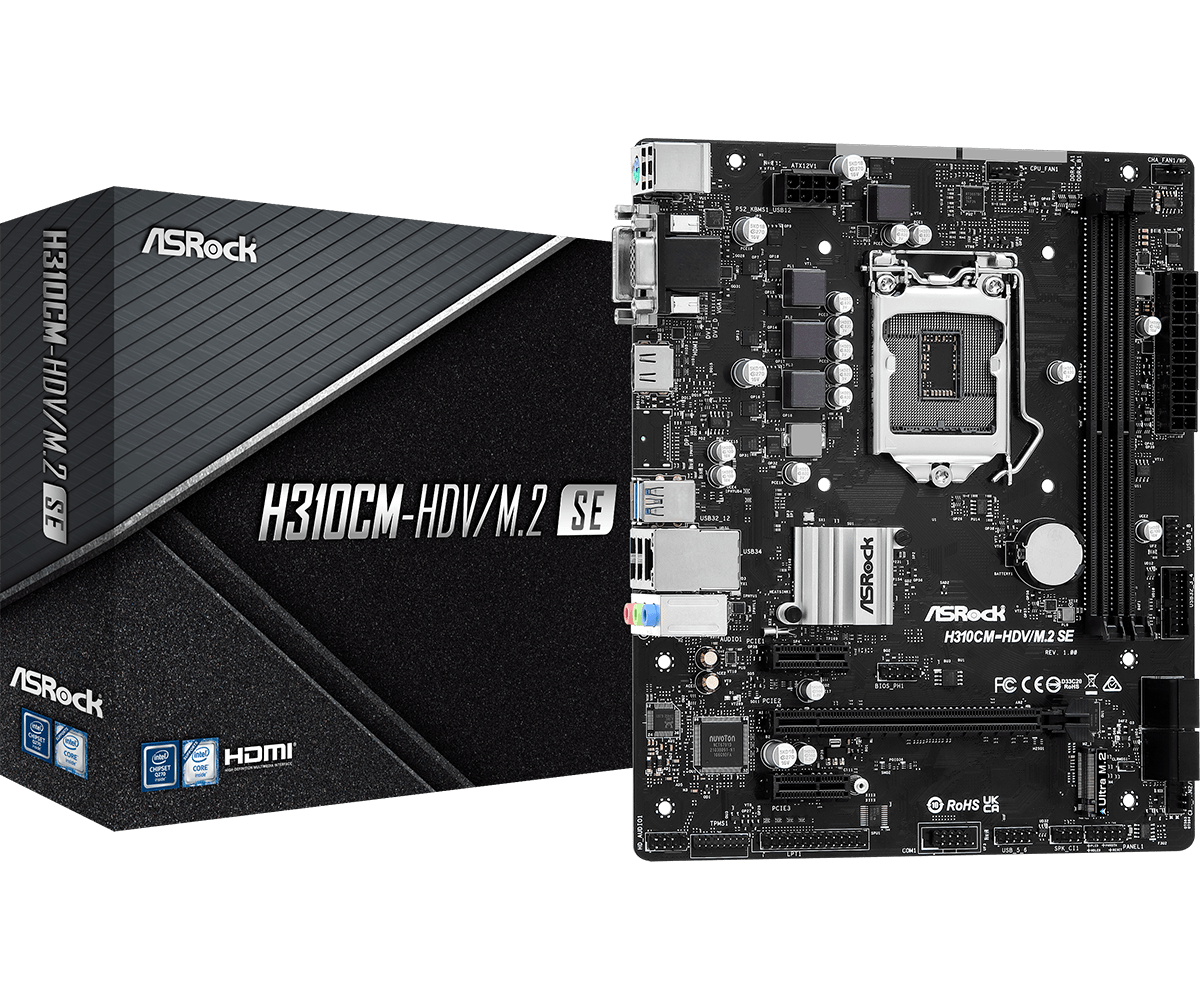

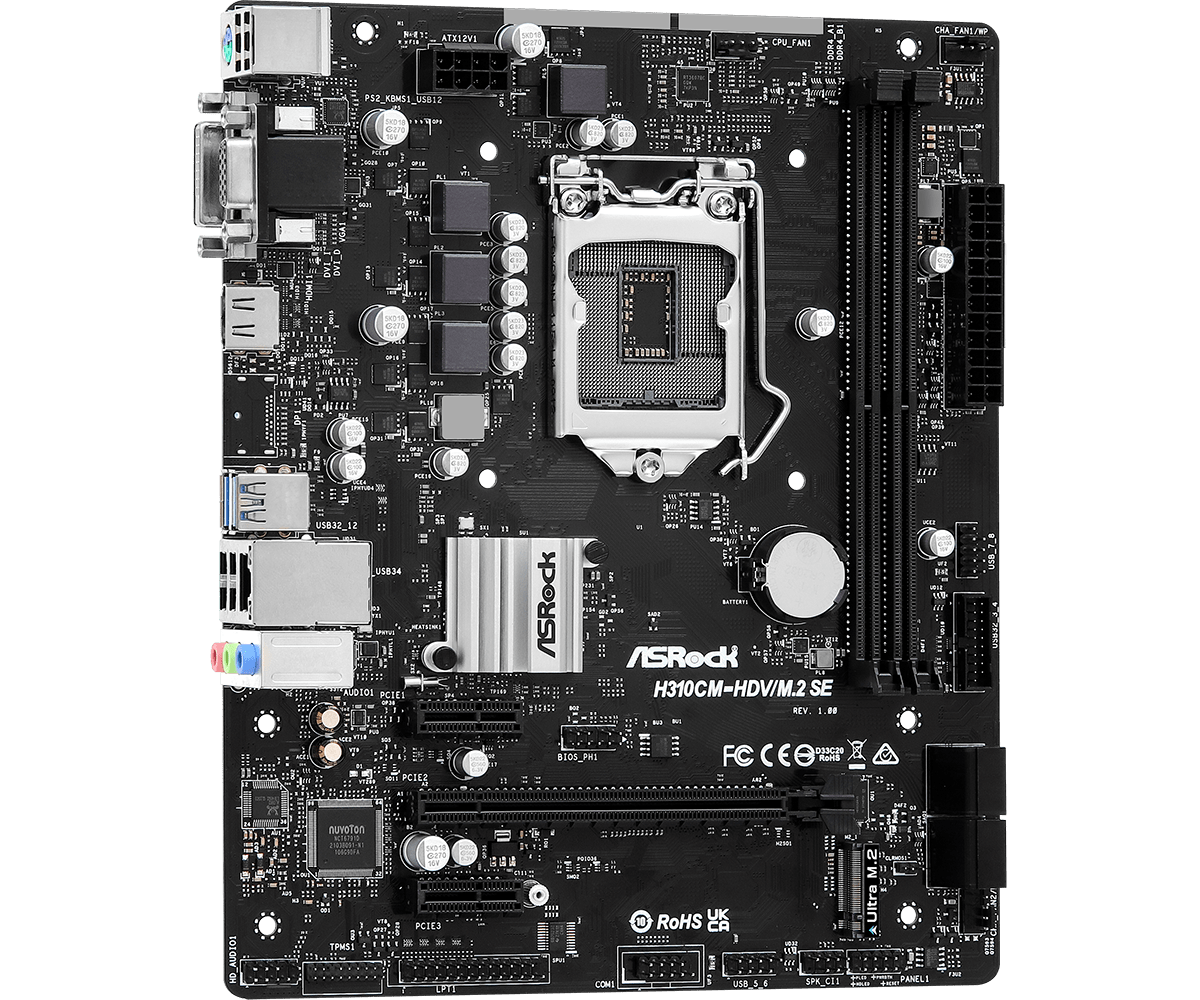

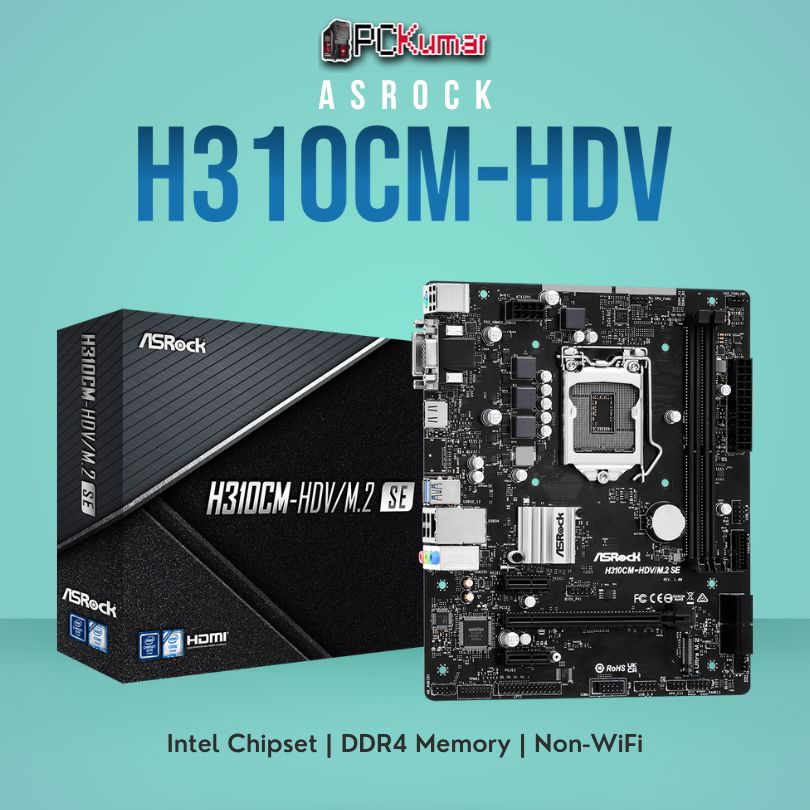

ASROCK H310CM- HDV (INTEL 6/7/8/9th Gen)
Original price was: ₹6,999.00.₹5,309.00Current price is: ₹5,309.00.
Chipset: Intel H310
Socket: LGA1151
Memory Support: 2x DDR4 DIMM, up to 32GB
Expansion Slots: 1x PCIe 3.0 x16, 1x PCIe 2.0 x1
Storage: 1x PCIe 2.0 M.2, 4x SATA3
Networking: Realtek Gigabit LAN
USB Ports: USB 3.1 Gen1, USB 2.0
Other Features: Micro-ATX form factor, affordable solution for older CPUs
-
Unique FeatureASRock Super Alloy
– Sapphire Black PCB
– High Density Glass Fabric PCB
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
-
CPU– Supports 9th, 8th, 7th and 6th Gen Intel® Core™ Processors (Socket 1151)
– Supports CPU up to 95W
– 4 Power Phase design
– Supports Intel® Turbo Boost 2.0 Technology
-
Chipset– Intel® Q270
-
Memory– Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
– Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory*
– Supports ECC UDIMM memory modules (operate in non-ECC mode) (for 7th and 6th Gen Intel® CPU only)
– Max. capacity of system memory: 32GB**
– Supports Intel® Extreme Memory Profile (XMP) 2.0
– 15μ Gold Contact in DIMM Slots
* 9th and 8th Gen Intel® CPU support DDR4 up to 2666; 7th Gen Intel® CPU supports DDR4 up to 2400; 6th Gen Intel® CPU supports DDR4 up to 2133.
**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
-
BIOS– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
-
Graphics– Three graphics output options: D-Sub, DVI-D and HDMI*
– Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz
– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
– Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports
– Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port
* Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.Supports up to 3 displays simultaneously
-
Audio– 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
– Supports Surge Protection
-
LAN– Gigabit LAN 10/100/1000 Mb/s
– Giga PHY Intel® I219V
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE
-
Slots– 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
– 2 x PCI Express 3.0 x1 Slots
* Supports NVMe SSD as boot disks -
Storage– 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug*
– 1 x Ultra M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
* If M2_1 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled.** Supports NVMe SSD as boot disks
-
Connector– 1 x Print Port Header
– 1 x COM Port Header
– 1 x TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin)*
– 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)***
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CHA_FAN1/WP and CHA_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use.
*** USB_7_8 is shared with USB32_3_4.
-

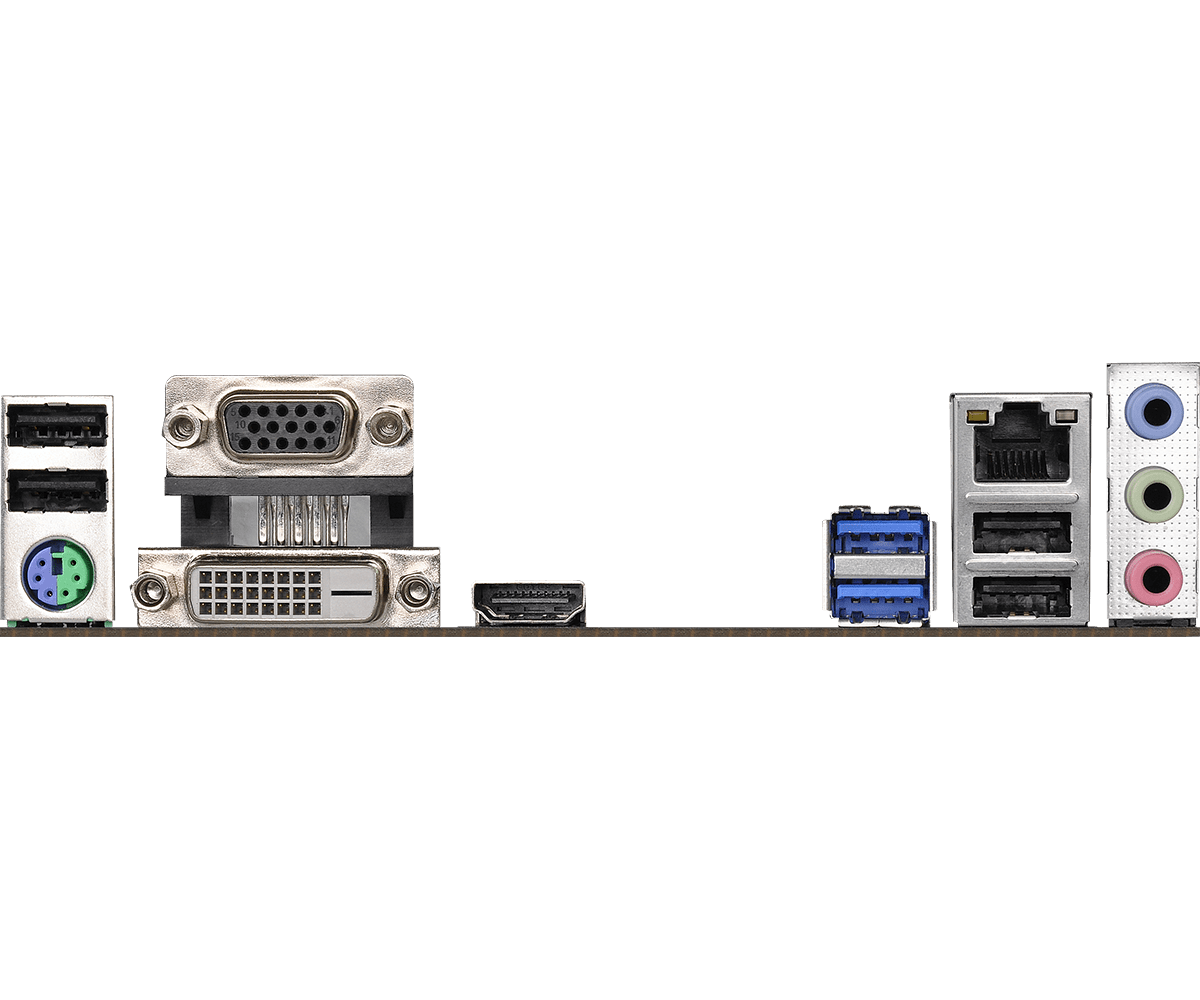

Rear Panel I/O– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 4 x USB 2.0 Ports (Supports ESD Protection)
– 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone
-
Software and UEFISoftware
– ASRock A-Tuning
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash
– ASRock Internet Flash
*These utilities can be downloaded from ASRock Live Update & APP Shop. -
Accessories– 1 x User Manual
– 1 x I/O Shield
– 2 x SATA Data Cables
– 1 x Screw for M.2 Socket
-
Form Factor– Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm
– Solid Capacitor design
-
OS– Microsoft Windows® 11 64-bit / 10 64-bit (For 9th, 8th and 7th Gen Intel® CPU)
– Microsoft Windows® 11 64-bit / 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit (For 6th Gen Intel® CPU)
* To install Windows® 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions. -
Certifications– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
