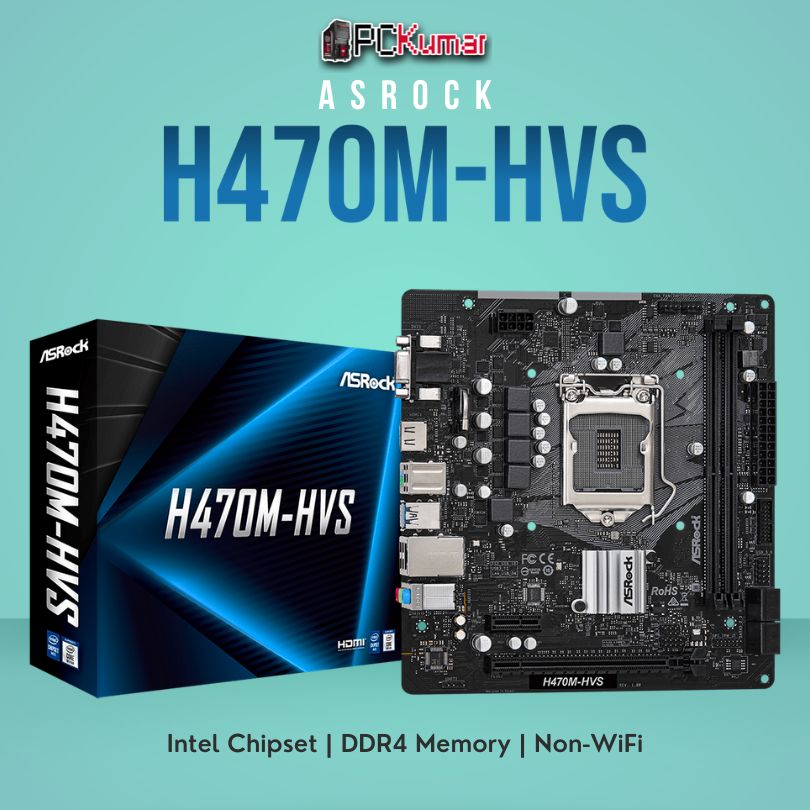

ASROCK H470M-HVS (INTEL 10TH)
Original price was: ₹9,999.00.₹6,999.00Current price is: ₹6,999.00.
Chipset: Intel H470
Socket: LGA1200
Memory Support: 2x DDR4 DIMM, up to 64GB
Expansion Slots: 1x PCIe 3.0 x16, 1x PCIe 3.0 x1
Storage: 1x PCIe 3.0 M.2, 4x SATA3
Networking: Realtek Gigabit LAN
USB Ports: USB 3.2 Gen1, USB 2.0
Other Features: Micro-ATX design, high-density glass fabric PCB
Out of stock
-
Unique FeatureASRock Super Alloy
– Premium 50A Power Choke
– Sapphire Black PCB
– High Density Glass Fabric PCB
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
-
CPU– Supports 10th Gen Intel® Core™ Processors (Socket 1200)
– Digi Power design
– 5 Power Phase design
– Supports Intel® Turbo Boost Max 3.0 Technology
-
Chipset– Intel® H470
-
Memory– Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
– Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 64GB**
– Supports Intel® Extreme Memory Profile (XMP) 2.0
– 15μ Gold Contact in DIMM Slots
*Core™ (i9/i7) support DDR4 up to 2933; Core™ (i5/i3), Pentium® and Celeron® support DDR4 up to 2666.
**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
-
BIOS– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 6.0 Compliant wake up events
– SMBIOS 2.7 Support
– CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST Voltage Multi-adjustment
-
Graphics– Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**
– Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
– Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel® SGX Content Protection, UHD Blu-ray Disc
– Dual graphics output: support HDMI and D-Sub ports by independent display controllers
– Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
– Supports HDCP 2.3 with HDMI 1.4 Port
– Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port
*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
**VP9 10bit and VC-1 are for decode only.
VP8 and VP9 encode are not supported by Windows® OS.
-
Audio– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Supports Surge Protection
-
LAN– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111H
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE
-
Slots– 1 x PCI Express 3.0 x16 Slot*
– 1 x PCI Express 3.0 x1 Slot
*Supports NVMe SSD as boot disks -
Storage– 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug
-
Connector– 1 x SPI TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin)*
– 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
-
Rear Panel I/O– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 1 x HDMI Port
– 4 x USB 2.0 Ports (Supports ESD Protection)
– 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone
-
Software and UEFISoftware
– ASRock Motherboard Utility (A-Tuning)
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Easy RAID Installer
*These utilities can be downloaded from ASRock Live Update & APP Shop. -
Support CD– Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
-
Accessories– Quick Installation Guide, Support CD, I/O Shield
– 2 x SATA Data Cables
-
Hardware Monitor– Temperature Sensing: CPU, Chassis/Water Pump Fans
– Fan Tachometer: CPU, Chassis/Water Pump Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
– Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
– CASE OPEN detection
– CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST Voltage Multi-adjustment
-
Form Factor– Micro ATX Form Factor: 7.76-in x 7.4-in, 19.7 cm x 18.8 cm
– Solid Capacitor design
-
OS– Microsoft Windows® 10 64-bit / 11 64-bit
-
Certifications– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
