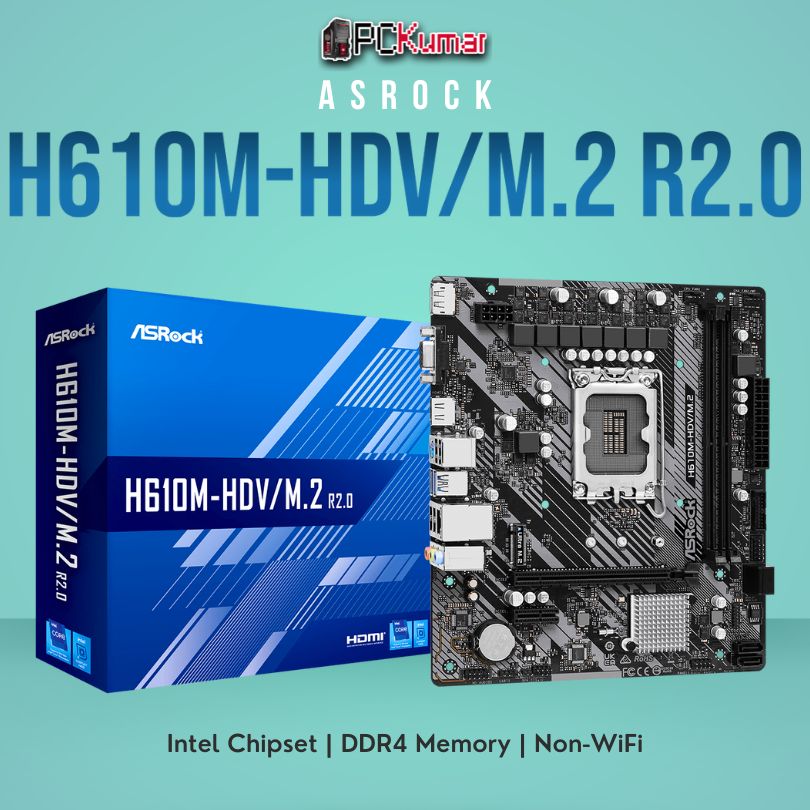

ASROCK H610M-HDV/M.2 R 2.0 (12 to 14th)
Original price was: ₹13,999.00.₹6,909.00Current price is: ₹6,909.00.
Chipset: Intel H610
Socket: LGA1700
Memory Support: 2x DDR4 DIMM, up to 64GB
Expansion Slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x1
Storage: 1x PCIe 3.0 M.2, 4x SATA3
Networking: Realtek Gigabit LAN
USB Ports: USB 3.2 Gen1, USB 2.0
Other Features: Affordable entry-level board, EZ Debug LED
-
Unique FeatureASRock Super Alloy
– Premium Power Choke
– Sapphire Black PCB
– High Density Glass Fabric PCB
ASRock Ultra M.2 (PCIe Gen3x4)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
-
CPU– Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
– 6+1+1 Power Phase design
– Supports Intel® Hybrid Technology
– Supports Intel® Turbo Boost Max 3.0 Technology
-
Chipset– Intel® H610
-
Memory– Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
– Supports DDR4 non-ECC, un-buffered memory up to 3200
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 64GB*
– Supports Intel® Extreme Memory Profile (XMP) 2.0
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. -
BIOS– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 6.0 Compliant wake up events
– SMBIOS 2.7 Support
– CPU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC Voltage Multi-adjustment
-
Graphics– Intel® Xe Graphics Architecture (Gen 12)
– Three graphics output options: D-Sub, HDMI and DisplayPort 1.4
– Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
– Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680×4320) @ 60Hz / 5K (5120×3200) @ 120Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. -
Audio– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Supports Surge Protection
-
LAN– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– 1 x Realtek RTL8111H
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE
-
SlotsCPU:
– 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode*
Chipset:
– 1 x PCIe 3.0 x1 Slot (PCIE1)
*Supports NVMe SSD as boot disks -
StorageChipset:
– 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
– 4 x SATA3 6.0 Gb/s Connectors
*Supports NVMe SSD as boot disksSupports ASRock U.2 Kit
-
Connector– 1 x SPI TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin)*
– 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
-
Rear Panel I/O– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
– 4 x USB 2.0 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone
-
Software and UEFISoftware
– ASRock Motherboard Utility (A-Tuning)
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
*These utilities can be downloaded from ASRock Live Update & APP Shop. -
Support CD– Drivers, Utilities, AntiVirus Software (Trial Version)
-
Accessories– Quick Installation Guide, Support CD, I/O Shield
– 2 x SATA Data Cables
– 1 x Screw for M.2 Socket
-
Hardware Monitor– Fan Tachometer: CPU, Chassis/Water Pump Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
– Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
– CASE OPEN detection
– Voltage monitoring: CPU Vcore, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, VCCSA, +1.05V PROC, +12V, +5V, +3.3V
-
Form Factor– Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
– Solid Capacitor design
-
OS– Microsoft Windows® 10 64-bit / 11 64-bit
-
Certifications– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
