ASRock H610M-X D5 M-ATX MOTHERBOARD
Original price was: ₹7,199.00.₹6,329.00Current price is: ₹6,329.00.
- Intel 14th Gen Ready: Supports Intel 14th, 13th and 12th Gen Core processors.
- DDR5 Memory: Supports dual-channel DDR5 memory with speeds up to 5600 MT/s.
- PCIe 4.0 Graphics: Provides high-speed connectivity for compatible graphics cards.
- Fast NVMe Storage: Ultra M.2 PCIe Gen3x4 slot supports high-speed NVMe SSDs with up to 32Gb/s interface bandwidth.
- 2.5GbE Networking: Realtek 2.5GbE LAN provides faster wired network performance than standard Gigabit Ethernet.
- Stable Power Design: 6+1+1 phase power delivery provides reliable CPU power.
- Compact Form Factor: Micro-ATX design is suitable for space-efficient PC builds.
- Versatile Display Support: HDMI and D-Sub outputs support flexible display configurations with compatible processors.
Available on backorder

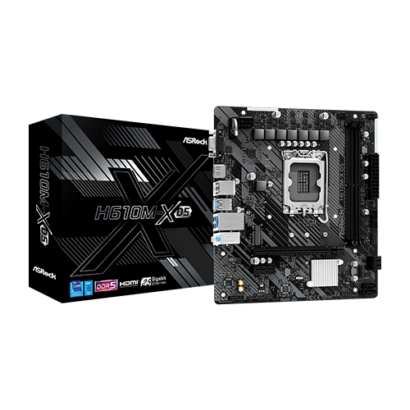

ASRock H610M-X D5 M-ATX MOTHERBOARD
The ASRock H610M-X D5 is a compact Micro-ATX motherboard designed for Intel 14th, 13th and 12th Gen Core processors with the LGA1700 socket. It offers DDR5 memory support, PCIe 4.0 graphics connectivity, PCIe Gen3 M.2 storage, 2.5GbE LAN and a 6+1+1 power phase design, making it a practical and cost-effective choice for everyday computing, office systems and entry-level gaming builds.
Key Features
- Intel H610 chipset with LGA1700 socket
- Supports Intel 14th, 13th and 12th Gen Core processors
- Micro-ATX form factor
- 6+1+1 Power Phase Design
- 2 × DDR5 DIMM slots
- Dual-channel DDR5 memory support
- Supports DDR5 speeds up to 5600 MT/s
- 1 × PCIe 4.0 x16 graphics slot
- 1 × PCIe 3.0 x1 expansion slot
- 1 × Ultra M.2 PCIe Gen3x4 slot
- 4 × SATA3 6Gb/s ports
- Realtek 2.5GbE LAN
- Realtek ALC897 7.1-channel HD Audio
- HDMI and D-Sub display outputs
- ASRock Auto Driver Installer
Specifications
| Specification | Details |
|---|---|
| Brand | ASRock |
| Model | H610M-X D5 |
| Form Factor | Micro-ATX |
| Socket | LGA1700 |
| Chipset | Intel H610 |
| CPU Support | Intel 14th / 13th / 12th Gen Core |
| Memory | 2 × DDR5 DIMM |
| Memory Speed | Up to DDR5-5600 MT/s |
| Memory Channel | Dual Channel |
| Primary PCIe Slot | PCIe 4.0 x16 |
| Expansion Slot | PCIe 3.0 x1 |
| M.2 | 1 × Ultra M.2 PCIe Gen3x4 |
| SATA | 4 × SATA3 6Gb/s |
| LAN | Realtek 2.5GbE |
| Audio | Realtek ALC897 7.1 CH |
| Display Outputs | HDMI + D-Sub |
| USB | 4 × USB 3.2 Gen1 + 6 × USB 2.0 |
| Wireless | Not Built In |
