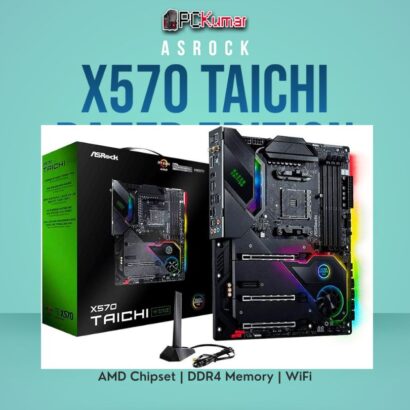

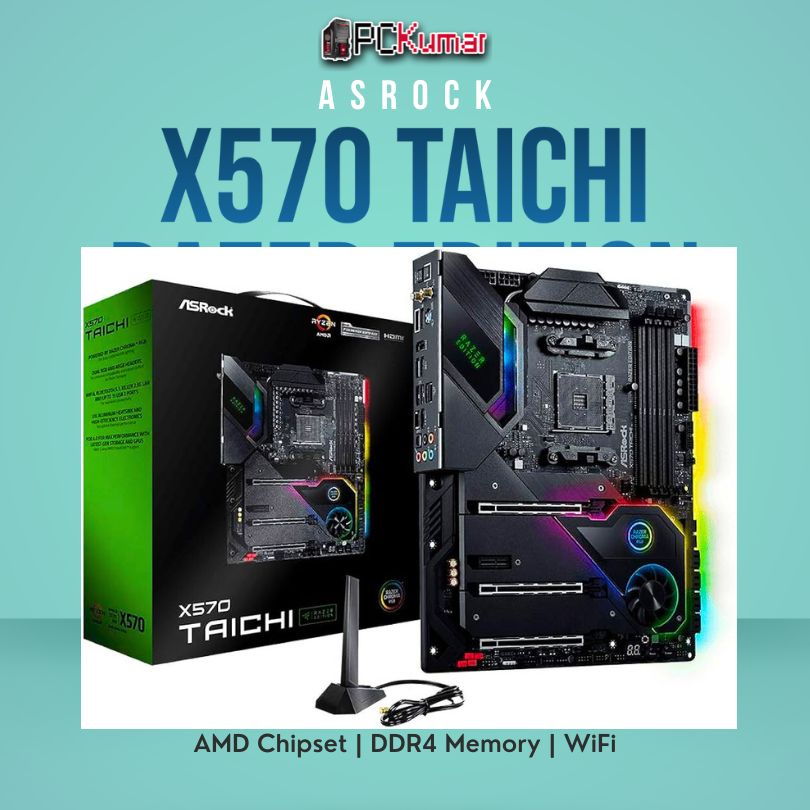

ASROCK X570 TAICHI RAZER EDITION

Name: ASROCK X570 TAICHI RAZER EDITION - PCKumar Infotech
SKU: ASRX570TAIRAZREDIT
Price: 35999.00 INR
Availability: OutOfStock

Original price was: ₹49,999.00.Current price is: ₹35,999.00.

Chipset: AMD X570

Socket: AM4

Memory Support: 4x DDR4 DIMM, up to 128GB

Expansion Slots: 3x PCIe 4.0 x16, 1x PCIe 4.0 x1

Storage: 3x PCIe 4.0 M.2, 8x SATA3

Networking: Intel WiFi 6, Realtek 2.5Gb LAN

USB Ports: USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0

Other Features: Razer Chroma RGB, advanced cooling design, robust power phases

Out of stock

Add to wishlist

Compare

SKU: ASRX570TAIRAZREDIT Categories: AM4 Motherboard, AMD Chipset, Asrock Motherboard, Motherboard Tags: AM4 motherboard, ASRock X570 Taichi Razer Edition, overclocking motherboard, PCIe 4.0 motherboard Brand: ASROCK

Description

Unique Feature

ASRock USB 3.2 Gen2

– ASRock Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)

– ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)

– ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)

ASRock Super Alloy

– XXL Aluminum Alloy Heatsink

– Premium 60A Power Choke

– 50A Dr.MOS

– Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)

– Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)

– I/O Armor

– Matte Black PCB

– High Density Glass Fabric PCB

– 2oz Copper PCB

Killer 2.5G LAN

Killer 802.11ax WiFi

Killer DoubleShot™ Pro

ASRock Steel Slot Gen4

ASRock Full Coverage M.2 Heatsink

ASRock Hyper M.2 (PCIe Gen4x4 & SATA3)

ASRock Ultra USB Power

ASRock Full Spike Protection (for all USB, Audio, LAN Ports)

ASRock Live Update & APP Shop
CPU

– Supports AMD AM4 Socket Ryzen™ 2000, 2000 G-Series, 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*

– Intersil Digital PWM

– 16 Power Phase design

*Please refer to CPU support list for details.
Chipset

– AMD X570
Memory

– Dual Channel DDR4 Memory Technology

– 4 x DDR4 DIMM Slots

– AMD Ryzen series CPUs (Vermeer) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*

– AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*

– AMD Ryzen series APUs (Cezanne) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*

– AMD Ryzen series APUs (Renoir) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*

– AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*

– AMD Ryzen series APUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory- Max. capacity of system memory: 128GB**

– Supports Extreme Memory Profile (XMP) memory modules

– 15μ Gold Contact in DIMM Slots

*For Ryzen Series APUs (Picasso, Cezanne and Renoir), ECC is only supported with PRO CPUs.

Please refer to below table for AMD non-XMP memory frequency support.Ryzen Series CPUs (Vermeer):

Ryzen Series CPUs (Matisse):

Ryzen Series APUs (Cezanne):

Ryzen Series APUs (Renoir):

Ryzen Series CPUs (Pinnacle Ridge):

Ryzen Series CPUs (Picasso):

SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label

DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS

– 256Mb AMI UEFI Legal BIOS with GUI support

– Supports “Plug and Play”

– ACPI 5.1 compliance wake up events

– Supports jumperfree

– SMBIOS 2.3 support

– CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustment
Graphics

– Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*

– DirectX 12, Pixel Shader 5.0

– Shared memory default 2GB. Max Shared memory supports up to 16GB.**

– Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz

– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)

– Supports HDR (High Dynamic Range) with HDMI 2.1

– Supports HDCP 2.3 with HDMI 2.1 Port***

– Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port

– Supports Microsoft PlayReady

*Actual support may vary by CPU

**The Max shared memory 16GB requires 32GB system memory installed.

***Picasso supports HDCP 2.2 with HDMI 2.0 Port
Audio

– 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)

– Premium Blu-ray Audio support

– Supports Surge Protection

– WIMA Audio Capacitors (For Front Outputs)

– ESS SABRE9218 DAC for Front Panel Audio (130dB SNR)

– Pure Power-In

– Direct Drive Technology

– PCB Isolate Shielding

– Impedance Sensing on Rear Out port

– Individual PCB Layers for R/L Audio Channel

– Gold Audio Jacks

– 15μ Gold Audio Connector

– Nahimic Audio
LAN

– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

– 1 x Killer E3100G (PCIE x1 Gigabit LAN 10/100/1000/2500 Mb/s)

– Supports Killer LAN Software

– Supports Killer DoubleShot™ Pro

– Supports Wake-On-LAN

– Supports Lightning/ESD Protection

– Supports Energy Efficient Ethernet 802.3az

– Supports PXE
Wireless LAN

– Killer AX1650x 802.11ax WiFi Module

– Supports IEEE 802.11a/b/g/n/ax

– Supports Dual-Band (2.4/5 GHz)

– Supports Killer WiFi6 802.11ax (2.4Gbps)

– 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology

– Supports Bluetooth 5.2 + High speed class II

– Supports MU-MIMO

– Supports Killer LAN Software

– Supports Killer DoubleShot™ Pro
Slots

AMD Ryzen series CPUs (Vermeer)

– 2 x PCI Express 4.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3))*

AMD Ryzen series CPUs (Matisse)

– 2 x PCI Express 4.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3))*

AMD Ryzen series APUs (Cezanne and Renoir)

– 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3))*

AMD Ryzen series CPUs (Pinnacle Ridge)

– 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3))*

AMD Ryzen series APUs (Picasso)

– 1 x PCI Express 3.0 x16 Slot (x8 (PCIE1))*

AMD X570 Chipset

– 1 x PCI Express 4.0 x16 Slot (x4 (PCIE4))*- 1 x PCI Express 4.0 x1 Slot

– Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™**

– Supports NVIDIA^® Quad SLI™ and SLI™***

– Supports NVIDIA^® NVLink™ with dual NVIDIA^® GeForce RTX series graphics cards***

– 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax PCIe WiFi module (on the rear I/O)

– 15μ Gold Contact in VGA PCIe Slot (PCIE1)

*When Picasso is installed, this motherboard supports single graphics card on either PCIE1 or PCIE4 only.

Supports NVMe SSD as boot disks**3-Way CrossFireX™ is only supported with Ryzen Series CPUs (Vermeer, Matisse, Cezanne, Renoir and Pinnacle Ridge).

*** NVIDIA^® NVLink™ Bridge does not come with the package. Please purchase it from NVIDIA^® if necessary.

This feature is only supported with Ryzen Series CPUs (Vermeer, Matisse, Cezanne, Renoir and Pinnacle Ridge).
Storage

– 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug

– 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer and Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir, Pinnacle Ridge and Picasso)*

– 1 x Hyper M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir, Pinnacle Ridge and Picasso)*

– 1 x Hyper M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir, Pinnacle Ridge and Picasso)*

*If M2_3 is occupied, PCIE4 slot will be disabled

Supports NVMe SSD as boot disks

NVMe SSD is not supported with AMD Athlon™ 3000G Processors

Supports ASRock U.2 Kit
Connector

– 1 x SPI TPM Header

– 1 x Power LED and Speaker Header

– 2 x RGB LED Headers*

– 2 x Addressable LED Headers**

– 1 x CPU Fan Connector (4-pin)***

– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****

– 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****

– 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)

– 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)

– 1 x Front Panel Audio Connector (15μ Gold Audio Connector)

– 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC R2.0 Card only)

– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)

– 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)

– 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)

– 1 x Dr. Debug with LED

– 1 x Power Button with LED

– 1 x Reset Button with LED

– 1 x Clear CMOS Button

*Support in total up to 12V/3A, 36W LED Strip

**Support in total up to 5V/3A, 15W LED Strip

***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

CPU_FAN2/WP_3A, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use.

CPU_FAN2/WP_3A supports the water cooler fan of maximum 3A (36W) fan power.
Rear Panel I/O

– 2 x Antenna Ports

– 1 x PS/2 Mouse/Keyboard Port

– 1 x HDMI Port

– 1 x Optical SPDIF Out Port

– 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)

– 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)

– 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)*

– 2 x USB 2.0 Ports (Supports ESD Protection)

– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

– 1 x Clear CMOS Button

– 1 x BIOS Flashback Button

– HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

*Ultra USB Power is supported on USB_12 ports.

ACPI wake-up function is not supported on USB_12 ports.
Software and UEFI

Software

– ASRock Motherboard Utility (A-Tuning)*

– ASRock Killer LAN Software*

– Razer Synapse 3**

UEFI

– ASRock Full HD UEFI

– ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.

**Razer Synapse 3 can be downloaded from razer.com/synapse-3.
Support CD

– Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories

– Quick Installation Guide, Support CD

– 4 x SATA Data Cables

– 1 x ASRock WiFi 2.4/5 GHz Antenna

– 1 x ASRock Screwdriver

– 3 x Screws for M.2 Sockets

– 2 x Standoffs for M.2 Sockets
Hardware Monitor

– Temperature Sensing: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans

– Fan Tachometer: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans

– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans

– Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans

– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, PREM VDDCR_SOC, +1.8V, VDDP
Form Factor

– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

– 2oz Copper PCB
OS

– Microsoft Windows^® 10 64-bit / 11 64-bit
Certifications

– FCC, CE

– ErP/EuP ready (ErP/EuP ready power supply is required)
