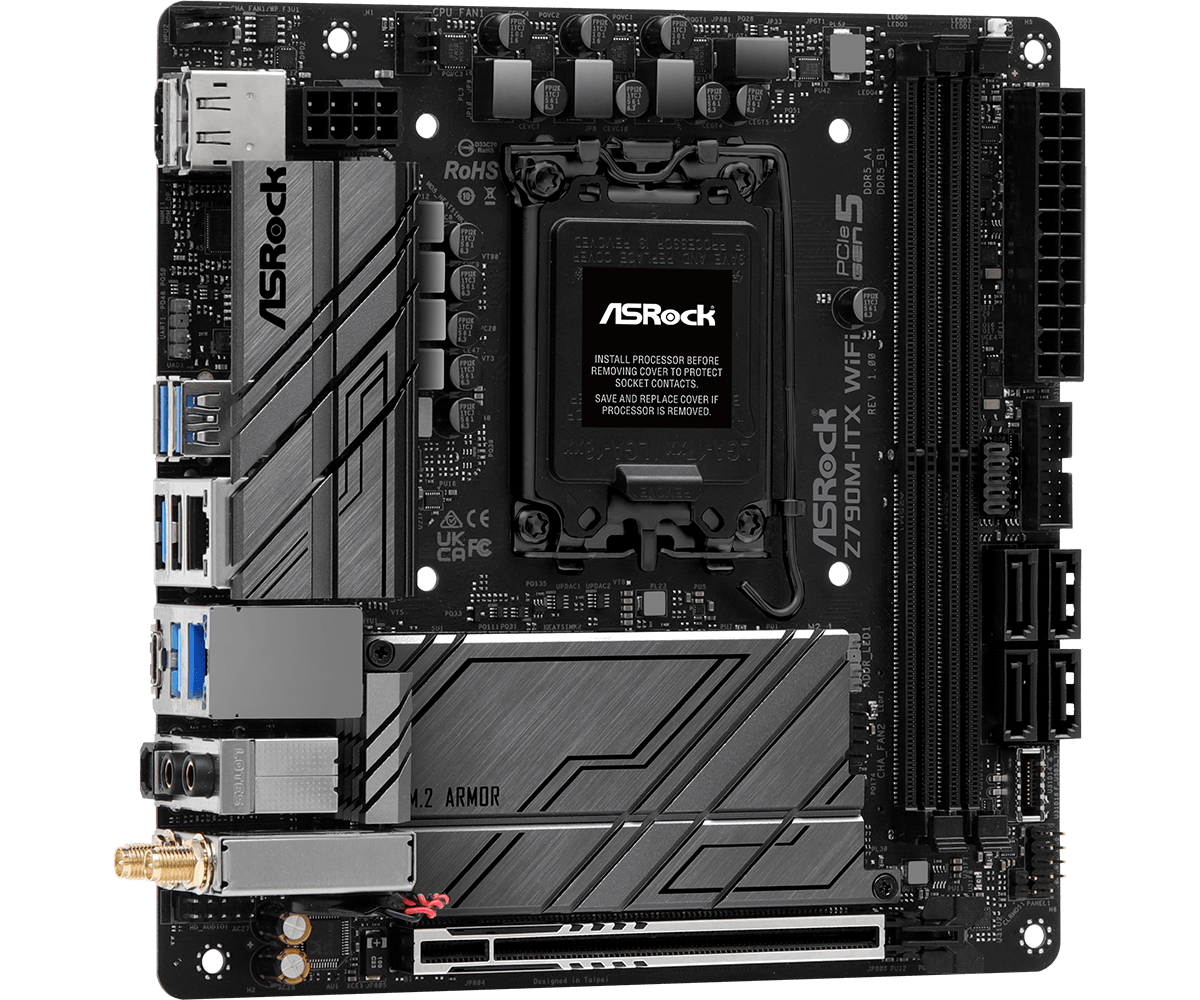

ASROCK Z790M-ITX WIFI (INTEL 12TH&13TH)
Original price was: ₹22,420.00.₹20,244.00Current price is: ₹20,244.00.
Chipset: Intel Z790
Socket: LGA1700
Memory Support: 2x DDR5 DIMM, up to 64GB
Expansion Slots: 1x PCIe 5.0 x16
Storage: 2x PCIe 4.0 M.2, 4x SATA3
Networking: Intel WiFi 6E, 2.5Gb Ethernet
USB Ports: USB 3.2 Gen2, USB 3.2 Gen1, Type-C
Other Features: Compact ITX form factor, reinforced PCIe slot
Out of stock
.png)
.png)
.png)
.png)
-
-
Unique FeatureSuperb Productivity
– PCIe Gen5 (Graphic)
– Dual Channel DDR5
Rock-Solid Durability
– 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT
– Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
Ultrafast Connectivity
– 2.5G LAN, 802.11ax Wi-Fi 6E Module
EZ Update
– ASRock Auto Driver Installer
-
CPU– Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
– Supports Intel® Hybrid Technology
– Supports Intel® Turbo Boost Max 3.0 Technology
– Supports Intel® Thermal Velocity Boost (TVB)
– Supports Intel® Adaptive Boost Technology (ABT)
-
Chipset– Intel® Z790
-
Memory– Dual Channel DDR5 Memory Technology
– 2 x DDR5 DIMM Slots
– Supports DDR5 non-ECC, un-buffered memory up to 7000+(OC)*
– Max. capacity of system memory: 128GB
– Supports Intel® Extreme Memory Profile (XMP) 3.0
*1DPC 1R Up to 7000+ MHz (OC), 5600 MHz Natively.1DPC 2R Up to 5200+ MHz (OC), 5200 MHz Natively.
-
BIOS– 128Mb AMI UEFI Legal BIOS with GUI support
-
Graphics– Intel® Xe Graphics Architecture (Gen 12)
– 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
– 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
– 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. -
Audio– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Nahimic Audio
-
LAN– 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Intel® I226V)
– 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V)
-
Wireless LAN– 802.11ax Wi-Fi 6E Module
– Supports IEEE 802.11a/b/g/n/ac/ax
– Supports Dual-Band 2×2 with extended 6GHz band support*
– 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
– Supports Bluetooth 5.3 + High speed class II
– Supports MU-MIMO
*Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.A 6GHz compatible router is required for 6E functionality.
-
SlotsCPU:
– 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
– 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
*Supports PCIe riser cards to extend one x16 slot to two x8 slotsSupports NVMe SSD as boot disks
-
StorageCPU:
– 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
– 4 x SATA3 6.0 Gb/s Connectors
*Supports Intel® Volume Management Device (VMD)Supports NVMe SSD as boot disks
-
RAID– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
– Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices** Requires additional M.2 NVMe expansion cards to support RAID 5
-
-
USB– 1 x USB 3.2 Gen2x2 Type-C (Rear)
– 1 x USB 3.2 Gen2x2 Type-C (Front)
– 4 x USB 3.2 Gen2 Type-A (Rear)
– 2 x USB 3.2 Gen1 (Front)
– 3 x USB 2.0 (1 Rear, 2 Front)
*All USB ports support ESD Protection -
Connector– 1 x eDP Signal Connector
– 1 x RGB LED Header*
– 1 x Addressable LED Header**
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
– 2 x Chassis Fan Connectors (4-pin)****
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
– 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)*****
*Supports in total up to 12V/3A, 36W LED Strip
**Supports in total up to 5V/3A, 15W LED Strip
***CPU_FAN1/WP supports the fan power up to 2A (24W).
CPU_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
****CHA_FAN1~2 support the fan power up to 1A (12W).
*****Actual speed depends on USB devices and extension cable in the chassis.
-
Rear Panel I/O– 2 x Antenna Ports
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 1 x Optical SPDIF Out Port
– 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
– 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
– 1 x USB 2.0 Port
– 2 x RJ-45 LAN Ports
– 1 x Line Out Jack (Gold Audio Jack)
– 1 x Microphone Input Jack (Gold Audio Jack)
-
Software and UEFISoftware
– ASRock Motherboard Utility (A-Tuning)
– ASRock Polychrome SYNC
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash
– ASRock Easy RAID Installer
*These utilities can be downloaded from ASRock Live Update & APP Shop. -
Accessories– 1 x User Manual
– 1 x I/O Shield
– 2 x SATA Data Cables
– 2 x ASRock WiFi 2.4/5/6 GHz Antennas
– 2 x Screws for M.2 Sockets
-
Form Factor– Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
– 8 Layer PCB
-
OS
– Microsoft Windows® 10 64-bit / 11 64-bit
*Windows® 10 only supports version 21H2 or later -
Certifications– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
