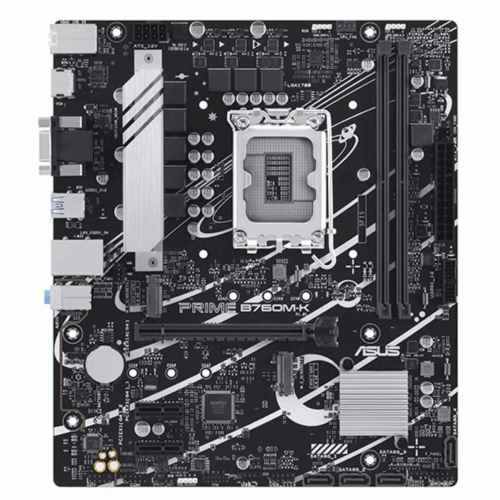

ASUS Prime B760M-K-CSM DDR5 Intel Motherboard
Original price was: ₹23,999.00.₹11,719.00Current price is: ₹11,719.00.
- Supports Intel® 12th, 13th & 14th Gen processors on the LGA1700 platform
- DDR5 memory support with speeds up to 8000 MT/s (OC) for enhanced performance
- Dual PCIe 4.0 M.2 slots provide fast storage and quicker application loading
- PCIe 4.0 x16 slot is ready for modern graphics cards
- Realtek 2.5Gb Ethernet delivers fast and reliable network connectivity
- ASUS 5X Protection III ensures long-term stability and component protection
- Aura Sync RGB enables synchronized lighting customization
- Ideal for business PCs, office desktops, productivity workstations, and mainstream PC builds.
ASUS Prime B760M-K-CSM DDR5 Intel Motherboard
The ASUS Prime B760M-K-CSM DDR5 is a dependable micro-ATX motherboard built for 12th, 13th, and 14th Gen Intel® Core™ processors. Powered by the Intel® B760 chipset, it supports DDR5 memory, PCIe 4.0, and dual M.2 NVMe SSDs for fast performance and efficient multitasking. Designed with ASUS 5X Protection III, 2.5Gb Ethernet, and ASUS Control Center Express (CSM), it is an excellent choice for business desktops, productivity systems, and DIY PC builds.
Key Features
- Supports Intel® 14th, 13th & 12th Gen Core™, Pentium® Gold, and Celeron® processors (LGA1700)
- Intel® B760 chipset with DDR5 memory support
- 2 × PCIe 4.0 M.2 slots for high-speed NVMe SSDs
- PCIe 4.0 x16 slot for next-generation graphics cards
- Realtek 2.5Gb Ethernet for high-speed wired networking
- ASUS 5X Protection III for enhanced durability and reliability
- Aura Sync RGB with Addressable Gen 2 RGB headers
- Comprehensive cooling with VRM heatsink, PCH heatsink, and Fan Xpert 2+
- ASUS Control Center Express (CSM) for IT management and system monitoring
Specifications
| Specification | Details |
|---|---|
| Model | ASUS Prime B760M-K-CSM DDR5 |
| Form Factor | Micro-ATX |
| Chipset | Intel® B760 |
| CPU Socket | LGA1700 |
| Processor Support | Intel® Core™ 14th/13th/12th Gen, Pentium® Gold & Celeron® |
| Memory | 2 × DDR5 DIMM, up to 96GB, up to 8000 MT/s (OC) |
| Expansion Slots | 1 × PCIe 4.0 x16, 2 × PCIe 4.0 x1 |
| Storage | 2 × M.2 PCIe 4.0 x4, 4 × SATA 6Gb/s |
| Display Outputs | HDMI® 2.1, VGA |
| Networking | Realtek 2.5Gb Ethernet |
| USB Ports | USB 3.2 Gen 1 (5Gbps), USB 2.0 |
| Audio | Realtek 7.1 HD Audio |
| RGB Support | Aura Sync RGB & Addressable Gen 2 Headers |
| Operating System | Windows® 11 / Windows® 10 (64-bit) |
