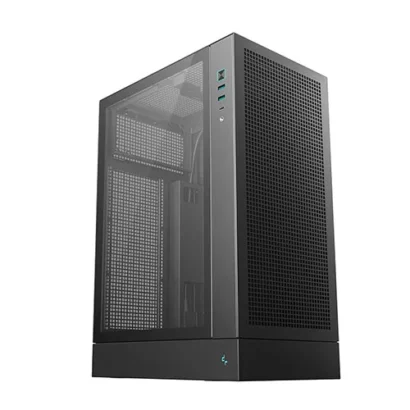

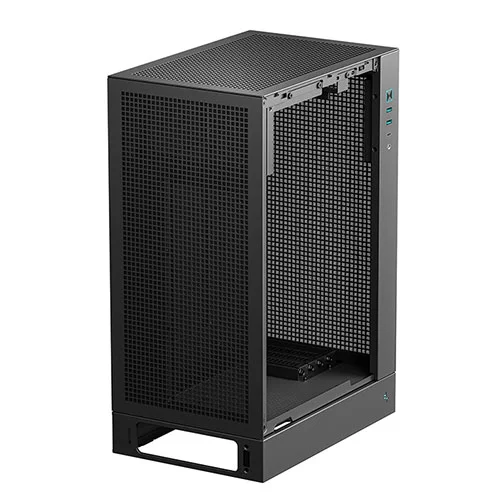

DeepCool CH170 Plus M-ATX Mini Tower Cabinet

Features

• Micro-ATX & Mini-ITX Support – Supports Micro-ATX and Mini-ITX motherboards, making it suitable for compact gaming and workstation builds.
• Compact Vertical Design – The vertical layout saves desk space while maintaining good internal component compatibility.
• High-Airflow Mesh Design – Multiple mesh panels provide airflow directly to the internal components, while dust filters on four sides help keep the system clean.
• Large 4-Slot GPU Support – Supports graphics cards up to 342mm long, 138mm wide and 75mm thick. With a top fan installed, GPU length is limited to 328mm.
• Direct GPU Installation – The GPU can be installed directly into the motherboard, helping the compact layout accommodate large graphics cards.
• 164mm CPU Cooler Clearance – Supports CPU air coolers up to 164mm in height, allowing the use of many large tower coolers.
• 240mm Liquid Cooling Support – Supports a 120mm/240mm radiator on the side and a 120mm radiator at the bottom.
• Flexible PSU Compatibility – Compatible with ATX, SFX and SFX-L power supplies, with a maximum PSU length of 140mm.
• Up to Four 120mm Fans – Fan mounting includes 1×120/140mm at the top with an SFX PSU, 2×120mm on the side and 1×120mm at the bottom.
• Modern Front I/O – Provides 2× USB 3.0, 1× USB Type-C Gen2 and 1× hybrid Audio/Mic jack for everyday connectivity.

Specifications
