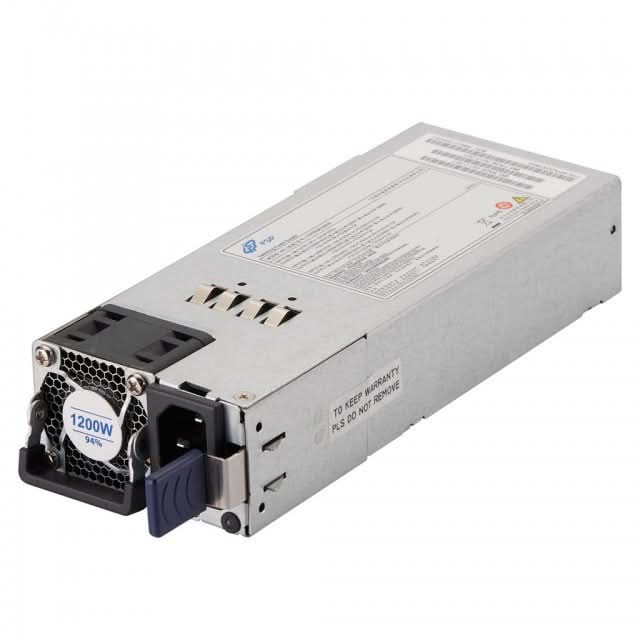

FSP 1200W CRPS PLATINUM POWER MODULE SMPS
Original price was: ₹26,999.00.₹20,399.00Current price is: ₹20,399.00.
- Enterprise-class 1200W redundant power module.
- 80 PLUS Platinum efficiency reduces operating costs.
- CRPS 2.0 compliant for modern server infrastructure.
- PMBus-enabled intelligent power monitoring.
- Reliable 24/7 continuous operation for mission-critical environments.
- Advanced safety protections ensure maximum hardware security.
- Compact, hot-swappable design simplifies maintenance.
- Suitable for high-density server racks and industrial applications
FSP 1200W CRPS Platinum Power Module SMPS
The FSP 1200W CRPS Platinum Power Module SMPS (FSP1200-20FM) is a high-performance Common Redundant Power Supply (CRPS) 2.0 module engineered for enterprise servers, storage systems, data centers, industrial workstations, and networking equipment. Delivering 1200W of continuous power, it is 80 PLUS Platinum certified, providing up to 94% power efficiency to reduce energy consumption and heat generation. The integrated PMBus 1.2 interface enables intelligent power monitoring and communication with compatible motherboards or management systems, making it ideal for mission-critical applications requiring high reliability and continuous uptime. Designed for hot-swappable redundant power systems, the module supports uninterrupted operation while offering comprehensive protection features for maximum system safety and stability.
Key Features
- 1200W Continuous Output Power for enterprise-grade systems.
- 80 PLUS Platinum Certification with up to 94% efficiency.
- CRPS 2.0 Standard compliant for redundant server power applications.
- PMBus 1.2 Support for digital power monitoring and management.
- Hot-swappable design for easy maintenance in redundant systems.
- Wide AC input range (90–264VAC) for global deployment.
- Low ripple and noise for stable power delivery.
- Supports operation at altitudes up to 5,000 meters.
- Operating temperature range of 0°C to 55°C.
- High reliability with MTBF up to 250,000 hours.
- Built-in protection against Over Current (OCP), Over Voltage (OVP), Over Temperature (OTP), and Short Circuit (SCP).
- Resettable power shutdown for enhanced system safety.
Specifications
| Specification | Details |
|---|---|
| Brand | FSP |
| Model | FSP1200-20FM |
| Form Factor | CRPS 2.0 Redundant Power Module |
| Output Power | 1200W Continuous |
| Efficiency | 80 PLUS Platinum (Up to 94%) |
| Input Voltage | 90–264 VAC |
| Input Frequency | 47–63 Hz |
| PMBus | PMBus 1.2 |
| Operating Temperature | 0°C to 55°C |
| Operating Altitude | Up to 5,000 meters |
| MTBF | 250,000 Hours (Typical) |
| Protection Features | OCP, OVP, OTP, SCP, Resettable Shutdown |
| Compliance | CB 62368-1, CB 60950-1, EMC Standards |
Applications / Uses
The FSP 1200W CRPS Platinum Power Module is designed for demanding computing environments, including:
- Enterprise servers
- Data centers
- Cloud computing infrastructure
- Storage servers and NAS/SAN systems
- Industrial automation systems
- High-performance workstations
- Telecommunications equipment
- Network appliances
- AI and HPC server platforms
- Redundant power systems requiring continuous uptime
