FSP 2000W PLATINUM CRPS POWER MODULES SMPS
Original price was: ₹39,999.00.₹31,199.00Current price is: ₹31,199.00.
- High-density 2000W CRPS 2.0 redundant power module.
- 80 PLUS Platinum efficiency for reduced power consumption and operating costs.
- PMBus-enabled intelligent monitoring and remote diagnostics.
- Supports hot-swappable 1+1 and N+1 redundancy for continuous operation.
- Compatible with both AC and HVDC input power systems.
- Engineered for 24/7 mission-critical applications.
- High reliability with 250K-hour MTBF.
- Compact CRPS form factor optimized for high-density server installations.
- Advanced protection circuitry safeguards critical IT infrastructure.
- Ideal for enterprise, cloud, AI, and industrial computing environments.
Out of stock

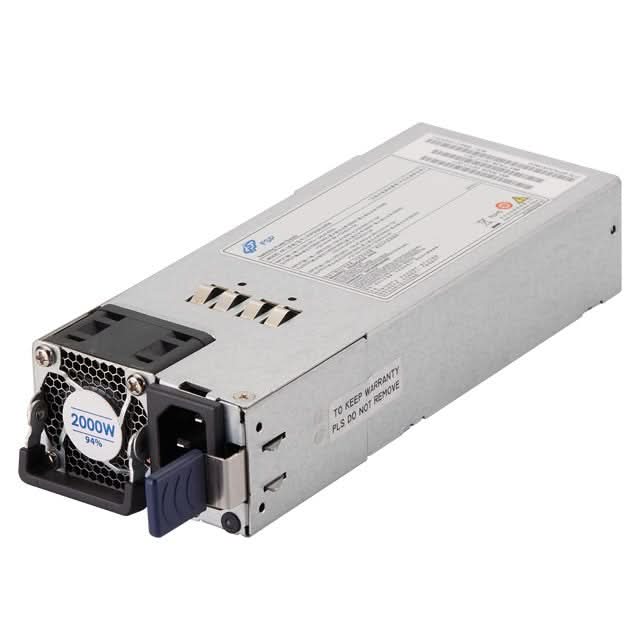

FSP 2000W Platinum CRPS Power Module SMPS
The FSP 2000W Platinum CRPS Power Module SMPS (FSP2000-20FM) is an enterprise-grade Common Redundant Power Supply (CRPS 2.0) engineered for high-performance servers, cloud computing platforms, AI infrastructure, telecommunications systems, and industrial automation. Delivering up to 2000W of continuous output power, it is 80 PLUS Platinum certified, achieving up to 94% power efficiency to reduce energy consumption, lower operating costs, and minimize heat generation.
Designed for 1+1 and N+1 redundant configurations, the FSP2000-20FM features hot-swappable capability, allowing power modules to be replaced without shutting down the system. The integrated PMBus 1.2 interface enables real-time power monitoring, diagnostics, and remote management, making it an ideal solution for mission-critical applications that demand maximum reliability and continuous uptime. The module also supports HVDC input, complies with global safety and EMC standards, and is optimized for deployment in modern data centers and enterprise environments.
Key Features
- 2000W continuous output power for enterprise and AI workloads.
- 80 PLUS Platinum certified with up to 94% efficiency.
- CRPS 2.0 compliant for redundant server power architectures.
- PMBus 1.2 support for intelligent power monitoring and management.
- Hot-swappable design for uninterrupted maintenance and high availability.
- Wide AC input range (90–264VAC) with optional 180–310V HVDC input.
- Low input total harmonic distortion (iTHD) for improved power quality.
- Low ripple and noise for stable and reliable operation.
- Designed to operate at 0°C to 55°C.
- Supports installations up to 5,000 meters above sea level.
- 250,000-hour MTBF for long-term operational reliability.
- Comprehensive protection including Over Current (OCP), Over Voltage (OVP), Over Temperature (OTP), Short Circuit Protection (SCP), and Resettable Power Shutdown.
Specifications
| Specification | Details |
|---|---|
| Brand | FSP |
| Model | FSP2000-20FM |
| Form Factor | CRPS 2.0 Redundant Power Module |
| Rated Output Power | 2000W Continuous |
| Efficiency | 80 PLUS Platinum (Up to 94%) |
| Input Voltage | 90–264 VAC or 180–310 VDC (HVDC) |
| Input Frequency | 47–63 Hz |
| Main Output | +12V DC |
| Standby Output | +12VSB |
| Maximum Output Current | Up to 163.6A (@220–264VAC) |
| PMBus | PMBus 1.2 |
| Operating Temperature | 0°C to 55°C |
| Operating Altitude | Up to 5,000 meters |
| MTBF | 250,000 Hours (SR-332, 75% load @55°C) |
| Cooling | Intelligent Fan Cooling |
| Dimensions | 185 × 73.5 × 39 mm |
| Protection Features | OCP, OVP, OTP, SCP, Resettable Shutdown |
| Hot Swap Support | Yes |
| Safety Standards | CB 62368-1, CB 60950-1, UL, CE, FCC, TÜV, RoHS |
Applications / Uses
The FSP 2000W Platinum CRPS Power Module is designed for:
- Enterprise rack servers
- AI and GPU computing platforms
- Cloud and hyperscale data centers
- High-performance computing (HPC) clusters
- Storage systems (NAS/SAN)
- Telecommunications infrastructure
- Networking switches and appliances
- Industrial automation systems
- Edge computing platforms
- Mission-critical redundant power systems requiring continuous uptime, high efficiency, and reliable power delivery.
