GAMDIAS HELIOS M1 850 WATT BRONZE SMPS
Original price was: ₹19,999.00.₹5,850.00Current price is: ₹5,850.00.
SPECIFICATIONS
Model
HELIOS M1-850B
POWER
TypeATX12V v2.4
EfficiencyMeet 80 PLUS Bronze efficiency
Power Factor CorrectionAPFC with PF value of 0.99
Support MB SyncNo
Dimension (L x W x H)140 x 150 x 86 mm
Support C6/C7 power stateYes

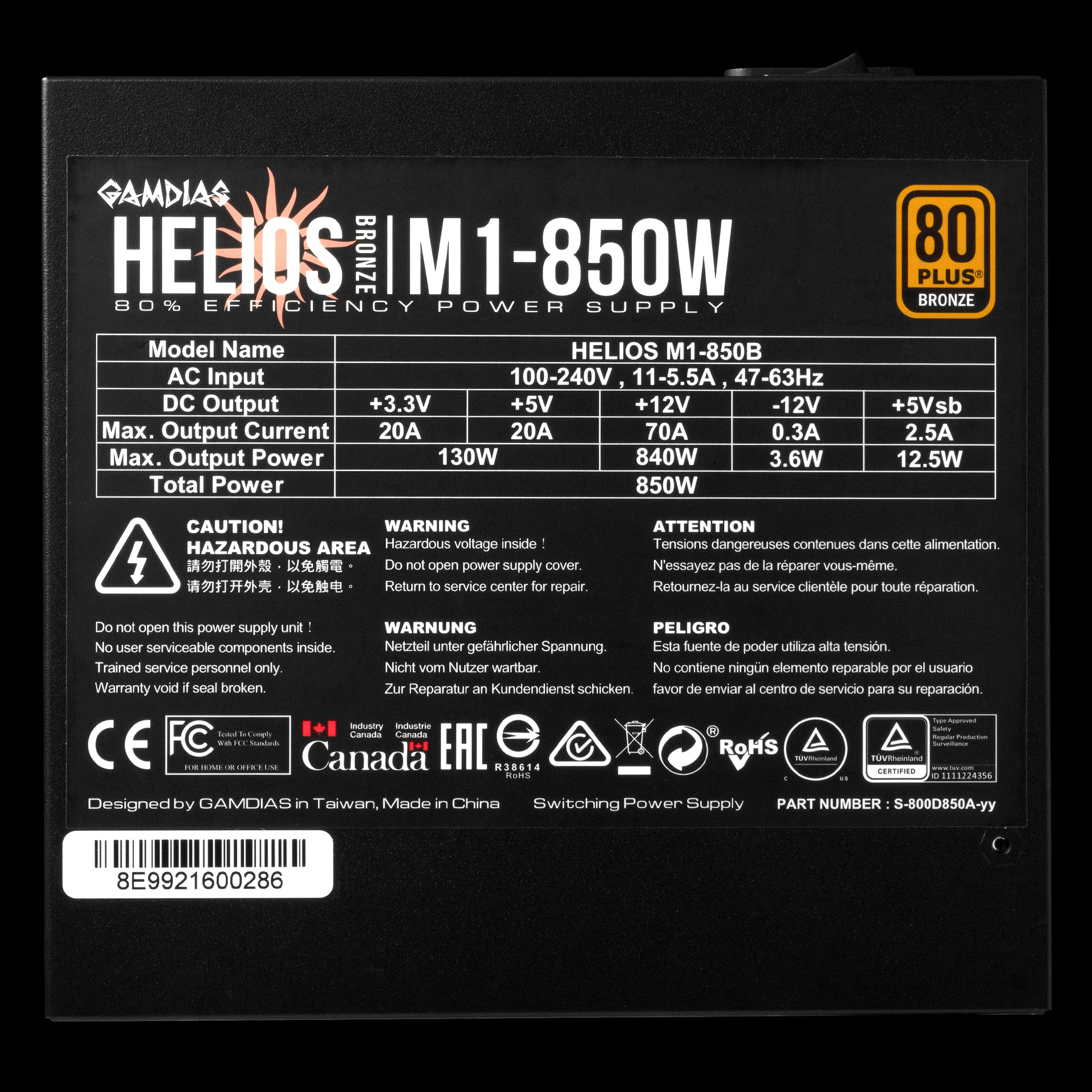

AC Input100-240V / 5.5-11A / 47-63Hz
DC Output+3.3V / +5V / +12V / -12V / +5Vsb
Max. Output Current20A / 20A / 70A / 0.3A / 2.5A
Max. Output Power130W / 840W / 3.6W / 12.5W
Total Power850W
ProtectionOVP / UVP / OPP / OCP / SCP / SP / ICP
Main Power1 (20+4 Pin)
CPU2 (4+4 Pin)
PCI-E4 (6+2 Pin)
SATA6 (5 Pin)
Molex4 (4 Pin)
ModularNon Modular
Flat CableYes
Silent ModeNo
DC to DCYes
