Gigabyte A520M K V2
Original price was: ₹8,999.00.₹5,099.00Current price is: ₹5,099.00.
-
Chipset & Socket: AMD A520 chipset with AM4 socket, compatible with Ryzen 3000 / 4000 G‑Series / 5000 series processors
-
Memory: 4× DDR4 DIMM slots supporting up to 128 GB DDR4 RAM in dual‑channel mode
-
Expansion: PCIe 3.0 x16 slot for graphics cards plus PCIe x1 slot for additional expansion
-
Storage: 1× M.2 slot (NVMe/SATA) and 4× SATA 6 Gb/s ports for SSD and HDD storage
-
Networking: Gigabit LAN for reliable wired connectivity
-
Display Outputs: HDMI + D‑Sub (for CPUs/APUs with integrated graphics)
-
Audio: High‑Definition Audio with Realtek codec
-
Form Factor: Micro‑ATX, ideal for basic and budget desktop builds

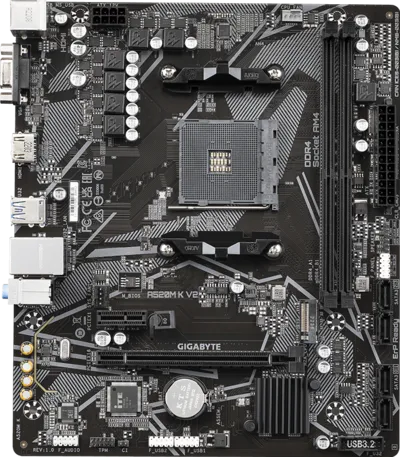

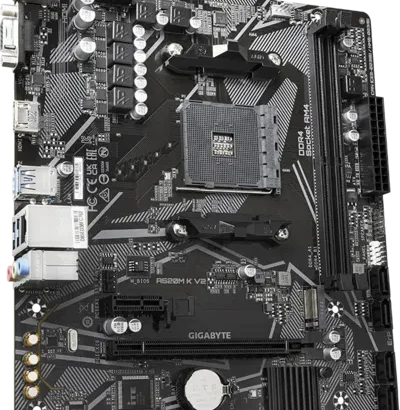

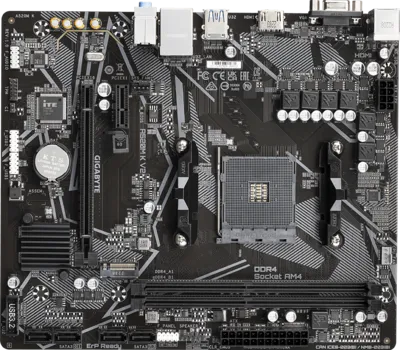

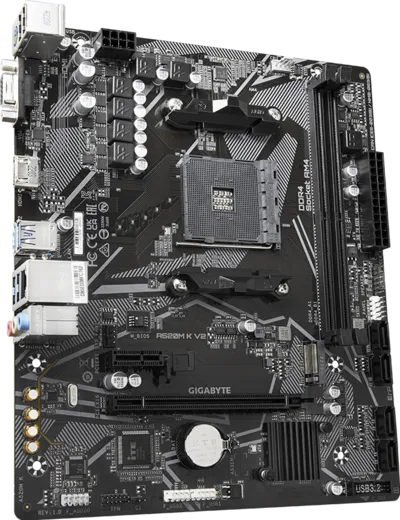

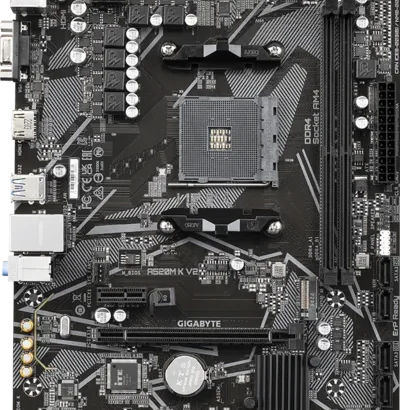

Gigabyte A520M K V2
Gigabyte A520M K V2
AMD A520 Ultra Durable Motherboard with GbE LAN with Bandwidth Management, PCIe 3.0 x4 M.2, Smart Fan 5, Anti-Sulfur Resistors Design
Key Features
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
- PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
- GbE LAN with Bandwidth Management
- 8-Channel HD Audio with High Quality Audio Capacitors
- Rear HDMI and D-sub for Multi-display Support
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use.
CPU
- AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
(Please refer “CPU Support List” for more information.)
Chipset
- AMD A520
Memory
- 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
- Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)
Expansion Slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface
CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
Chipset:
- 4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
