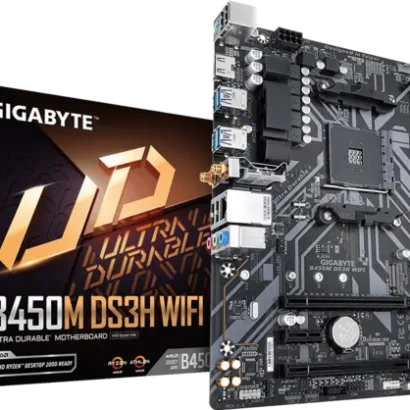

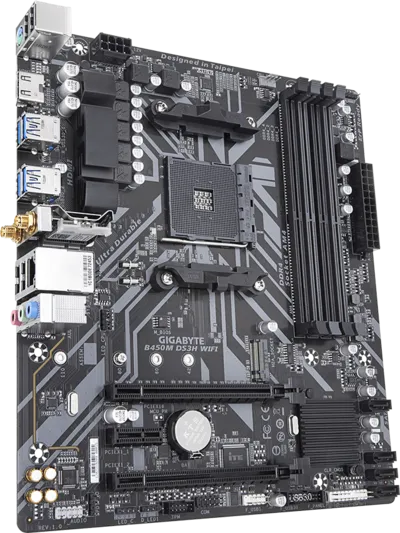

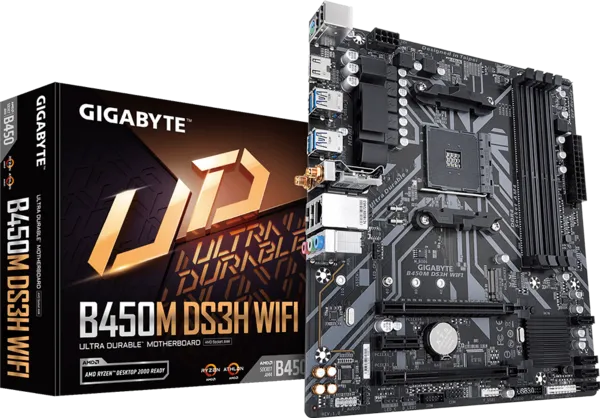

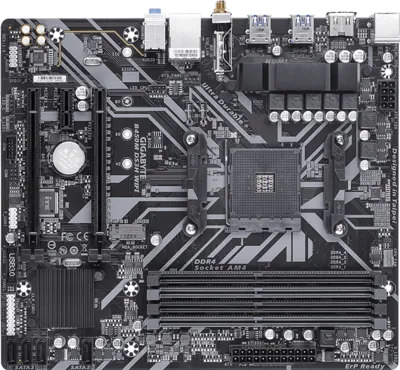

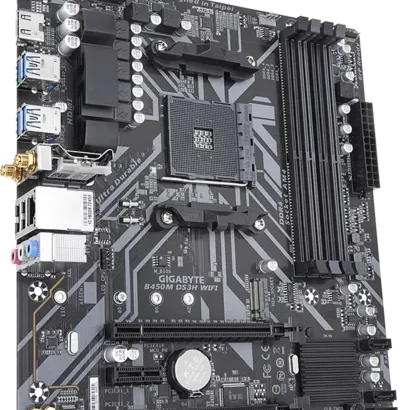

Gigabyte B450M DS3H WIFI
Original price was: ₹12,900.00.₹8,289.00Current price is: ₹8,289.00.
-
Socket & Chipset: AMD AM4 socket with B450 chipset — supports a wide range of Ryzen processors (5000 / 3000 / 2000 / 1000 series) and Athlon APUs.
-
Memory: 4× DDR4 DIMM slots supporting up to 128 GB DDR4 (dual‑channel with XMP support).
-
Network & Wireless: Built‑in 802.11 ac Dual‑Band Wi‑Fi + Bluetooth and Gigabit LAN for both wireless and wired networking.
-
Graphics Outputs: HDMI port for integrated graphics (dependent on CPU).
-
Expansion: PCIe 3.0 x16 slot for discrete GPU + additional PCIe slots for expansion cards.
-
Storage: 1× M.2 slot (NVMe/SATA) & 4× SATA 6 Gb/s ports for fast and versatile storage options.
-
Audio: High‑definition audio with Realtek codec and S/PDIF support.
-
Extras: RGB Fusion 2.0 lighting support (ARGB & RGB headers) and FAN control utilities for system customization.
Gigabyte B450M DS3H WIFI
Gigabyte B450M DS3H WIFI
AMD B450 Ultra Durable Motherboard with Realtek® GbE LAN with cFosSpeed, PCIe Gen3 x4 M.2, RGB FUSION 2.0, Intel® Dual Band 802.11ac WIFI, CEC 2019 ready
Key Features
- Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Intel® Dual Band 802.11ac WIFI & BT 4.2
- Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
- High Quality Audio Capacitors and Audio Noise Guard Design
- RGB FUSION 2.0 with Addressable RGB & RGB LED Strips Support
- Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- APP Center Including EasyTune™ and Cloud Station™ Utilities
- CEC 2019 Ready, Save Power with a Simple Click
CPU
- AM4 Socket: Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
(Please refer “CPU Support List” for more information.)
Chipset
- AMD B450
Memory
- 4 x DDR4 DIMM sockets supporting up to 128 GB of system memory
- Dual channel memory architecture
- Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)
Expansion Slots
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 3.0 standard.) - 1 x PCI Express x16 slot, running at x1 (PCIEX1_2)
- 1 x PCI Express x1 slot
(The PCIEX1_1 and PCIEX1_2 slots conform to PCI Express 2.0 standard.)
(Note) Actual support may vary by CPU.
Storage Interface
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support)
* Actual support may vary by CPU.
* Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU. - 4 x SATA 6Gb/s connectors
- Support for RAID 0, RAID 1, and RAID 10
* Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 connector.
