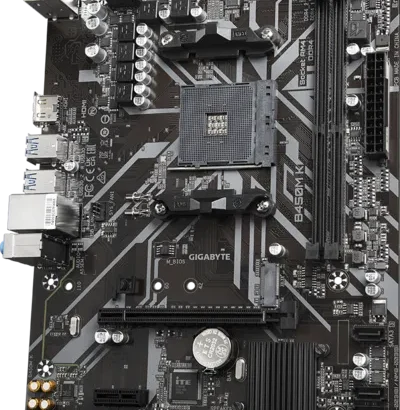

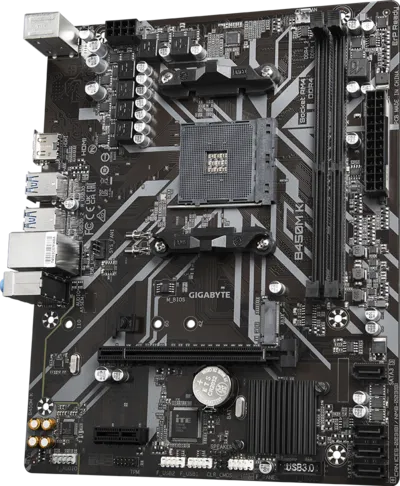

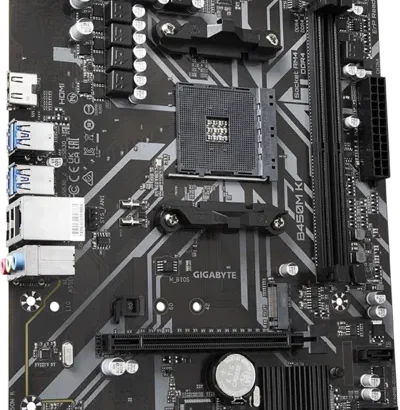

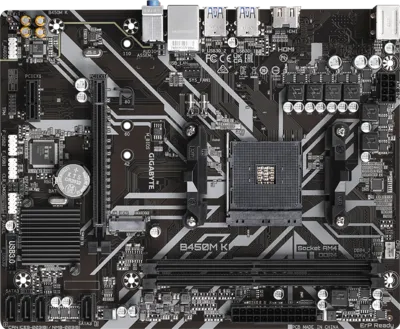

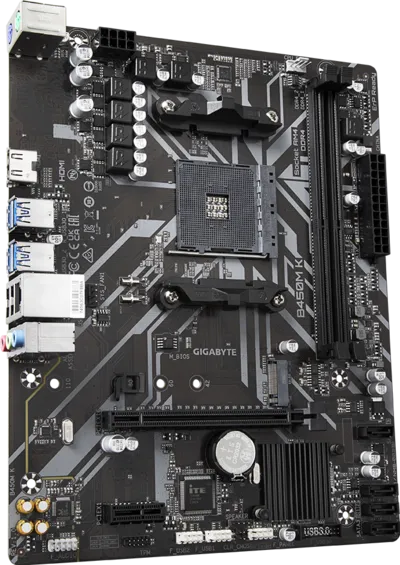

Gigabyte B450M K
Original price was: ₹9,993.00.₹5,929.00Current price is: ₹5,929.00.
-
Chipset & Socket: AMD B450 chipset with AM4 socket, supporting Ryzen 1000/2000/3000/4000 G‑Series and some 5000 series processors
-
Memory: 4× DDR4 DIMM slots with dual‑channel support, up to 128 GB RAM
-
Expansion: PCIe 3.0 x16 slot for graphics cards plus additional PCIe x1 slot for expansion
-
Storage: 1× M.2 slot (NVMe/SATA) and 4× SATA 6 Gb/s ports for SSD/HDD storage
-
Networking: Gigabit LAN for stable wired internet
-
Display Outputs: HDMI + D‑Sub for integrated graphics support (with compatible CPU)
-
Audio: High‑Definition Audio (Realtek codec) with standard onboard outputs
-
Form Factor: Micro‑ATX, suitable for compact budget PC builds
Gigabyte B450M K
Gigabyte B450M K
AMD B450 Ultra Durable Motherboard with GbE LAN and Bandwidth Management, PCIe Gen3 x4 M.2, Anti-Sulfur Resistor Design
Key Features
- Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
- GbE LAN with Bandwidth Management
- 8-Channel HD Audio with High Quality Audio Capacitors
- Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers
- GIGABYTE APP Center, Simple and Easy Use
CPU
- AMD Socket AM4, support for: AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 1st Generation AMD Ryzen™ processors/ 2nd Generation Ryzen™ with Radeon™ Vega Graphics processors/ 1st Generation Ryzen™ with Radeon™ Vega Graphics processors/ Athlon™ with Radeon™ Vega Graphics Processors
(Please refer “CPU Support List” for more information.)
Chipset
- AMD B450
Memory
- Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules
- 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)
Expansion Slots
- CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16*
* Actual support may vary by CPU. - Chipset: 1 x PCI Express x1 slot, supporting PCIe 2.0 and running at x1
Storage Interface
- 1 x M.2 connector (Socket 3, M key, type 22110/2280/2260/2242 SATA and PCIe 3.0 x4/x2(Note) SSD support)
* Refer to “2-7 Internal Connectors,” for the installation notices for the M.2 connector. - 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
(Note) Supports only M.2 SATA SSDs when using an Athlon™ with Radeon™ Vega Graphics Processors.
