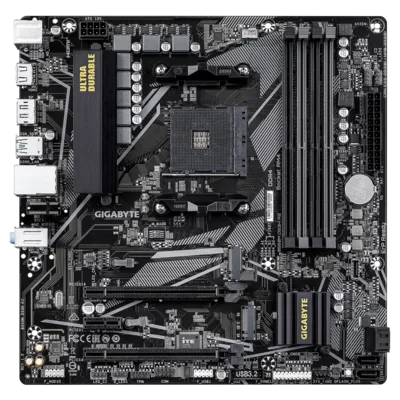

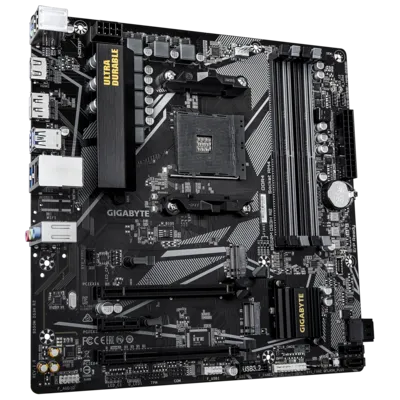

GIGABYTE B550M DS3H R2
Original price was: ₹9,399.00.₹8,759.00Current price is: ₹8,759.00.
- AMD B550 Chipset with support for AMD Ryzen 5000, 4000 G-Series, and 3000 Series processors.
- Micro-ATX Form Factor – Compact design suitable for a wide range of PC cases.
- PCIe 4.0 Support for next-generation graphics cards and NVMe SSDs (with compatible Ryzen CPUs).
- 4 DDR4 DIMM Slots supporting up to 128GB of memory.
- Dual M.2 Connectors for high-speed NVMe SSD storage.
- Smart Fan 5 Technology with multiple temperature sensors and hybrid fan headers.
- Ultra Durable Components for enhanced reliability and longevity.
- High-Speed USB Connectivity, including USB 3.2 Gen 1 ports.
- Realtek Gigabit LAN for stable wired networking.
- RGB Fusion Support for customizable RGB lighting setups.
GIGABYTE B550M DS3H R2
GIGABYTE B550M DS3H R2
The Gigabyte B550M DS3H AC R2 Motherboard is a Micro-ATX motherboard built on the AMD B550 chipset and designed for AMD Ryzen AM4 processors. It offers a balanced combination of performance, expandability, and affordability, making it suitable for gaming PCs, content creation systems, and everyday productivity builds. With PCIe 4.0 support, dual M.2 slots, high-speed DDR4 memory support, and modern connectivity options, it provides a solid foundation for current and future Ryzen-based systems.
KEY FEATURES
- AMD Socket AM4：Supports AMD Ryzen™ 5000 / 4000 / 3000 Series Processors
- Digital 5+3 phases VRM solution
- Dual Channel DDR4：4*DIMMs
- EZ-Latch：PCIe slots with Quick Release Design
- Ultra-Fast Storage：2*M.2 slots, including PCIe 4.0 x1
- Efficient Thermal：VRM Thermal Armor Advanced
- Fast Networking：GbE LAN
- Extended Connectivity：HDMI, Displayport
- PCIe UD Slot：PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
CPU
AMD Socket AM4, support for:
AMD Ryzen™ 5000 G-Series Processors/
AMD Ryzen™ 5000 Series Processors/
AMD Ryzen™ 4000 G-Series Processors/
AMD Ryzen™ 3000 G-Series Processors/
AMD Ryzen™ 3000 Series Processors
(Go to GIGABYTE’s website for the latest CPU support list.)
Chipset
AMD B550
Memory
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
