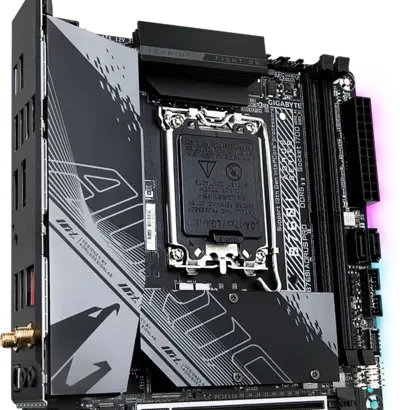

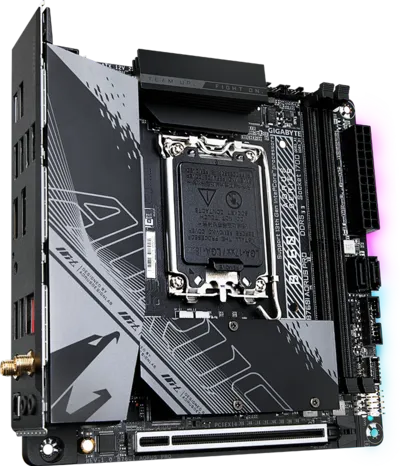

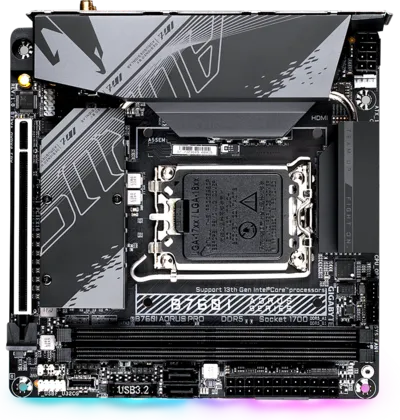

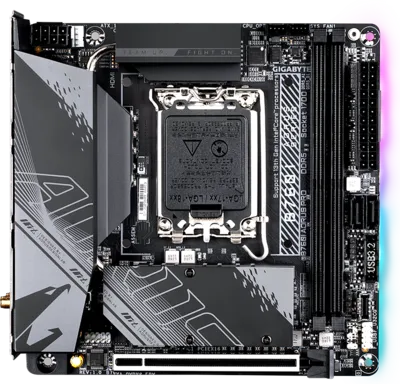

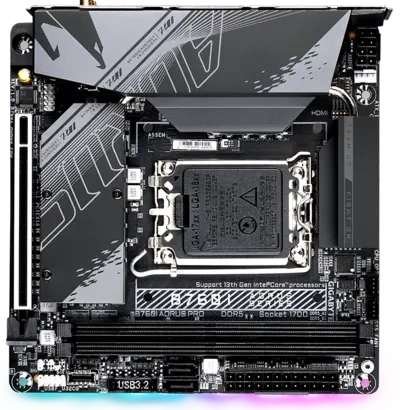

Gigabyte B760I AORUS PRO
Original price was: ₹46,299.00.₹24,484.00Current price is: ₹24,484.00.
- Supports Intel® 14th, 13th, and 12th Gen Core™, Pentium® Gold & Celeron® processors on the LGA 1700 socket with Intel® B760 chipset for solid performance in a compact build.
- Mini-ITX form factor ideal for small-form-factor PCs while still offering premium features.
- Dual-channel DDR5 memory support with 2 DIMM slots (up to ~128 GB) and XMP profile compatibility for fast system memory.
- PCIe 4.0 x16 slot for a full-length graphics card or other high-speed expansion.
- Two M.2 PCIe 4.0 x4 slots for high-speed NVMe SSD storage (front and back).
- Intel® Wi-Fi 6E and Bluetooth 5.3 for fast wireless connectivity.
- Intel® 2.5 GbE LAN for reliable high-speed wired networking.
- Rear I/O includes USB-C 10 Gb/s, USB-C Gen1, USB-A ports, HDMI 2.1, and DisplayPort for broad connectivity.
- Advanced thermal design with extended heatsinks and integrated I/O shield for better cooling.
- Smart Fan 6 with multiple temperature sensors and fan control options for optimized cooling.
- Q-Flash Plus lets you update BIOS without CPU/memory installed
Out of stock
Gigabyte B760I AORUS PRO
Gigabyte B760I AORUS PRO
Key Features
- Supports Intel® Core™ 14th/ 13th /12th processors
- Unparalleled Performance：Direct 8+1+1 Phases Digital VRM Solution
- Dual Channel DDR5：2*DIMMs with XMP 3.0 Memory Module Support
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design：Extended MOSFET Heatsink and Multi-Layered PCH M.2 Heatsink, Aluminum Baseplate
- Fast Networks：Intel® 2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity：Front USB3.2 Gen 1 USB-C®, Rear USB-C® 10Gb/s, DP, HDMI
- RGB FUSION：Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
CPU
- LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
- L3 cache varies with CPU
* Please refer to “CPU Support List” for more information.
Chipset
- Intel® B760 Express Chipset
Memory
- Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
- 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
Expansion Slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Storage Interface
CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 2 x SATA 6Gb/s connectors
RAID 0 and RAID 1 support for SATA storage devices
USB
Chipset:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports on the back panel
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x CPU fan/water cooling pump header
- 1 x system fan header
- 1 x addressable LED strip header
- 1 x RGB LED strip header
- 2 x M.2 Socket 3 connectors
- 2 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x speaker header
- 1 x USB Type-C® header, with USB 3.2 Gen 1 support
- 1 x USB 3.2 Gen 1 header
- 1 x USB 2.0/1.1 header
- 1 x reset jumper
- 1 x Clear CMOS jumper
- 1 x chassis intrusion header
Back Panel Connectors
- 1 x USB Type-C® port, with USB 3.2 Gen 2 support
- 1 x USB 3.2 Gen 2 Type-A port (red)
- 4 x USB 3.2 Gen 1 ports
- 2 x USB 2.0/1.1 ports
- 1 x DisplayPort
- 1 x HDMI port
- 1 x Q-Flash Plus button
- 1 x RJ-45 port
- 2 x SMA antenna connectors (2T2R)
- 1 x optical S/PDIF Out connector
- 2 x audio jacks
I/O Controller
- iTE® I/O Controller Chip
H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
- 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
- Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. - Support for Q-Flash
- Support for Q-Flash Plus
