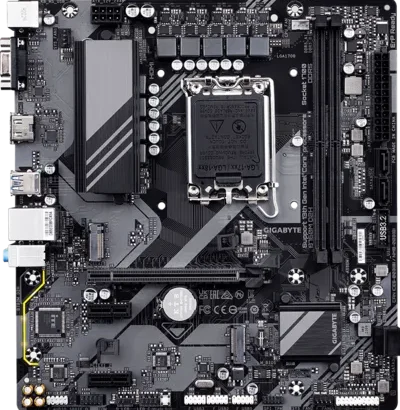

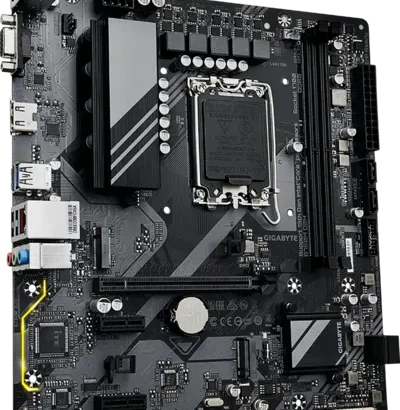

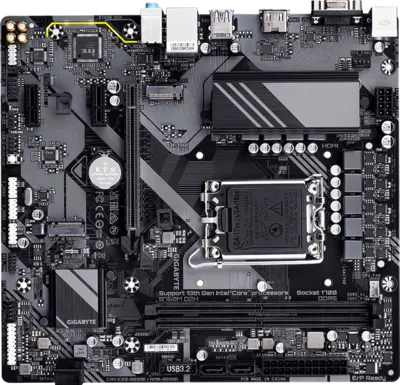

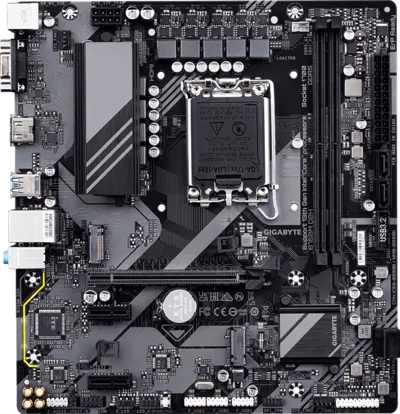

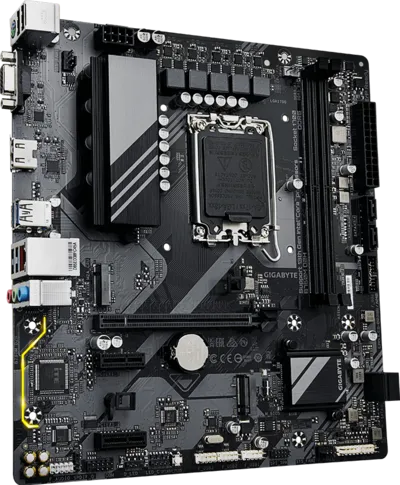

Gigabyte B760M D2H
Original price was: ₹20,323.00.₹11,499.00Current price is: ₹11,499.00.
- Supports Intel® 14th, 13th, and 12th Gen Core™, Pentium® Gold, and Celeron® processors on the LGA1700 socket with Intel® B760 Express chipset for solid mainstream performance.
- Dual-channel DDR5 memory support with 2 DIMM slots (up to 128 GB) and XMP profile compatibility for fast system memory.
- PCIe 4.0 x16 slot for graphics cards and two PCIe x1 slots for expansion cards.
- Two M.2 PCIe 4.0 x4 slots plus 4× SATA 6 Gb/s ports for high-speed SSD and HDD storage.
- 2.5 GbE LAN for stable wired networking.
- Rear video support with D-Sub and HDMI (HDMI 2.1) for integrated GPU output (when using CPU with iGPU).
- 6+2+1 phase digital VRM design and Smart Fan support for efficient power delivery and cooling.
- Q-Flash Plus lets you update BIOS without CPU or RAM installed.
- Micro-ATX form factor ideal for compact and versatile PC builds.
Out of stock
Gigabyte B760M D2H
Gigabyte B760M D2H
Key Features
- Supports Intel® Core™ 14th/ 13th /12th processors
- Unparalleled Performance：Hybrid 6+2+1 Phases Digital VRM Solution
- Dual Channel DDR5：2*DIMMs XMP Memory Module Support
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
- EZ-Latch：PCIe 4.0×16 Slot with Quick Release Design
- Fast Networks：2.5GbE LAN
- Extended Connectivity：HDMI, D-Sub
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
CPU
- LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
- L3 cache varies with CPU
(Please refer “CPU Support List” for more information.)
Chipset
- Intel® B760 Express Chipset
Memory
- Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
- 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)
Expansion Slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset:
- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Storage Interface
CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
Chipset:
- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 2 x system fan headers
- 1 x addressable LED strip header
- 1 x RGB LED strip header
- 2 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 1 x USB 3.2 Gen 1 header
- 3 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only
- 1 x serial port header
- 1 x Q-Flash Plus button
- 1 x reset jumper
- 1 x Clear CMOS jumper
Back Panel Connectors
- 1 x PS/2 keyboard/mouse port
- 1 x D-Sub port
- 1 x HDMI port
- 4 x USB 3.2 Gen 1 ports
- 2 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks
I/O Controller
- iTE® I/O Controller Chip
H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
- 1 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
- Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. - Support for Q-Flash
- Support for Q-Flash Plus
