Gigabyte B760M D3HP DDR4 Motherboard
Original price was: ₹18,999.00.₹12,999.00Current price is: ₹12,999.00.

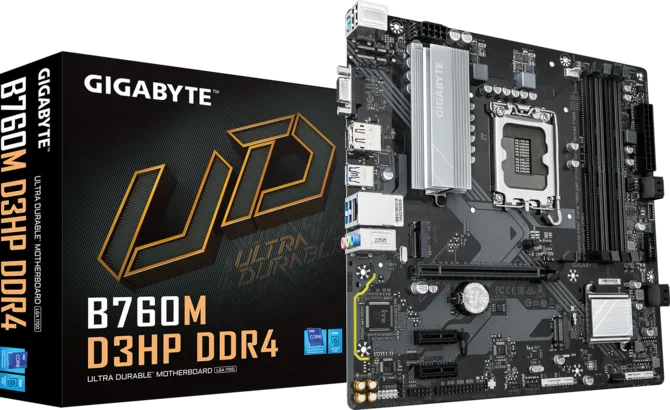

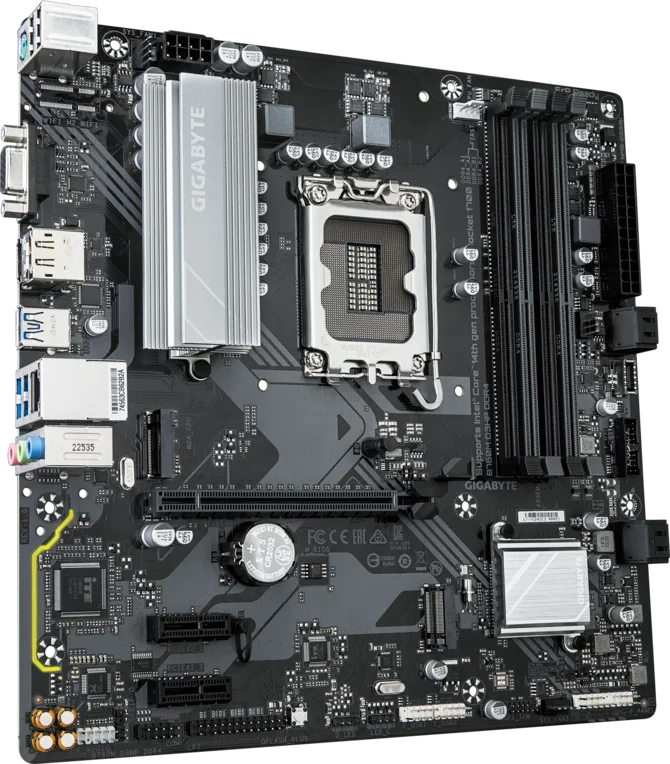

The Gigabyte B760M D3HP DDR4 Micro-ATX Motherboard is a versatile LGA1700 motherboard designed for Intel 14th, 13th and 12th Gen processors. It supports high-speed DDR4 memory, PCIe 4.0 graphics, dual PCIe 4.0 M.2 storage and 2.5GbE LAN for responsive gaming and everyday performance. With Smart Fan 6 cooling control and a compact Micro-ATX design, it is an excellent choice for modern gaming, home and productivity PCs.
Out of stock
Gigabyte B760M D3HP DDR4 Motherboard
Features
- Intel B760 Chipset: Supports Intel® Core™ 14th, 13th and 12th Gen processors with the LGA1700 socket.
- Micro-ATX Form Factor: Compact design provides a good balance of expansion and space efficiency.
- Dual-Channel DDR4: 4 DDR4 DIMM slots support up to 128GB of system memory.
- PCIe 4.0 x16 Graphics: Provides high-speed connectivity for modern graphics cards.
- PCIe 4.0 M.2 Storage: Supports fast NVMe SSDs for quicker boot times and application loading.
- 2.5GbE LAN: High-speed wired networking provides reliable connectivity for gaming, streaming and large file transfers.
- High-Definition Audio: Integrated audio solution provides clear and immersive sound.
- HDMI & DisplayPort: Supports multiple display configurations when paired with a compatible processor.
- Smart Fan 6: Multiple temperature sensors and hybrid fan headers provide flexible cooling control.
Specifications
| Brand | Gigabyte |
| Model | B760M D3HP |
| Form Factor | Micro-ATX |
| Chipset | Intel B760 |
| CPU Socket | LGA1700 |
| CPU Support | Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold & Celeron® |
| Memory Type | DDR4 |
| Memory Slots | 4 × DDR4 DIMM |
| Maximum Memory | Up to 128GB |
| Memory Speed | Up to DDR4-5333 MHz (OC)* |
| Memory Architecture | Dual Channel |
| Primary PCIe Slot | PCIe 4.0 x16 |
| Additional PCIe Slot | PCIe 3.0 x1 |
| M.2 Slots | 2 × M.2 |
| M.2 Interface | PCIe 4.0 x4 |
| SATA Ports | 4 × SATA 6Gb/s |
| LAN | 2.5GbE LAN |
| Wireless | Not Included |
| Bluetooth | Not Included |
| Audio | High Definition Audio |
| Display Output | HDMI + DisplayPort |
| USB | USB 3.2 Gen 1 / USB 2.0 |
| Cooling | Smart Fan 6 |
| BIOS | UEFI BIOS |
| Operating System | Windows 11 / Windows 10 64-bit |
