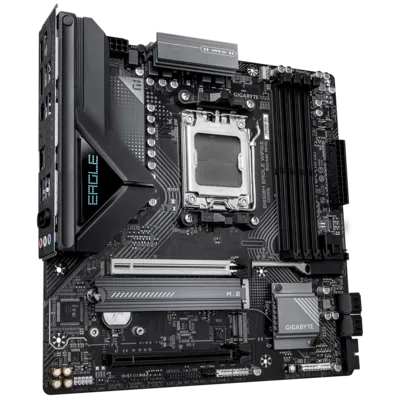

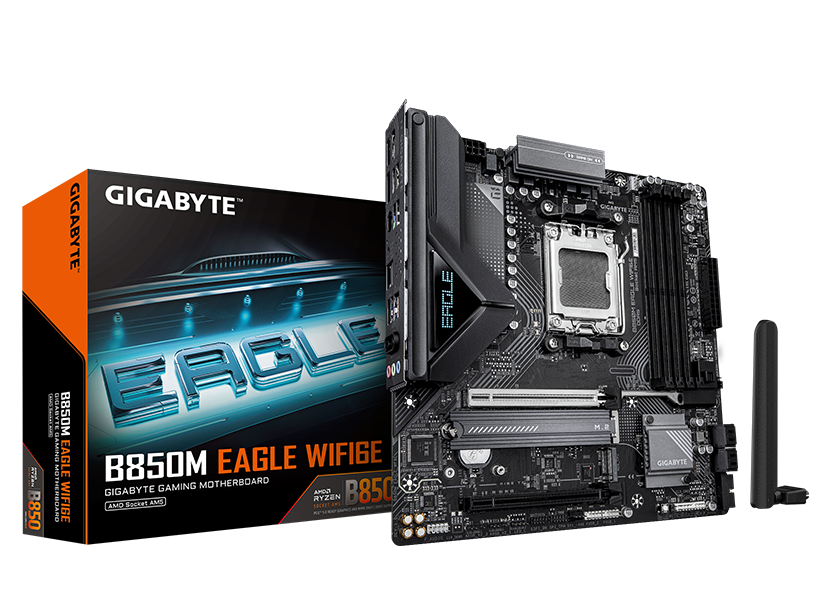

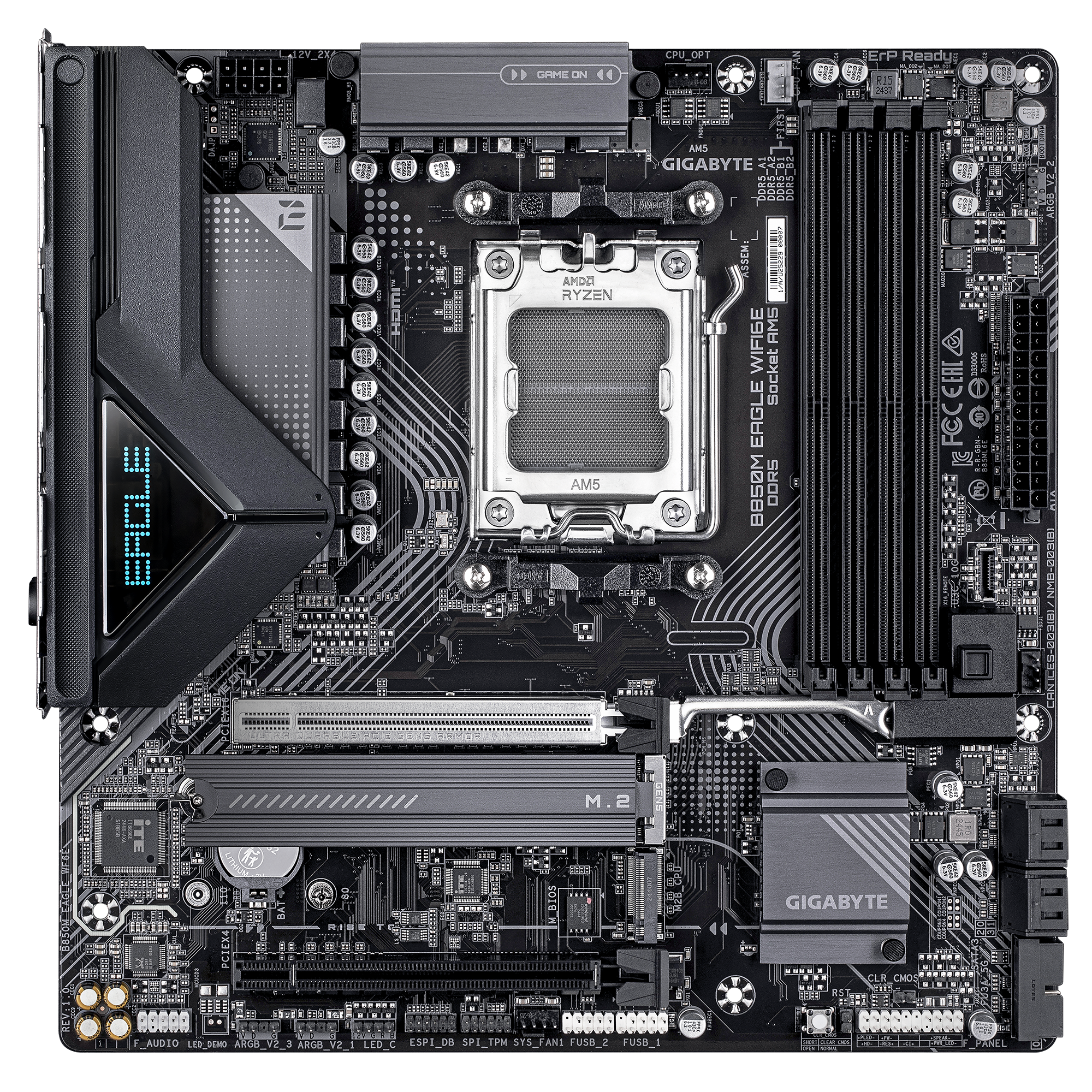

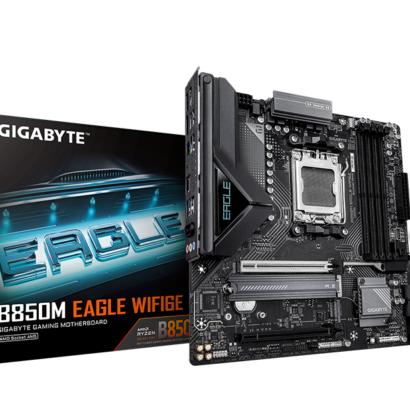

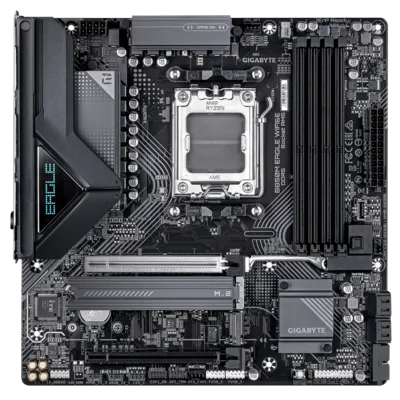

Gigabyte B850M EAGLE WIFI6E
Original price was: ₹18,309.00.₹17,089.00Current price is: ₹17,089.00.
-
๐น Socket & Chipset: AMD AM5 with B850 chipset โ supports Ryzen 7000/8000/9000 series CPUs.
-
๐น Memory: Dual-channel DDR5 support (up to ~8200 MT/s OC) with 4 DIMM slots.
-
๐น Storage: 2ร M.2 slots (including PCIe 5.0 x4) + 4ร SATA 6 Gb/s for fast SSD/HDD.
-
๐น Expansion: 1ร PCIe 5.0 x16 slot for modern GPUs + additional PCIe slot.
-
๐น Networking: Built-in Wi-Fi 6E (802.11ax) + Bluetooth 5.3 and 2.5 GbE LAN.
-
๐น Rear I/O: USB-C, USB 3.2 ports, HDMI 2.1, DisplayPort, and Q-Flash Plus.
-
๐น Audio: 7.1-channel high-definition audio with noise guard.
-
๐น Cooling & Build: Smart Fan 6, thermal guards for M.2 & VRM, EZ-Latch design for easy installation.
-
๐น Form Factor: Micro-ATX โ great for compact builds.
Gigabyte B850M EAGLE WIFI6E
Gigabyte B850M EAGLE WIFI6E
Key Features
- X3D Turbo Modeย : Unleash new era gaming performance
- DDR5 OC up to 8200MT/s
AMD Socket AM5ย : Supports AMD Ryzenโข 9000 / 8000 / 7000 Series Processors- Digital twinย 8+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPOโขMemory Module Support
- WIFI EZ-Plugย : Quick and easy designย for Wi-Fi antenna installation
- EZ-Latch Plusย : PCIe and M.2ย slots with Quick Release & Screwless Design
- EZ-Latch Clickย : M.2 heatsinks with screwless design
- Ultra-Fast Storageย : 2*M.2 slots, including PCIe 5.0 x4
- Efficient Thermalย : VRM Thermal Armor Advancedย & M.2 Thermal Guard
- Fastย Networkingย : 2.5 GbE LAN & Wi-Fi 6E withย directional Ultra-high gainย antenna
- Extended Connectivityย : HDMI, 2*Displayport
- PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support.
CPU
AMD Socket AM5, support for:
AMD Ryzenโข 9000 Series Processors/
AMD Ryzenโข 8000 Series Processors/
AMD Ryzenโข 7000 Series Processors
(Go to GIGABYTE’s website for the latest CPU support list.)
AMD Ryzenโข 9000 Series Processors/
AMD Ryzenโข 8000 Series Processors/
AMD Ryzenโข 7000 Series Processors
(Go to GIGABYTE’s website for the latest CPU support list.)
Chipset
AMD B850
Memory
Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPOโข) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPOโข) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzenโข 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzenโข 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzenโข 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
AMD Ryzenโข 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzenโข 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzenโข 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
– 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Storage Interface
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 S
SDs:
AMD Ryzenโข 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzenโข 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzenโข 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzenโข 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzenโข 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzenโข 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzenโข 9000 Series Processors.
AMD Ryzenโข 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzenโข 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzenโข 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzenโข 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzenโข 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzenโข 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzenโข 9000 Series Processors.
RAID 0, RAID 1, and RAID 10 support for SATA storage devices.
