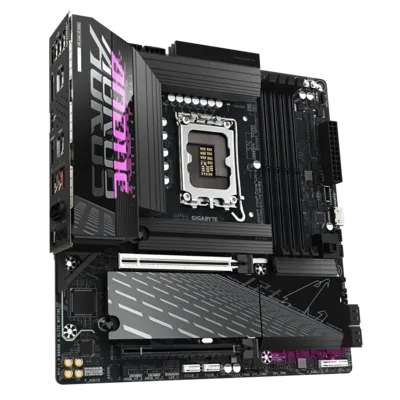

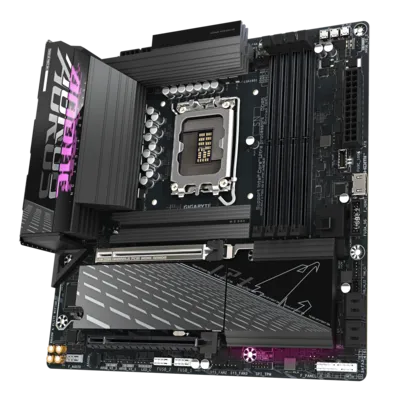

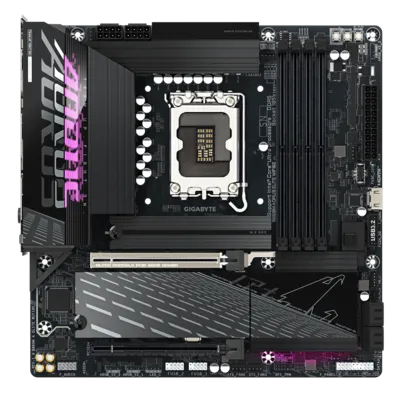

Gigabyte B860M AORUS ELITE WIFI6E
Original price was: ₹37,299.00.₹18,999.00Current price is: ₹18,999.00.
- High-performance micro-ATX motherboard based on the Intel B860 chipset supporting Intel® Core™ Ultra processors with LGA 1851 socket.
- Supports DDR5 memory across 4 DIMM slots with up to 256 GB capacity and high-speed overclocking.
- 3× M.2 slots including a PCIe 5.0 x4 slot and PCIe 4.0 slots for fast NVMe SSD storage.
- Built-in Wi-Fi 6E (802.11ax) with ultra-high gain directional antenna and 2.5 GbE LAN for fast networking.
- Advanced 12+1+2 phase digital VRM design with enhanced cooling and Thermal Armor for stable performance.
- USB4® Type-C port (40 Gbps) plus multiple USB 3.2 Gen1/Gen2 ports for high-speed connectivity.
- Comprehensive display support including HDMI 2.1 and DisplayPort 2.1.
- DIY-friendly features such as EZ-Latch Plus, EZ-Debug Zone, and Q-Flash Plus for easy setup and maintenance.
Out of stock
Gigabyte B860M AORUS ELITE WIFI6E
Gigabyte B860M AORUS ELITE WIFI6E
Key Features
- Supports Intel® Core™ Ultra processors (Series 2)
- Digital twin 12+1+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with XMP Memory Module Support
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
- Fast Networking : 2.5GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna
- Extended Connectivity : USB4 Type-C with DP-Alt, HDMI, DisplayPort
CPU
LGA1851 socket: Support for Intel ® Core™ Ultra Processors
(Go to GIGABYTE’s website for the latest CPU support list.)
L3 cache varies with CPU
(Go to GIGABYTE’s website for the latest CPU support list.)
L3 cache varies with CPU
Chipset
Intel ® B860 Express Chipset
Memory
Support for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
Expansion Slots
CPU:
– 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
– 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Storage Interface
CPU:
– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
Chipset:
– 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
– 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0×4/x2 SSD support) (M2N_SB)
– 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
Chipset:
– 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
– 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0×4/x2 SSD support) (M2N_SB)
– 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
CPU:
– 1 x USB4® USB Type-C® port on the back panel
Chipset:
– 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
– 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
– 2 x USB 3.2 Gen 1 ports available through the internal USB header
Chipset+USB 3.2 Gen 1 Hub:
– 4 x USB 3.2 Gen 1 ports on the back panel
Chipset+2 USB 2.0 Hubs:
– 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
– 1 x USB4® USB Type-C® port on the back panel
Chipset:
– 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
– 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
– 2 x USB 3.2 Gen 1 ports available through the internal USB header
Chipset+USB 3.2 Gen 1 Hub:
– 4 x USB 3.2 Gen 1 ports on the back panel
Chipset+2 USB 2.0 Hubs:
– 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x HDMI port*
1 x power button
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x HDMI port*
1 x power button
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
* Actual support may vary by CPU.
Back Panel Connectors
4 x USB 2.0/1.1 ports
4 x USB 3.2 Gen 1 ports
1 x DisplayPort*
1 x USB4® USB Type-C® port (DisplayPort*)
1 x HDMI port*
1 x RJ-45 port
2 x USB 3.2 Gen 2 Type-A ports (red)
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
4 x USB 3.2 Gen 1 ports
1 x DisplayPort*
1 x USB4® USB Type-C® port (DisplayPort*)
1 x HDMI port*
1 x RJ-45 port
2 x USB 3.2 Gen 2 Type-A ports (red)
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
* Actual support may vary by CPU.
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
