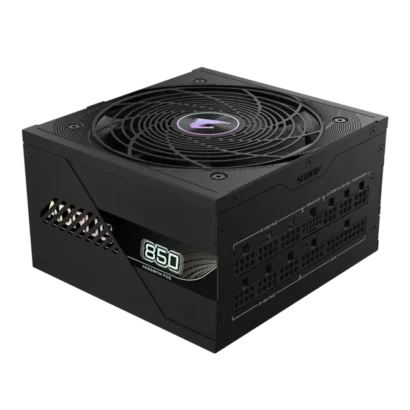

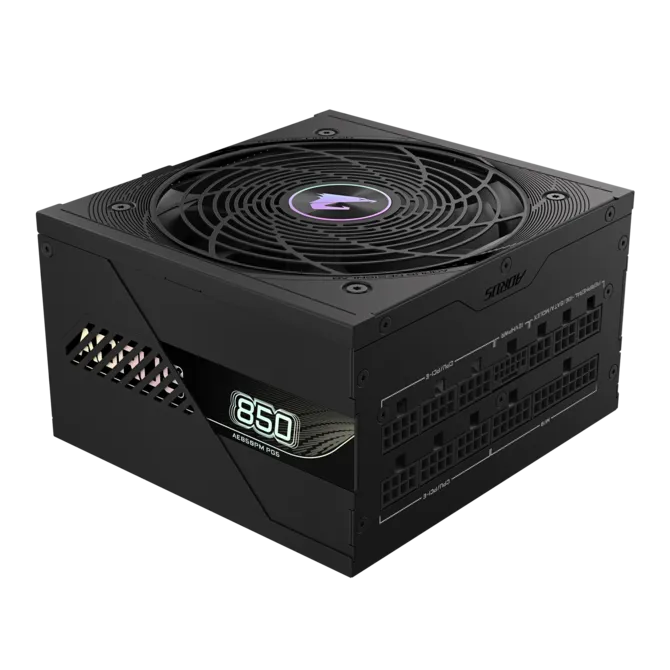

Gigabyte GP-AE850PM PG5
Original price was: ₹14,399.00.₹12,109.00Current price is: ₹12,109.00.
- Power Output: 850W
- Efficiency: 80 PLUS Platinum (~92% at 50% load)
- Form Factor: ATX 3.0 / ATX 3.1 compatible
- PCIe Support: PCIe Gen 5 (12VHPWR connector)

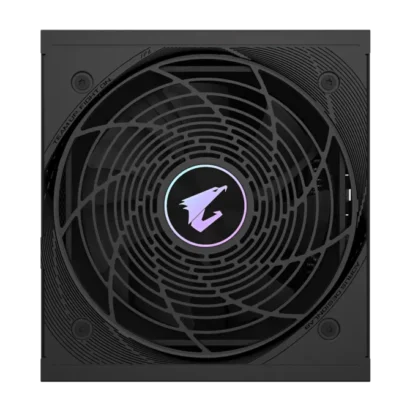

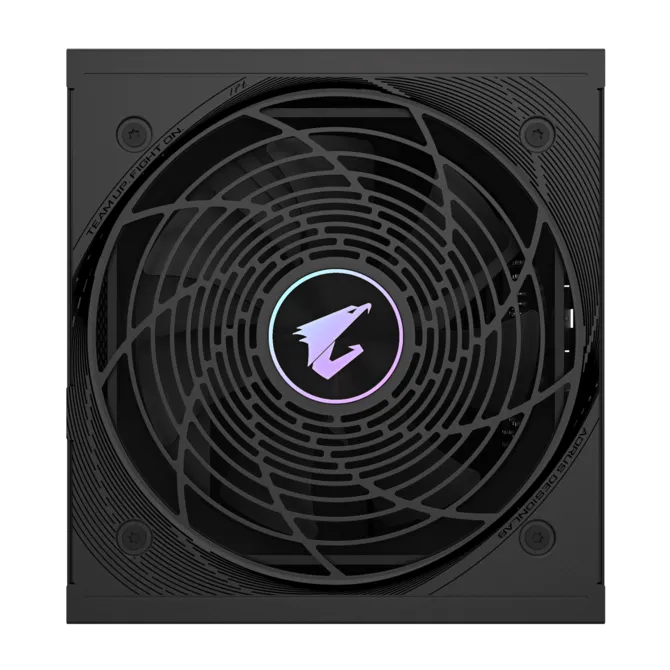

- Fan: 120mm Fluid Dynamic Bearing (FDB)
- Input Voltage: 100–240V (full range)
- Cable Type: Fully modular, flat cables
- MTBF: >100,000 hours
- Dimensions: 150 × 140 × 86 mm
Available on backorder
Gigabyte GP-AE850PM PG5
Gigabyte GP-AE850PM PG5
Power Supply
The Gigabyte GP-AE850PM PG5 (AORUS Elite) is a premium-tier 850W power supply designed for high-end gaming and workstation systems. With 80 PLUS Platinum efficiency, ATX 3.0 compliance, and native PCIe Gen 5 support, it delivers exceptional efficiency, stability, and future-ready performance.
Key Features
- ATX 3.0 and PCIe Gen 5.0 ready (compatible with ATX 3.1)
- 80 PLUS Platinum certified
- 100% Japanese capacitors
- 120mm smart Fluid Dynamic Bearing (FDB) fan
- Compact design
- Fully modular design
- Powerful single +12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
- 10 years warranty (Adjusted according to different regions)
SPECIFICATIONS
Model
GP-AE850PM PG5
Type
Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1)
PFC
Active PFC (>0.9 typical)
Input Voltage
100-240 Vac (full range)
Input Current
12-6A
Input Frequency
60-50 Hz
Output Capacity
850W
Dimensions
150 x 140 x 86mm
Fan Type
120mm Fluid Dynamic Bearing (FDB) Fan
80 PLUS
Platinum
Efficiency
92% at typical load
MTBF
>100,000 hours
Protections
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100-150ms
Hold Up Time
>16ms
Cable Type
Flat, All black
Connectors
ATX/MB 20+4 Pin x 1 : 650mm*1
CPU/EPS 4+4 Pin x 2 : 700mm*2
PCI-e 16 Pin x 1: 700mm*1
PCI-e 6+2 Pin x 6 : 650mm+150mm*2, 750mm*2
SATA x 8 : 600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1
CPU/EPS 4+4 Pin x 2 : 700mm*2
PCI-e 16 Pin x 1: 700mm*1
PCI-e 6+2 Pin x 6 : 650mm+150mm*2, 750mm*2
SATA x 8 : 600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1
