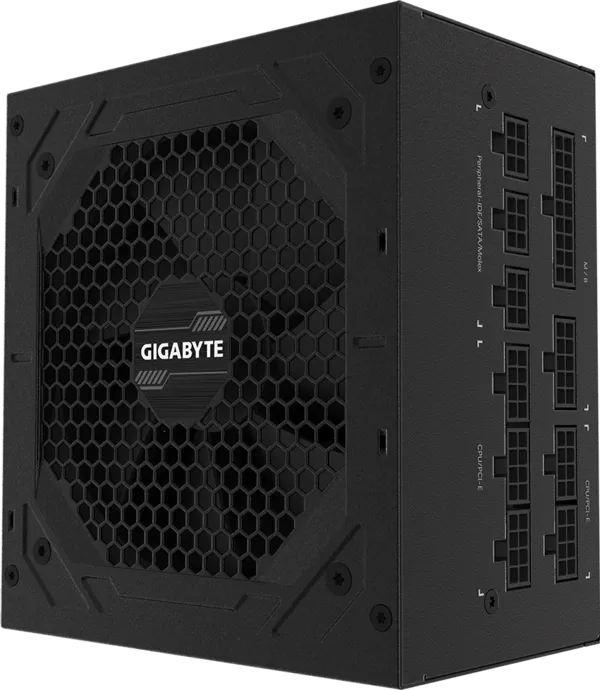

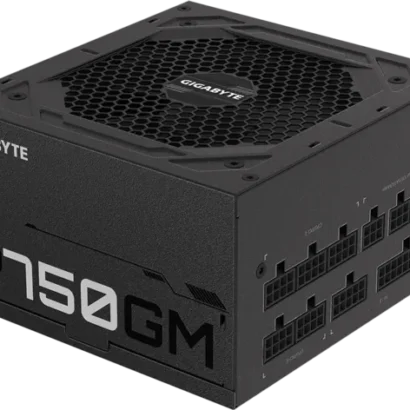

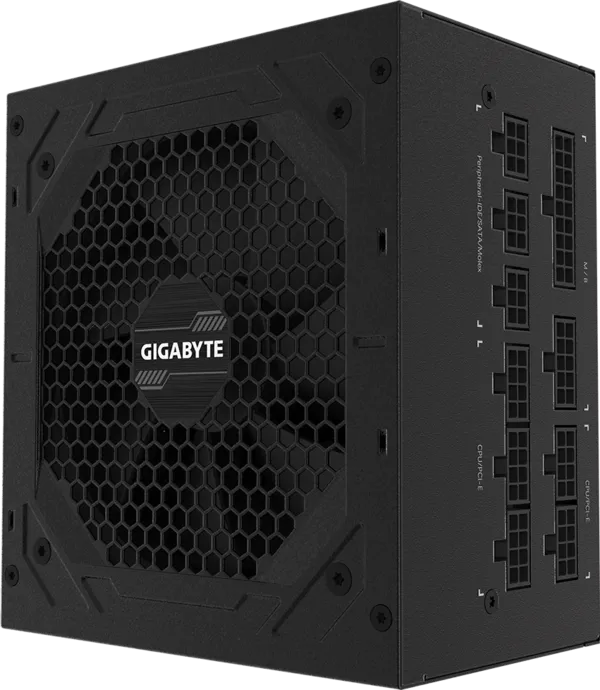

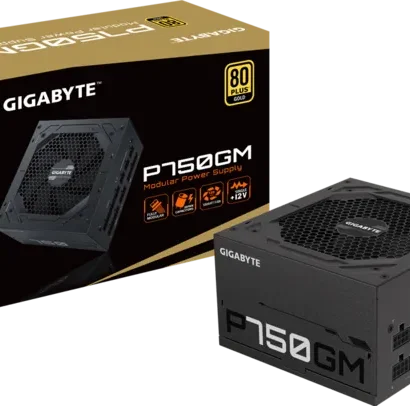

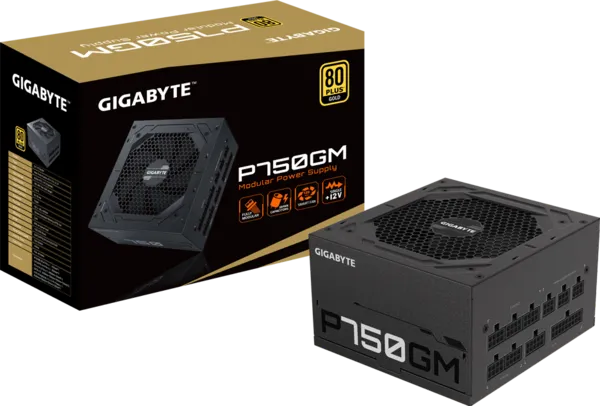

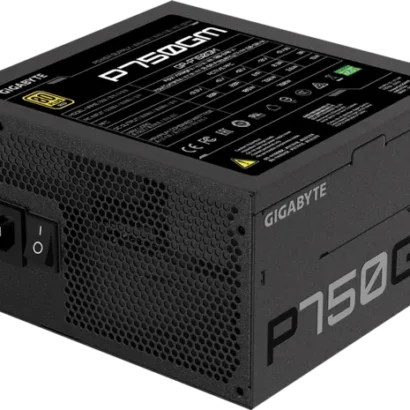

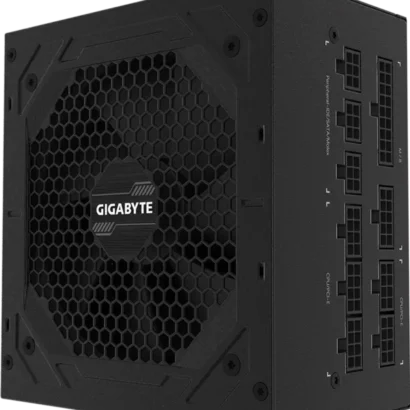

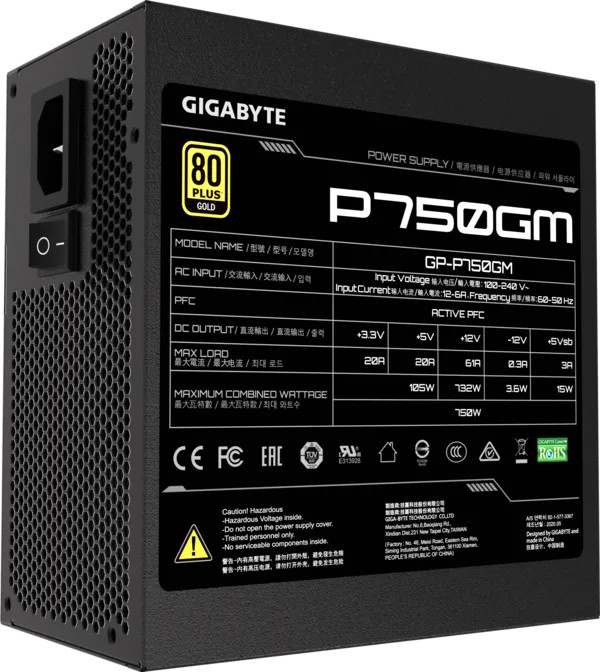

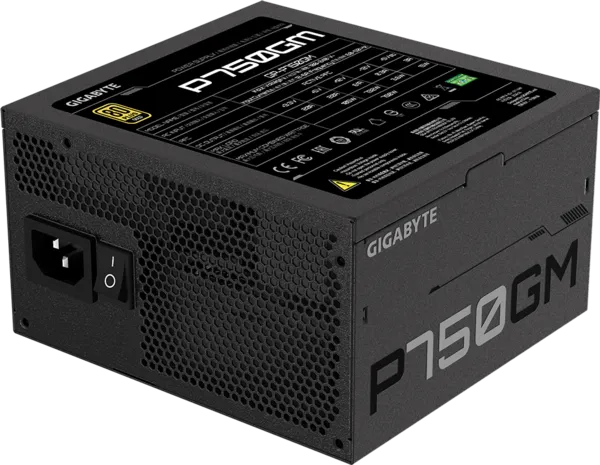

Gigabyte GP-P750GM Gold
Original price was: ₹9,199.00.₹7,319.00Current price is: ₹7,319.00.
- Power Output: 750W
- Efficiency: 80 PLUS Gold (~90% at 50% load)
- Form Factor: ATX 12V v2.31
- Fan: 120mm Hydraulic Bearing Fan
- Input Voltage: 100–240V (full range)
- Cable Type: Fully modular, flat black cables
- MTBF: >100,000 hours
- Dimensions: 150 × 140 × 86 mm
Gigabyte GP-P750GM Gold
Gigabyte GP-P750GM Gold
Power Supply
The Gigabyte GP-P750GM is a 750W power supply built for mid to high-performance systems, offering 80 PLUS Gold efficiency, a fully modular design, and high-quality internal components. It delivers stable and efficient power for gaming PCs, workstations, and upgrade-ready builds.
Key Features
- 80 PLUS Gold certified
- Fully modular design
- 120mm Smart Hydraulic Bearing (HYB) Fan
- Main Japanese capacitors
- Powerful single +12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
- Compact size
- 5 years warranty (Adjusted according to different regions)

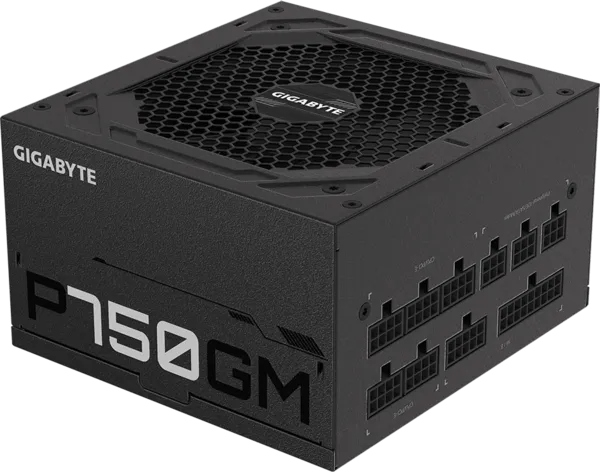

FULLY MODULAR DESIGN
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.
80 PLUS GOLD CERTIFIED
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money.

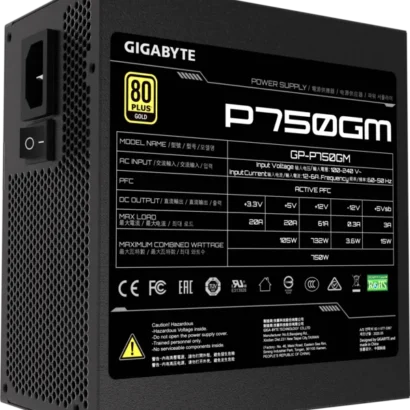

SPECIFICATIONS
Model
GP-P750GM
Type
Intel Form Factor ATX 12V v2.31
PFC
Active PFC (>0.9 typical)
Input Voltage
100-240 Vac (full range)
Input Current
12-6 A
Input Frequency
60-50 Hz
Output Capacity
750W
Dimension
150 x 140 x 86 mm
Fan Type
120mm Hydraulic Bearing ( HYB ) fan
80 PLUS
Gold
Efficiency
90% at typical load
MTBF
>100,000 hours
Protection
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100-500ms
Hold Up Time
>16ms
Cable Type
Flat, All black
Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm*2
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 : 600mm+150mm+150mm+150mm*2 :
4 Pin Peripheral x 3 + 4-Pin floppy x 1 :
500mm+120mm+120mm+120mm *1
CPU/EPS 4+4 Pin x 2 : 600mm*2
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 : 600mm+150mm+150mm+150mm*2 :
4 Pin Peripheral x 3 + 4-Pin floppy x 1 :
500mm+120mm+120mm+120mm *1
