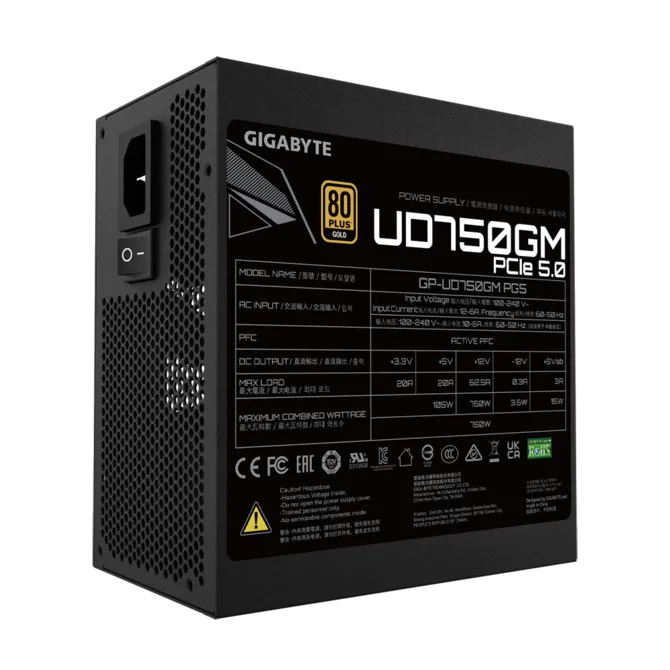

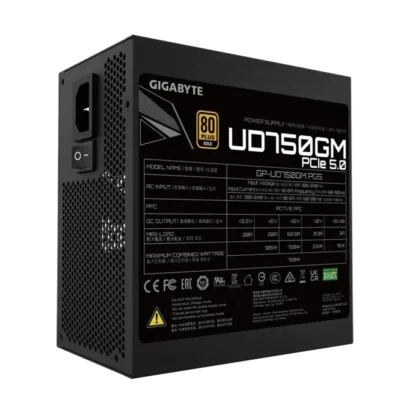

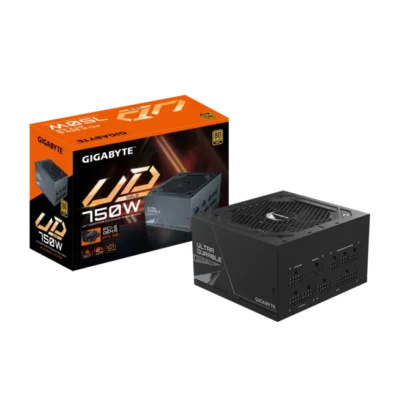

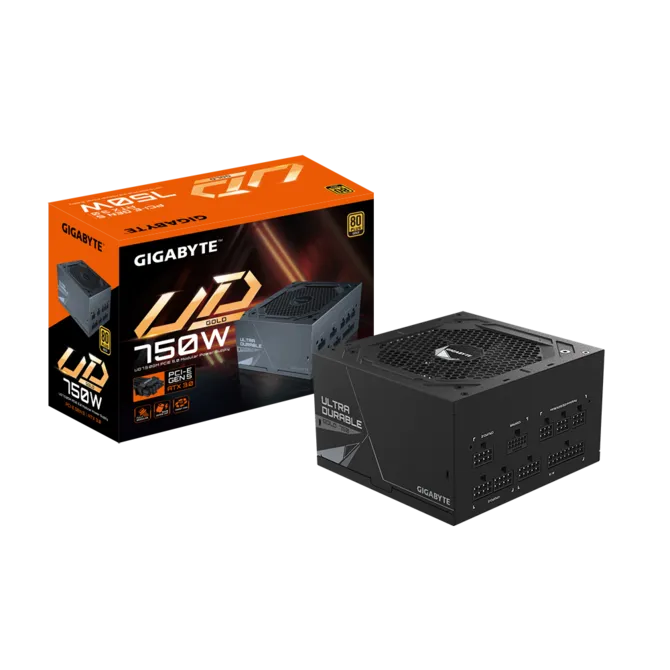

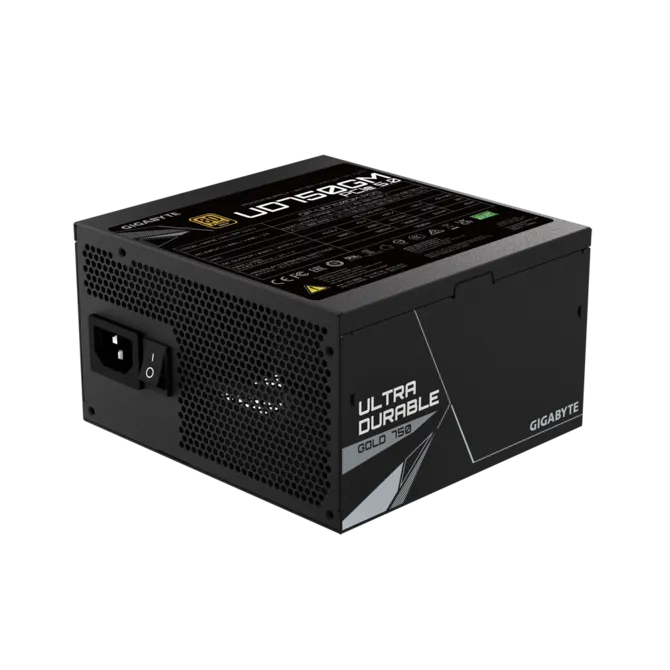

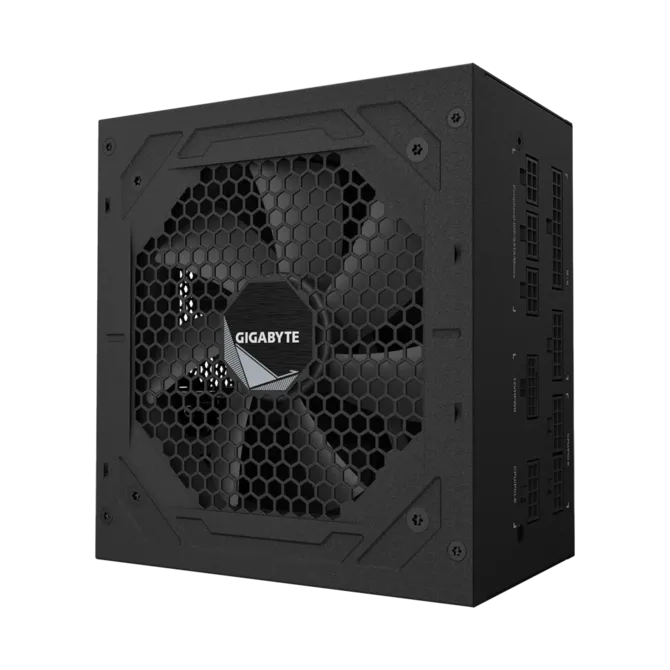

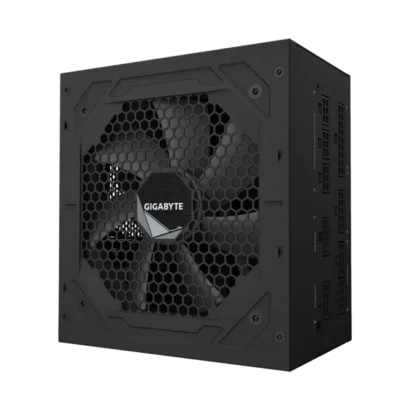

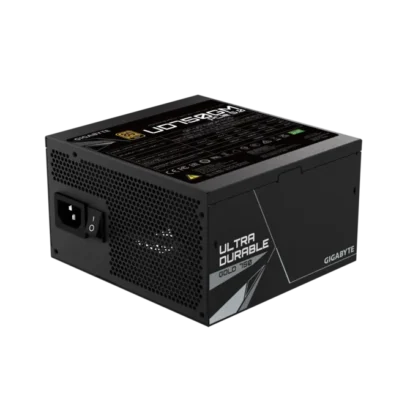

Gigabyte GP-UD750GM PG5 Gold
Original price was: ₹10,299.00.₹8,509.00Current price is: ₹8,509.00.
- Power Output: 750W
- Efficiency: 80 PLUS Gold (~90% at 50% load)
- Form Factor: ATX 3.0
- PCIe Support: PCIe Gen 5 (12VHPWR connector)
- Fan: 120mm Hydraulic Bearing (HYB)
- Input Voltage: 100–240V (full range)
- Cable Type: Fully modular, flat black cables
- MTBF: >100,000 hours
- Dimensions: 150 × 140 × 86 mm
Gigabyte GP-UD750GM PG5 Gold
Gigabyte GP-UD750GM PG5 Gold
Power Supply
The Gigabyte UD750GM PG5 is a next-generation 750W power supply designed for modern gaming and high-performance systems. Built with ATX 3.0 standards and PCIe Gen 5 support, it delivers reliable, efficient power while ensuring compatibility with the latest GPUs and components.
Key Features
- Ultra Durable
- Main Japanese capacitors
- Enhanced thermal solution
- 120mm smart hydraulic bearing (HYB) fan
- OVP/OPP/SCP/UVP/OCP/OTP protection
- Support PCIe Gen 5.0 graphics cards
- Support Intel ATX 3.0 standard
- 80 PLUS Gold certified
- Fully modular design
- Compact design
- 5 years warranty (Adjusted according to different regions)
Support PCIe Gen 5.0 graphics cards
The UD750GM PCIE 5.0 can sustain up to 3x GPU power excursion. It has a 16-pin connector and comes with a high-quality native 16-pin cable that allows you to use the PSU with a PCIe Gen 5.0 graphics card. This cable can support up to 450 watts of power to the graphics card.
Support Intel ATX 3.0 standard
The UD750GM PCIE 5.0 can sustain up to 2x total power excursion. It is fully compatible with Intel PSDG (Power Supply Design Guide) ATX 3.0 standard which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards.
ULTRA
DURABLE
Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.
ENHANCED THERMAL
SOLUTION
Compared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components.
SPECIFICATIONS
Model
GP-UD750GM PG5
Type
Intel Form Factor ATX 12V v3.0
PFC
Active PFC (>0.9 typical)
Input Voltage
100-240 Vac (full range)
Input Current
12-6A
Input Frequency
60-50 Hz
Output Capacity
750W
Dimensions
150 x 140 x 86mm
Fan Type
120mm Hydraulic Bearing(HYB)fan
80 PLUS
Gold
Efficiency
90% at typical load
MTBF
>100,000 hours
Protections
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100-150ms
Hold Up Time
>16ms
Cable Type
Flat, All black
Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1
PCIe 16 Pin x 1: 700mm*1
PCIe 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 :
600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1
PCIe 16 Pin x 1: 700mm*1
PCIe 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 :
600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
