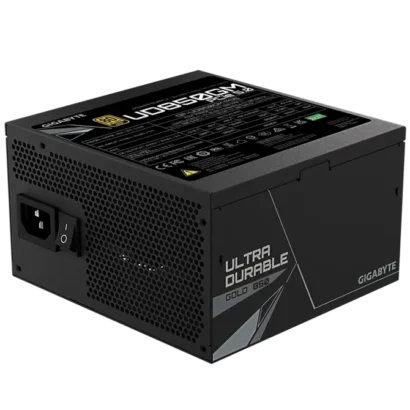

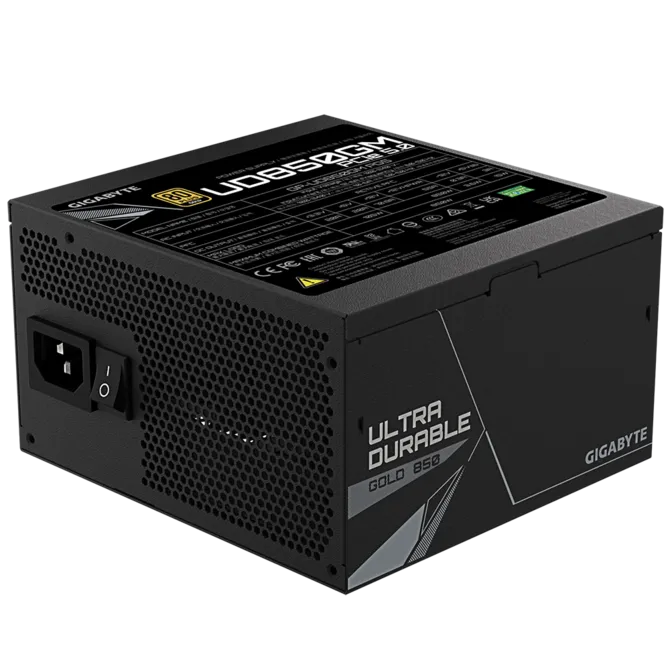

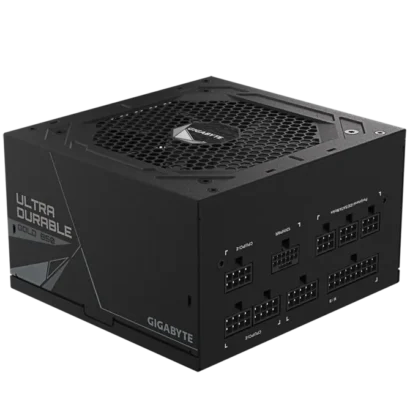

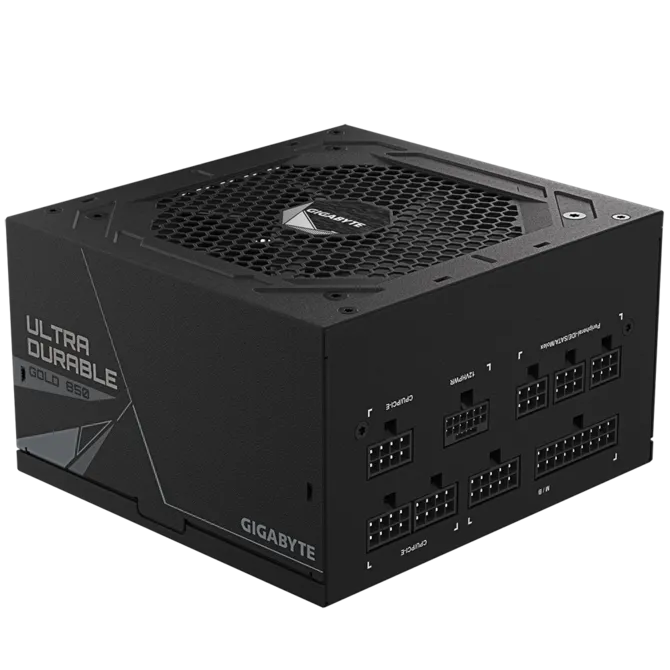

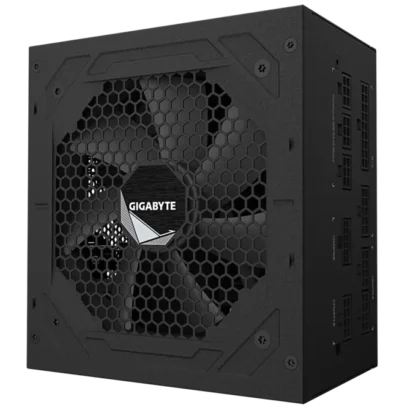

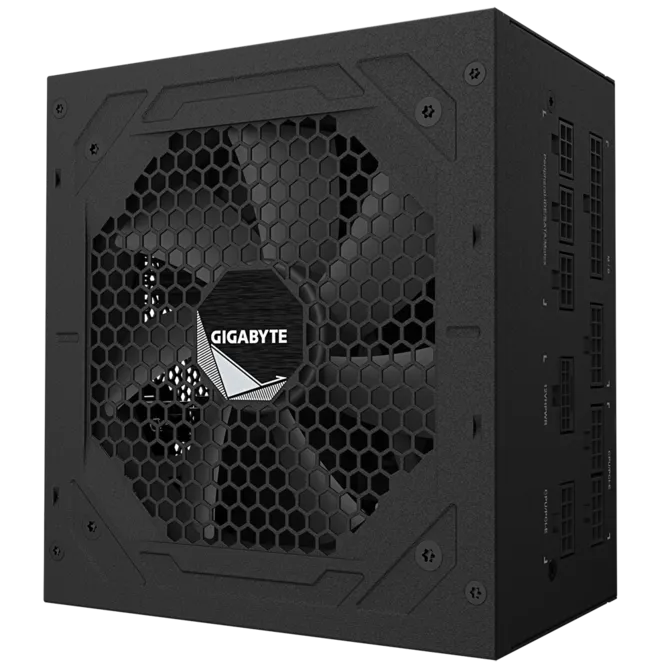

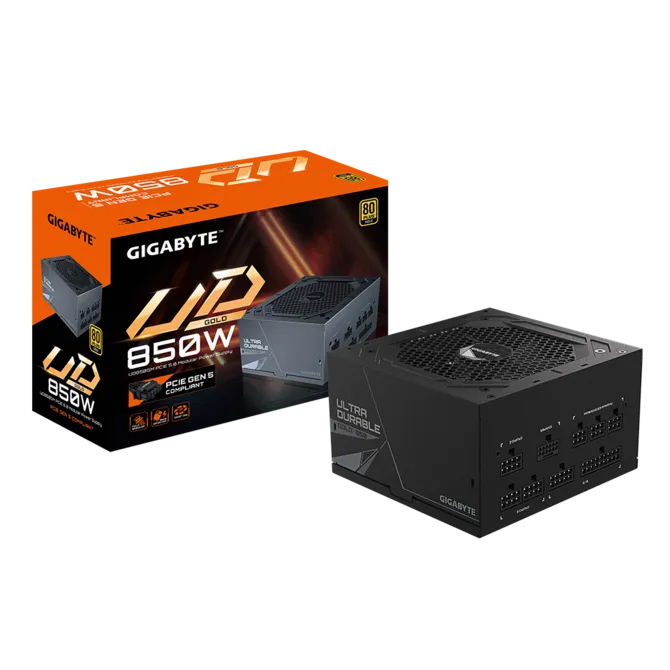

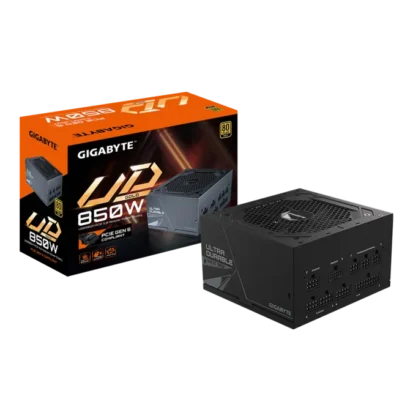

Gigabyte GP-UD850GM PG5 Gold
Original price was: ₹9,999.00.₹8,849.00Current price is: ₹8,849.00.
- Power Output: 850W
- Efficiency: 80 PLUS Gold (~90% at 50% load)
- Form Factor: ATX 3.0 (ATX 12V compliant)
- PCIe Support: PCIe Gen 5 (12VHPWR connector)
- Fan: 120mm Hydraulic Bearing (HYB)
- Input Voltage: 100–240V (full range)
- Cable Type: Fully modular, flat black cables
- MTBF: >100,000 hours
- Dimensions: 150 × 140 × 86 mm
Gigabyte GP-UD850GM PG5 Gold
Gigabyte GP-UD850GM PG5 Gold
Power Supply
The Gigabyte UD850GM PG5 is a high-performance 850W power supply built for modern gaming and workstation systems. Designed with ATX 3.0 standards and PCIe Gen 5 support, it delivers stable, efficient power while ensuring compatibility with the latest GPUs and future hardware upgrades.
Key Features
- Ultra Durable
- Main Japanese capacitors
- Enhanced thermal solution
- 120mm smart hydraulic bearing (HYB) fan
- OVP/OPP/SCP/UVP/OCP/OTP protection
- Support PCIe Gen 5.0 graphics card
- High-quality native 16-pin cable supports 600W output
- 80 PLUS Gold certified
- Fully modular design
- Compact design
- 5 years warranty (Adjusted according to different regions)
SPECIFICATIONS
Model
GP-UD850GM PG5
Type
Intel Form Factor ATX 12V
PFC
Active PFC (>0.9 typical)
Input Voltage
100-240 Vac (full range)
Input Current
12-6A
Input Frequency
60-50 Hz
Output Capacity
850W
Dimensions
150 x 140 x 86 mm
Fan Type
120mm Hydraulic Bearing(HYB)fan
80 PLUS
Gold
Efficiency
90% at typical load
MTBF
>100,000 hours
Protections
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100-150ms
Hold Up Time
>16ms
Cable Type
Flat, All black
Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1
PCI-e 12+4 Pin x 1: 700mm*1
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 :
600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1
PCI-e 12+4 Pin x 1: 700mm*1
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 :
600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
