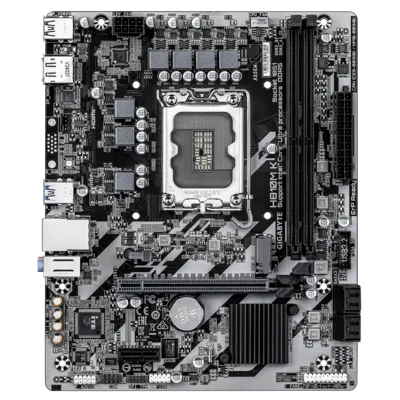

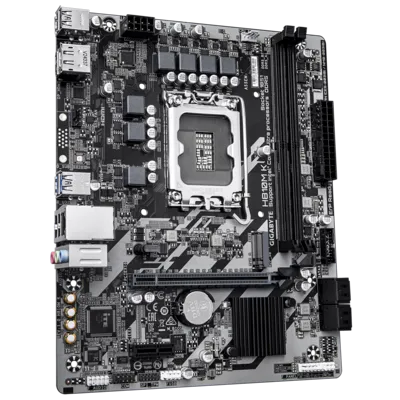

Gigabyte H810M K
Original price was: ₹17,980.00.₹8,649.00Current price is: ₹8,649.00.
- Based on the Intel® H810 Express chipset with LGA1851 socket, supporting Intel® Core Ultra (Series 2) processors for modern performance.
- Micro‑ATX form factor suitable for compact desktop builds.
- Dual‑channel DDR5 memory support across 2 DIMM slots (up to 128 GB, up to 6400 MHz) with XMP profile compatibility.
- PCIe 4.0 x16 slot for discrete graphics cards and PCIe 3.0 x1 slot for expansion.
- 1× PCIe 4.0 x4 M.2 slot and 4× SATA 6 Gb/s ports for high‑speed NVMe SSD and SATA storage.
- Rear display outputs include HDMI 2.1 and DisplayPort 2.1 for integrated graphics support.
- Realtek® Gigabit Ethernet (GbE LAN) for reliable wired networking.
- Realtek high‑definition audio for multi‑channel sound.
- Multiple USB ports (USB 3.2 Gen 1 and USB 2.0) on rear I/O and internal headers for peripherals.
- Useful features like Q‑Flash BIOS support and EZ‑Latch PCIe design for easier building and updates.
Out of stock
Gigabyte H810M K
Gigabyte H810M K
Key Features
- Supports Intel® Core™ Ultra processors (Series 2)
- Hybrid 3+1+2 phases VRM solution
- EZ-Latch: PCIe x16 Slot with Quick Release Design
- Friendly UI: Multi-Theme and Q-Flash Auto Scan in BIOS and SW
- Next Generation Storage: PCIe 4.0 x4 M.2 Connectors
- Fast Networking: GbE LAN
- Extended Connectivity: HDMI, DisplayPort
CPU
LGA1851 socket: Support for Intel® Core™ Ultra Processors
(Go to GIGABYTE’s website for the latest CPU support list.)
L3 cache varies with CPU
(Go to GIGABYTE’s website for the latest CPU support list.)
L3 cache varies with CPU
Chipset
Intel® H810 Express Chipset
Memory
Support for DDR5 6400/5600 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity)of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity)of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
Expansion Slots
CPU:
– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset:
– 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Storage Interface
Chipset:
– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
– 4 x SATA 6Gb/s connectors
– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
– 4 x SATA 6Gb/s connectors
USB
Chipset:
– 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
– 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
– 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
– 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper
Back Panel Connectors
1 x DisplayPort (Note)
1 x HDMI port (Note)
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
1 x HDMI port (Note)
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
(Note) Actual support may vary by CPU.
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Smart Backup
Support for Q-Flash
Support for Smart Backup
