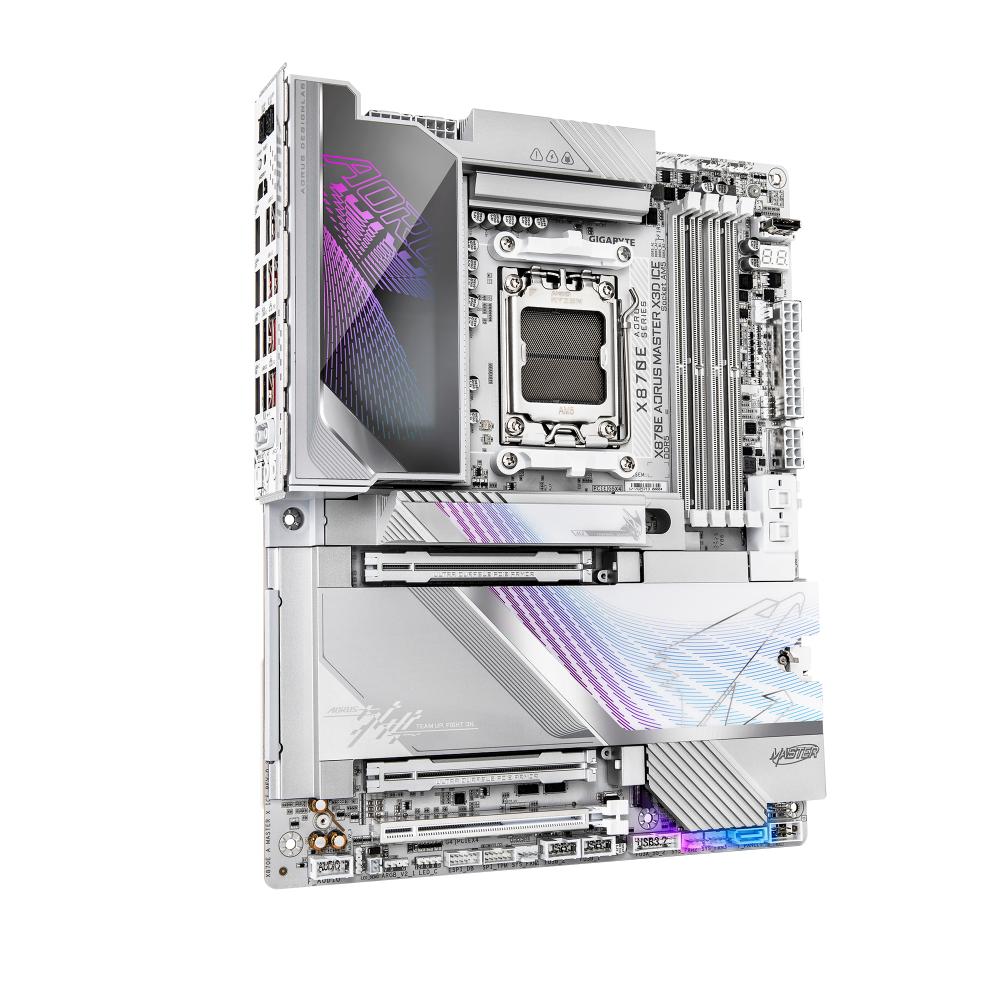

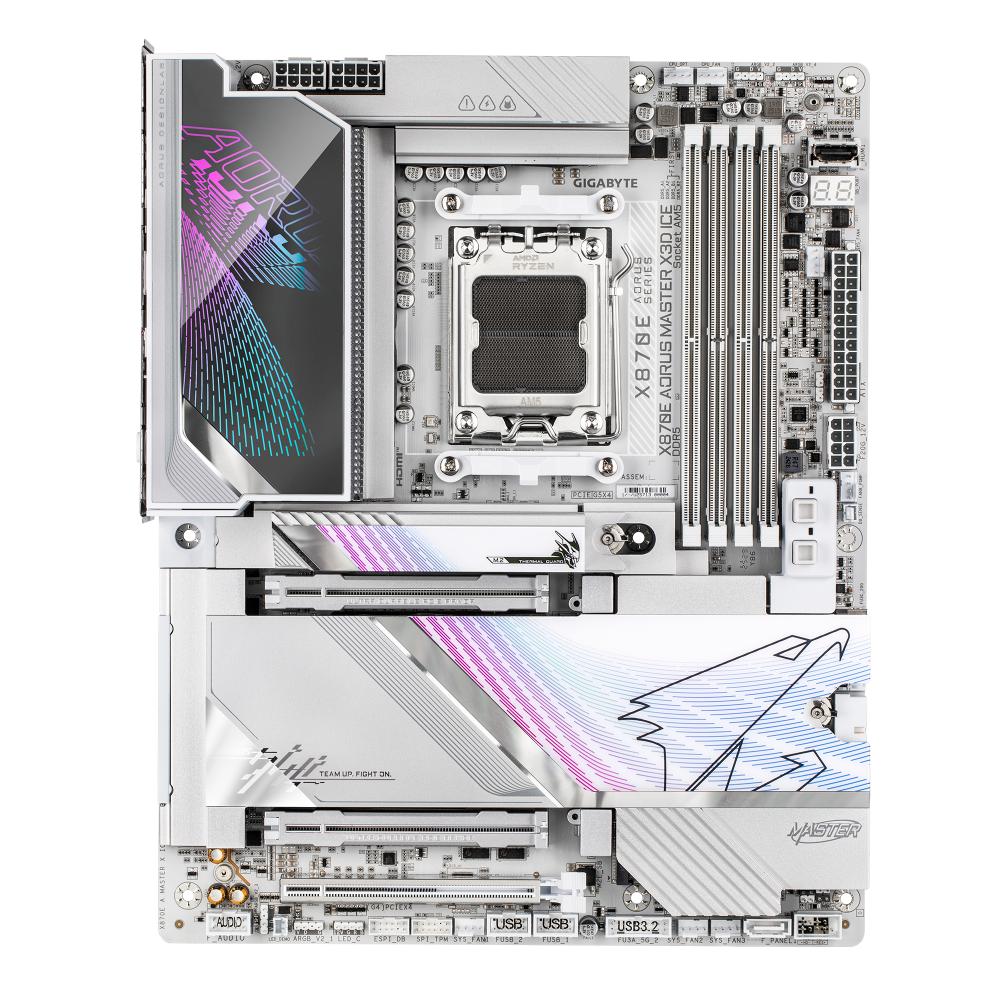

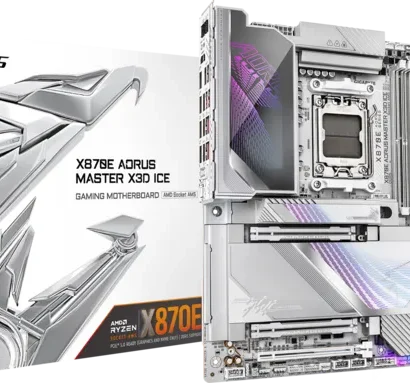

Gigabyte X870E AORUS MASTER X3D ICE
Original price was: ₹79,399.00.₹54,989.00Current price is: ₹54,989.00.
-
Flagship AMD AM5 motherboard with X870E chipset designed for high-end gaming and AI-optimized performance.
-
Supports AMD Ryzen™ 7000, 8000 & 9000 series processors for maximum CPU performance.
-
Dual-channel DDR5 memory (4 DIMM slots) with support for DDR5 OC up to 9000 MT/s and AMD EXPO profiles.
-
Dual 10 GbE LAN + 5 GbE LAN and Wi-Fi 7 with directional high-gain antennas for ultra-fast networking.
-
5× M.2 slots including PCIe 5.0 x4 for ultra-fast storage and extensive expansion.
-
Multiple PCIe slots with reinforced PCIe 5.0 x16 support for GPUs and add-in cards.
-
18+2+2 phase digital VRM power design with advanced cooling and thermal armor for stable delivery under load.
-
USB4® Type-C, HDMI 2.1, and extensive USB connectivity for modern peripherals and displays.
-
AI-centric features like X3D Turbo Mode 2.0 to dynamically optimize performance for X3D CPUs.
-
DIY-friendly enhancements such as EZ-Latch PCIe/M.2, WIFI EZ-Plug, and robust BIOS/Software support.
Available on backorder
Gigabyte X870E AORUS MASTER X3D ICE
Gigabyte X870E AORUS MASTER X3D ICE
Key Features
- X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI
- DDR5 OC up to 9000MT/s
- DriverBIOS : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 18+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
- PCIe EZ-Latch Plus Duo : One click for screwless & quick release on dual PCIe slots
- M.2 EZ-Flex : high-efficiency heat dissipation & flexible patented baseplate for M.2 SSD
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- M.2 EZ-Latch Click & Plus : Quick Release & Screwless Design on M.2 slots and heatsinks
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage : 5*M.2 slots, including PCIe 5.0 x4
- PCB Thermal Plate : 14% thermal improvement and reinforced motherboard stability.
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L & M.2 Thermal Guard Ext.
- Fast Networking : 10GbE LAN + 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity : HDMI, Dual USB4 Type-C with DP-Alt, Front QC-USB 65W
- PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card.
CPU
AMD Socket AM5, support for:
AMD Ryzen™ 9000 Series Processors/
AMD Ryzen™ 8000 Series Processors/
AMD Ryzen™ 7000 Series Processors
(Go to GIGABYTE’s website for the latest CPU support list.)
AMD Ryzen™ 9000 Series Processors/
AMD Ryzen™ 8000 Series Processors/
AMD Ryzen™ 7000 Series Processors
(Go to GIGABYTE’s website for the latest CPU support list.)
Chipset
AMD X870E
Memory
Support for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C.)/ 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules.
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x8 mode
* The PCIEX8 slot becomes unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/ Phoenix 2 processor is used.
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x8 mode
* The PCIEX8 slot becomes unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/ Phoenix 2 processor is used.
Chipset:
– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector.
Storage Interface
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
* The M2B_CPU connector shares bandwidth with the ASMedia USB4® controller. When a device is installed in the M2B_CPU connector, both the M2B_CPU connector and the USB4 ports supported by the ASMedia USB4® controller operate at up to x2 bandwidth.
When using an AMD Ryzen™ 8000 Series-Phoenix 1 or Phoenix 2 processor, the USB4 ports supported by the ASMedia USB4® controller operates at up to x2 bandwidth, and the M2B_CPU connector becomes unavailable.2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2E_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x2 SSDs
2 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
* The M2B_CPU connector shares bandwidth with the ASMedia USB4® controller. When a device is installed in the M2B_CPU connector, both the M2B_CPU connector and the USB4 ports supported by the ASMedia USB4® controller operate at up to x2 bandwidth.
When using an AMD Ryzen™ 8000 Series-Phoenix 1 or Phoenix 2 processor, the USB4 ports supported by the ASMedia USB4® controller operates at up to x2 bandwidth, and the M2B_CPU connector becomes unavailable.2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2E_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x2 SSDs
2 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
RAID 0 and RAID 1 support for SATA storage devices
USB
CPU+ASMedia USB4® controller:
– 2 x USB4® USB Type-C® ports on the back panel
CPU:
– 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
Chipset+USB 3.2 Gen 1 Hub:
– 4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset:
– 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support
– 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
– 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header (Supports up to 65W PD 3.0/QC 4+ fast charging)
* For precautions regarding the fast charging function, refer to “USB Type-C® Header” in Chapter 2-7, “Internal Connectors.”- 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
– 4 x USB 2.0/1.1 ports available through the internal USB headers
– 2 x USB4® USB Type-C® ports on the back panel
CPU:
– 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
Chipset+USB 3.2 Gen 1 Hub:
– 4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset:
– 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support
– 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
– 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header (Supports up to 65W PD 3.0/QC 4+ fast charging)
* For precautions regarding the fast charging function, refer to “USB Type-C® Header” in Chapter 2-7, “Internal Connectors.”- 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
– 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x PCIe power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
1 x system fan extension cable header (can extend three system fan headers through one cable)
1 x system fan/water cooling pump header
4 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
5 x M.2 Socket 3 connectors
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note)
1 x chassis intrusion header
1 x reset jumper
1 x Clear CMOS jumper
2 x temperature sensor headers(Note) Actual support may vary by CPU.
2 x 8-pin ATX 12V power connectors
1 x PCIe power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
1 x system fan extension cable header (can extend three system fan headers through one cable)
1 x system fan/water cooling pump header
4 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
5 x M.2 Socket 3 connectors
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note)
1 x chassis intrusion header
1 x reset jumper
1 x Clear CMOS jumper
2 x temperature sensor headers(Note) Actual support may vary by CPU.
Back Panel Connectors
1 x Q-Flash Plus button
1 x Clear CMOS button
1 x reset button
1 x power button
1 x HDMI port (Note)
2 x USB4® USB Type-C® ports (DisplayPorts (Note))
1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
7 x USB 3.2 Gen 2 Type-A ports (red)
2 x RJ-45 ports
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector(Note) Actual support may vary by CPU.
1 x Clear CMOS button
1 x reset button
1 x power button
1 x HDMI port (Note)
2 x USB4® USB Type-C® ports (DisplayPorts (Note))
1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
7 x USB 3.2 Gen 2 Type-A ports (red)
2 x RJ-45 ports
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector(Note) Actual support may vary by CPU.
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1 x 512 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
