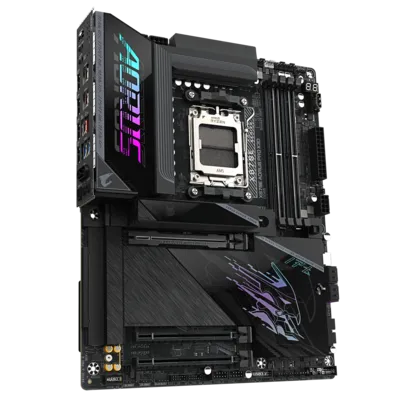

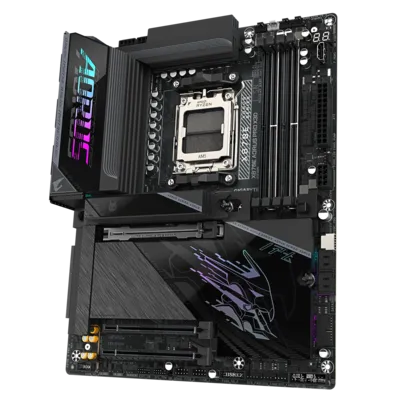

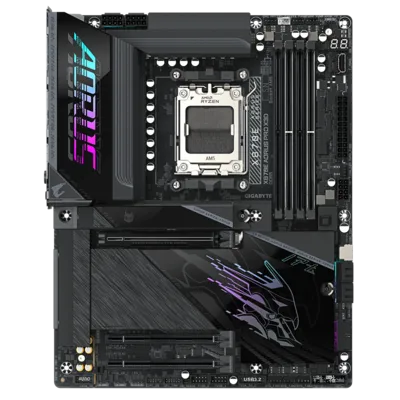

Gigabyte X870E AORUS PRO X3D
Original price was: ₹56,399.00.₹38,799.00Current price is: ₹38,799.00.
-
Premium AMD AM5 motherboard built on the X870E chipset, designed for high-end gaming and performance-oriented systems.
-
Supports AMD Ryzen™ 7000, 8000, and 9000 series processors for powerful CPU performance and future-proof upgrades.
-
Dual-channel DDR5 memory support with 4 DIMM slots and high overclocking potential (up to DDR5-9000+ with AMD EXPO™/XMP).
-
X3D Turbo Mode 2.0 technology optimizes performance for Ryzen X3D processors with AI-assisted tuning to enhance gaming and multitasking.
-
Robust digital twin 18+2+2 phase VRM design for stable power delivery under heavy workloads.
-
PCIe slots and expansion: Full-length PCIe 5.0 x16 slot plus additional PCIe lanes for adding GPUs and other expansion cards.
-
Storage support: Multiple M.2 connectors (PCIe 5.0/4.0) and SATA ports for NVMe SSDs and HDDs.
-
Connectivity: USB4® Type-C, USB 3.2, and HDMI output support modern peripherals and displays.
-
Networking: Realtek® 5 GbE LAN and Wi-Fi 7 + Bluetooth 5.4 for high-speed wired and wireless connectivity.
-
High-definition audio with Realtek® codec for rich sound.
Available on backorder
Gigabyte X870E AORUS PRO X3D
Gigabyte X870E AORUS PRO X3D
Key Features
- X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI
- DDR5 OC up to 9000MT/s
- DriverBIOS : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 18+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
- M.2 EZ-Flex : high-efficiency heat dissipation & flexible patented baseplate for M.2 SSD
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- M.2 EZ-Latch Click & Plus : Quick Release & Screwless Design on M.2 slots and heatsinks
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage : 4*M.2 slots, including PCIe 5.0 x4
- PCB Thermal Plate : 14% thermal improvement and reinforced motherboard stability.
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L & M.2 Thermal Guard Ext.
- Fast Networking : 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity : HDMI, Dual USB4 Type-C with DP-Alt, Front QC-USB 65W
- PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
CPU
AMD Socket AM5, support for:
AMD Ryzen™ 9000 Series Processors/
AMD Ryzen™ 8000 Series Processors/
AMD Ryzen™ 7000 Series Processors
(Go to GIGABYTE’s website for the latest CPU support list.)
AMD Ryzen™ 9000 Series Processors/
AMD Ryzen™ 8000 Series Processors/
AMD Ryzen™ 7000 Series Processors
(Go to GIGABYTE’s website for the latest CPU support list.)
Chipset
AMD X870E
Memory
Support for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C.)/ 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules.
USB
CPU+ASMedia USB4® controller:
– 2 x USB4® USB Type-C® ports on the back pane
CPU:
– 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
Chipset+USB 3.2 Gen 1 Hub:
– 4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset:
– 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header (Supports up to 65W PD 3.0/QC 4+ fast charging)
* For precautions regarding the fast charging function, refer to “USB Type-C® Header” in Chapter 2-7, “Internal Connectors.”
– 2 x USB4® USB Type-C® ports on the back pane
CPU:
– 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
Chipset+USB 3.2 Gen 1 Hub:
– 4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset:
– 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header (Supports up to 65W PD 3.0/QC 4+ fast charging)
* For precautions regarding the fast charging function, refer to “USB Type-C® Header” in Chapter 2-7, “Internal Connectors.”
– 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
– 5 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
– 3 x USB 3.2 Gen 1 ports on the back panel
– 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x PCIe power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
4 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x HDMI port (Note)
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
2 x temperature sensor headers
1 x reset jumper
1 x Clear CMOS jumper
2 x 8-pin ATX 12V power connectors
1 x PCIe power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
4 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x HDMI port (Note)
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
2 x temperature sensor headers
1 x reset jumper
1 x Clear CMOS jumper
(Note) Actual support may vary by CPU.
Back Panel Connectors
1 x HDMI port (Note)
1 x reset button
1 x power button
1 x Clear CMOS button
1 x Q-Flash Plus button
5 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB Type-C® ports, with USB 3.2 Gen 2 support
2 x USB4® USB Type-C® ports (DisplayPort (Note))
1 x RJ-45 port
3 x USB 3.2 Gen 1 ports
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
1 x reset button
1 x power button
1 x Clear CMOS button
1 x Q-Flash Plus button
5 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB Type-C® ports, with USB 3.2 Gen 2 support
2 x USB4® USB Type-C® ports (DisplayPort (Note))
1 x RJ-45 port
3 x USB 3.2 Gen 1 ports
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
(Note) Actual support may vary by CPU.
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1 x 512 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
