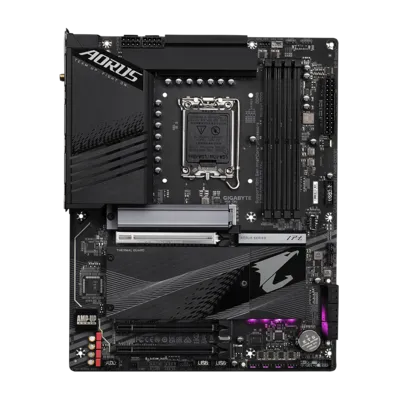

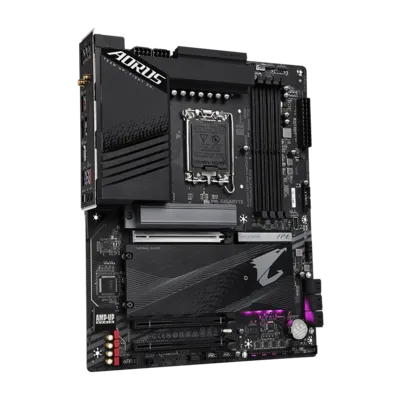

Gigabyte Z790 AORUS ELITE AX
Original price was: ₹46,743.00.₹26,045.00Current price is: ₹26,045.00.
- Platform: High-performance ATX motherboard based on the Intel Z790 chipset for modern desktop builds.
- CPU Support: Compatible with Intel® 14th, 13th & 12th Gen Core™, Pentium® Gold, and Celeron® processors using the LGA 1700 socket.
- Memory: 4 × DDR5 DIMM slots with support up to DDR5-7600(O.C.) and 256 GB total.
- Expansion: PCIe 5.0 x16 slot for next-gen GPUs and additional PCIe 4.0 slots for other cards.
- Storage: Multiple M.2 slots (PCIe 4.0) and 6 × SATA 6 Gb/s connectors with RAID support.
Out of stock
Gigabyte Z790 AORUS ELITE AX
Gigabyte Z790 AORUS ELITE AX
Key Feature
- Intel® Socket LGA 1700：Support 13th and 12th Gen Series Processors
- Unparalleled Performance：Twin 16*+1+2 Phases Digital VRM Solution
- Dual Channel DDR5：4*SMD DIMMs with XMP 3.0 Memory Module Support
- Next Generation Storage：4*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard III: To Ensure VRM Power Stability & M.2 SSD Performance
- EZ-Latch Plus：M.2 Connectors with Quick Release & Screwless Design
- Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity：DP, HDMI, Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
* 8+8 phases parallel power design
CPU
- LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
- L3 cache varies with CPU
Chipset
- Intel® Z790 Express Chipset
Memory
- Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules, 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory, Dual channel memory architecture, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules.
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)
-
CPU Support: Intel LGA 1700 socket — supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors.
-
Chipset: Intel® Z790 Express for high-performance features and overclocking.
-
Memory:
-
4 × DDR5 DIMM sockets, dual-channel architecture.
-
Supports DDR5 memory up to ~7600 MHz (OC) and up to 256 GB total.
-
Supports XMP profiles.
-
-
Graphics Outputs:
-
1 × HDMI (up to 4K @ 60 Hz).
-
1 × DisplayPort (up to 4K @ 60 Hz).
(Requires CPU with integrated graphics.)
-
🧠 Expansion & Storage
-
PCIe Slots:
-
1 × PCIe 5.0 x16 slot (for GPU).
-
2 × PCIe 4.0 x16 slots (x4 mode for add-on cards).
-
-
M.2 & SATA:
-
4 × M.2 slots (PCIe 4.0 x4 and SATA support).
-
6 × SATA 6 Gb/s ports (RAID support).
-
🌐 Connectivity
-
LAN: Realtek® 2.5 GbE Ethernet.
-
Wireless: Intel® Wi-Fi 6E (802.11ax) + Bluetooth 5.3.
-
USB Ports:
-
Rear: 1 × USB-C (USB 3.2 Gen2×2), 1 × USB-C (USB 3.2 Gen2), multiple USB-A ports.
-
Internal: USB headers for front panel.
-
🔌 Additional Features
-
Audio: High-definition Realtek® audio codec with multi-channel support.
-
Thermal: Advanced heatsinks and M.2 Thermal Guard III to manage heat.
-
Power & VRM: Twin 16+1+2 phase digital VRM for stable power delivery.
-
Fan & Cooling: Smart Fan 6 with hybrid fan headers and temperature sensors.
-
BIOS Tools: Q-Flash Plus for BIOS updates without CPU installed
