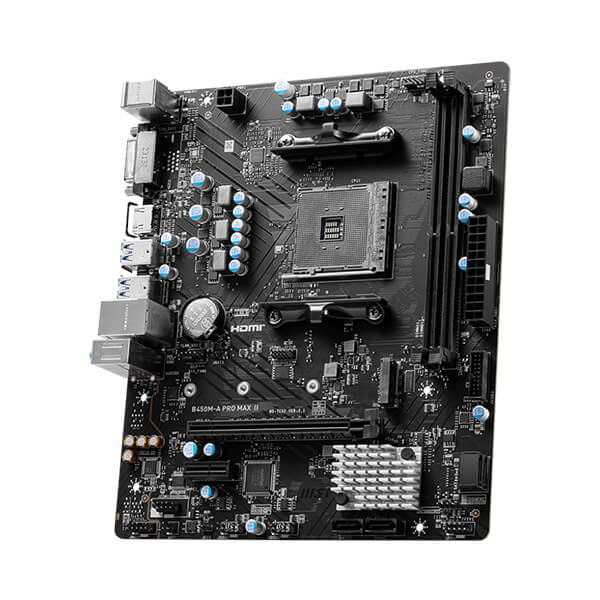

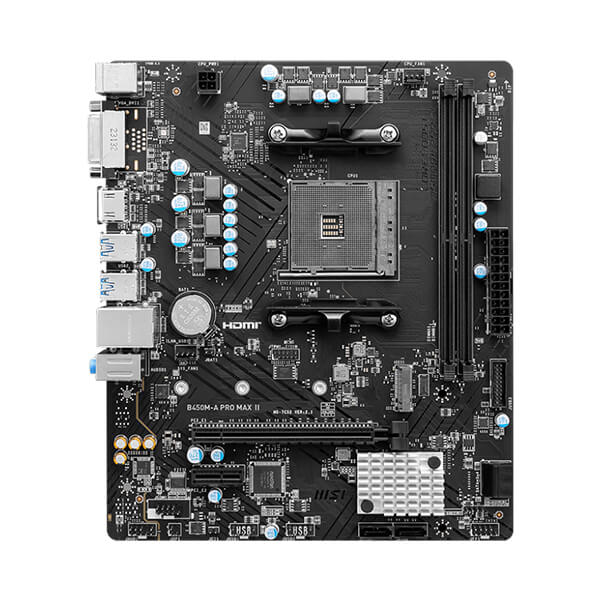

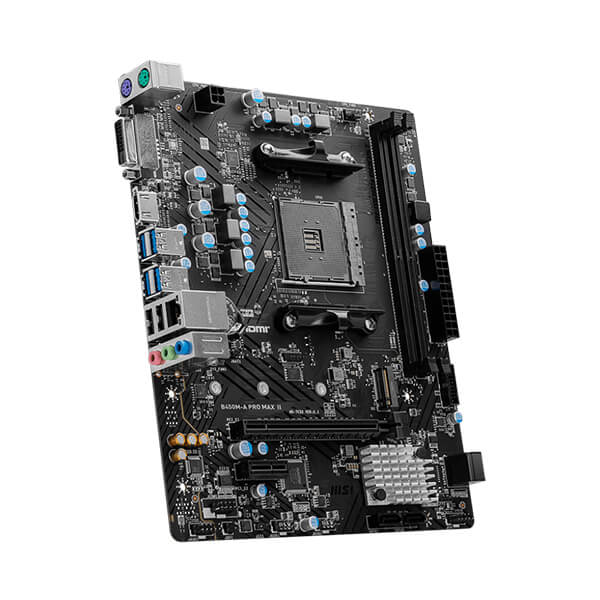

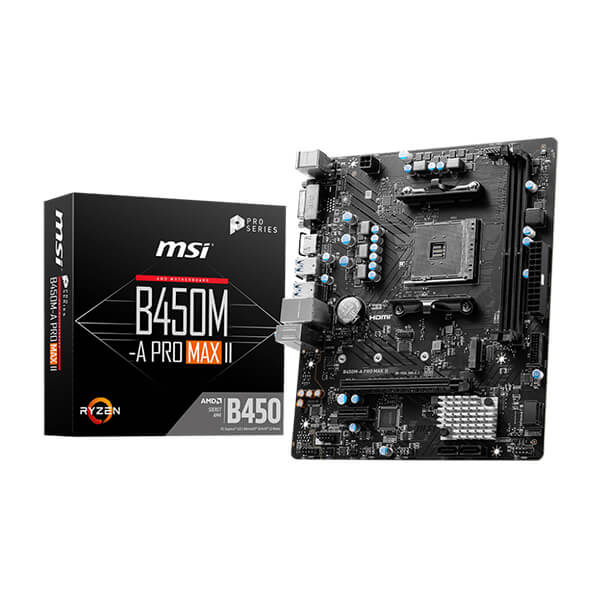

MSI B450M-A Pro Max II Motherboard
Original price was: ₹12,750.00.₹6,099.00Current price is: ₹6,099.00.
The MSI B450M-A PRO MAX II Micro-ATX Motherboard is a compact AM4 motherboard designed for AMD Ryzen processors and affordable gaming or everyday PC builds. It supports DDR4 memory, PCIe 3.0 graphics, M.2 NVMe storage and fast 2.5GbE wired networking in a space-saving design. With reliable power delivery and MSI EZ Debug features, it provides a practical foundation for budget-friendly performance systems.
MSI B450M-A Pro Max II Motherboard
Features
- AMD B450 Chipset: Supports AMD Ryzen™ processors with the AM4 socket, including Ryzen 5000 Series with a compatible BIOS.
- Micro-ATX Form Factor: Compact design is ideal for space-efficient gaming, office and everyday PC builds.
- DDR4 Memory Support: Features 2 DDR4 DIMM slots with support for up to 64GB of system memory.
- High-Speed DDR4: Supports DDR4 memory speeds up to 4400+ MHz (OC) depending on the processor and memory configuration.
- PCIe 3.0 x16 Slot: Provides dedicated graphics card support for gaming and general-purpose graphics workloads.
- M.2 NVMe Storage: Includes an M.2 slot supporting PCIe 3.0 x4 NVMe SSDs for fast storage performance.
- SATA Connectivity: Provides multiple SATA 6Gb/s ports for additional SSD and hard-drive storage.
- Gigabit LAN: Realtek 8125BG 2.5GbE networking provides fast wired connectivity for gaming and file transfers.
- MSI Core Boost & EZ Debug: Optimized power delivery and EZ Debug LED help provide stable operation and easier troubleshooting.
Specifications
| Brand | MSI |
| Model | B450M-A PRO MAX II |
| Form Factor | Micro-ATX |
| Chipset | AMD B450 |
| CPU Socket | AM4 |
| CPU Support | AMD Ryzen™ 5000 / 4000 / 3000 Series* |
| Memory Type | DDR4 |
| Memory Slots | 2 × DDR4 DIMM |
| Maximum Memory | Up to 64GB |
| Memory Speed | Up to DDR4-4400+ MHz (OC)* |
| Memory Support | Dual Channel, AMD Memory Profiles |
| Primary PCIe Slot | PCIe 3.0 x16 |
| Additional PCIe Slot | PCIe 2.0 x1 |
| M.2 Slots | 1 × M.2 |
| M.2 Interface | PCIe 3.0 x4 / SATA |
| SATA Ports | 4 × SATA 6Gb/s |
| LAN | Realtek 8125BG 2.5GbE |
| Wireless | Not Included |
| Bluetooth | Not Included |
| Audio | 7.1-Channel High Definition Audio |
| HDMI | HDMI |
| VGA | VGA |
| USB | USB 2.0 & USB 3.2 Gen 1 Type-A |
| Power Design | Core Boost Power Design |
| Cooling | VRM Heatsink |
| BIOS Features | EZ Debug LED |
| RGB | MSI Mystic Light |
| Operating System | Windows 10 / Windows 11 64-bit |
