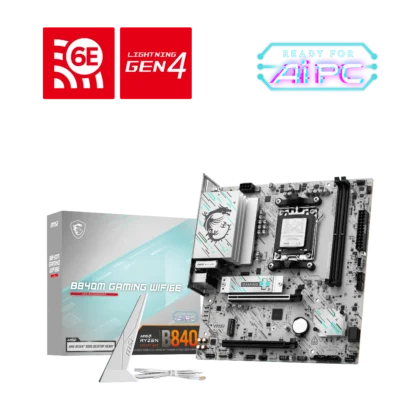

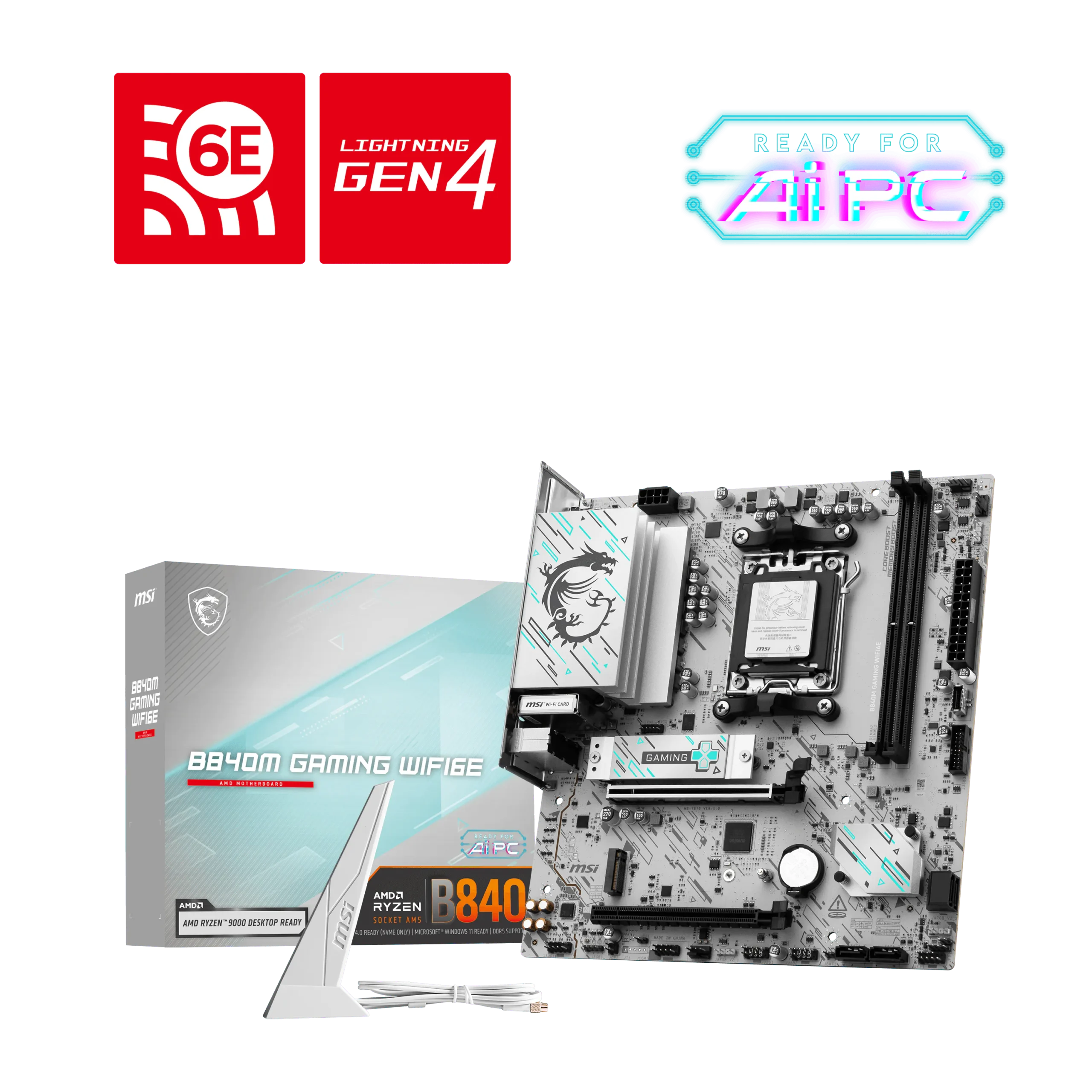

MSI B840M GAMING WIFI6E
Original price was: ₹13,299.00.₹11,099.00Current price is: ₹11,099.00.
- 📶 Built‑in Wi‑Fi 6E: Provides access to 6 GHz wireless bands for faster, lower‑latency connections compared with regular Wi‑Fi.
- 📈 Future‑Ready Connectivity: PCIe 4.0 and dual NVMe support make it suitable for modern GPUs and high‑speed storage setups.
- 💻 Compact but Capable: Micro‑ATX form factor doesn’t sacrifice performance features for smaller builds.
- 🔧 Stable Power & Cooling: Enhanced VRM design and thermal solutions keep the system solid under heavier gaming or workload scenarios.
- 🛠️ Build‑Friendly Features: BIOS flash and CMOS buttons simplify setup and updates.
- 💡 Balanced Feature Set: Good mix of networking, expansion, and durability for compact AMD builds.
MSI B840M GAMING WIFI6E
MSI B840M GAMING WIFI6E
The MSI B840M Gaming WIFI6E is a modern micro‑ATX gaming motherboard designed for AMD’s AM5 platform with support for Ryzen 9000, 8000, and 7000 series processors. It blends strong connectivity, performance‑oriented design, and built‑in Wi‑Fi 6E to deliver a solid foundation for compact gaming and productivity builds using DDR5 memory.
This board is ideal if you’re building a small form‑factor gaming PC that doesn’t compromise on high‑speed networking, fast storage, and modern expansion options. Its compact Micro‑ATX footprint still packs a complete feature set with PCIe 4.0 support, dual M.2 slots, and enhanced power delivery for stable performance under load.
KEY FEATURES
- 🧠 AM5 Socket + AMD Ryzen Support – Works with AMD Ryzen 9000/8000/7000 series desktop CPUs.
- 🧩 DDR5 Memory Support – Dual‑channel DDR5 memory (up to 8000+ MT/s OC) with EXPO/A‑XMP support.
- ⚡ PCIe 4.0 x16 Slot – High‑speed GPU interface directly from the CPU for maximum graphics performance.
- 💽 Dual M.2 Slots (PCIe 4.0) – Two high‑speed NVMe SSD slots for fast storage and quick load times.
- 🌐 Wi‑Fi 6E & Bluetooth 5.3 – Pre‑installed wireless module with support for 6 GHz band and Bluetooth connectivity.
- 🌐 2.5G LAN – Fast wired networking for gaming and streaming.
- 🎮 Enhanced Power Delivery – 7+2+1 phase power system with Core Boost and digital PWM for stable performance.
- 🧊 Cooling & Build Ready – Extended heatsinks, M.2 Shield Frozr, and solid PCB design for sustained performance.
- 🔄 Flash BIOS Button & Clear CMOS – Easy BIOS updates and recovery without needing CPU installed.
- 🔊 7.1‑Channel HD Audio – Realtek audio codec for immersive sound.
SPECIFICATIONS
| Chipset | AMD B840 |
|---|---|
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
|
| Memory | 2x DDR5 UDIMM, Maximum Memory Capacity 128GB Memory Support DDR5 8000 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8000+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s Supports AMD POR Speed and JEDEC Speed |
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* |
| Slot | 2x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset) PCI_E1 slot |
