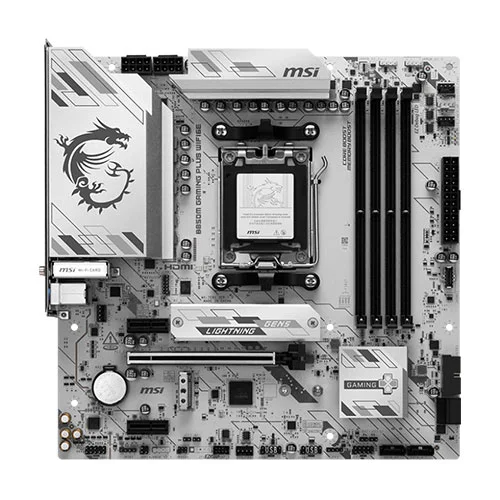

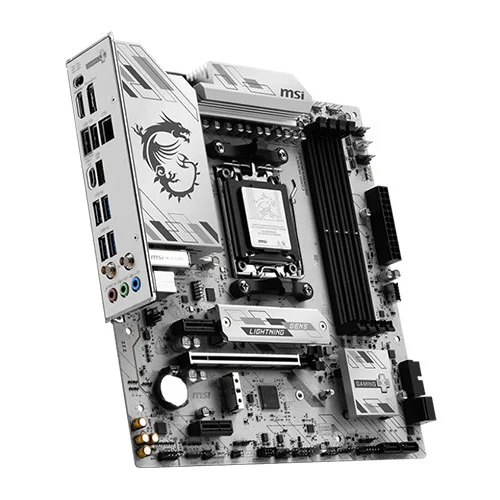

MSI B850M Gaming Plus WIFI6E M-ATX Motherboard
Original price was: ₹30,299.00.₹15,999.00Current price is: ₹15,999.00.
The MSI B850M GAMING PLUS WIFI6E Micro-ATX Motherboard is designed for AMD Ryzen 9000, 8000 and 7000 Series processors on the AM5 platform. It features DDR5 memory up to 8200+ MT/s, PCIe 4.0 graphics support, PCIe 5.0 M.2 storage, Wi-Fi 6E and 2.5GbE LAN. With a 10+2+1 power design, advanced cooling and EZ DIY features, it is an excellent choice for compact gaming and high-performance PC builds.
MSI B850M Gaming Plus WIFI6E M-ATX Motherboard
Features
- AMD B850 Chipset: Supports AMD Ryzen™ 9000, 8000 and 7000 Series desktop processors with the AM5 socket.
- Micro-ATX Form Factor: Compact 243.84 × 243.84mm design is ideal for space-efficient gaming and high-performance PC builds.
- 10+2+1 Duet Rail Power System: Uses P-PAK power stages, dual 8-pin CPU power connectors and Core Boost technology for stable processor performance.
- High-Speed DDR5 Memory: Supports up to 256GB DDR5 with speeds up to 8200+ MT/s (OC) and AMD EXPO technology.
- PCIe 4.0 Graphics Support: The main PCIe slot supports up to PCIe 4.0 x16 with Ryzen 9000/7000 Series processors.
- PCIe 5.0 M.2 Storage: The primary M.2 slot supports PCIe 5.0 x4, while the second M.2 slot supports PCIe 4.0 x4.
- Wi-Fi 6E Connectivity: Tri-band Wi-Fi 6E supports 2.4GHz, 5GHz and 6GHz with speeds up to 2.4Gbps.
- 2.5G LAN: Realtek 8125D 2.5Gb Ethernet provides fast and reliable wired networking for gaming and data transfers.
- Frozr Guard & EZ DIY: Extended heatsinks, MOSFET thermal pads, M.2 Shield Frozr, EZ M.2 Clip II, EZ-Conn and EZ Antenna simplify cooling and installation.
Specifications
| Brand | MSI |
| Model | B850M GAMING PLUS WIFI6E |
| Form Factor | Micro-ATX (mATX) |
| Dimensions | 243.84 × 243.84 mm |
| Chipset | AMD B850 |
| CPU Socket | AM5 |
| CPU Support | AMD Ryzen™ 9000 / 8000 / 7000 Series |
| Memory Type | DDR5 UDIMM |
| Memory Slots | 4 × DDR5 |
| Maximum Memory | 256GB |
| Memory Speed | DDR5-8200+ MT/s (OC) |
| Memory Support | AMD EXPO, Dual Channel, Non-ECC Unbuffered, CUDIMM |
| Primary PCIe Slot | PCIe 4.0 x16 |
| Additional PCIe Slots | 2 × PCIe 3.0 x1 |
| M.2 Slots | 2 × M.2 |
| Primary M.2 | PCIe 5.0 x4 |
| Secondary M.2 | PCIe 4.0 x4 |
| SATA | 4 × SATA 6Gb/s |
| LAN | Realtek 8125D 2.5GbE |
| Wireless | Wi-Fi 6E |
| Wi-Fi Speed | Up to 2.4Gbps |
| Wi-Fi Bands | 2.4GHz / 5GHz / 6GHz |
| Bluetooth | Bluetooth 5.3 |
| Audio Codec | Realtek ALC897 |
| Audio | 7.1-Channel High Definition Audio |
| HDMI | HDMI 2.1, up to 4K 60Hz |
| DisplayPort | DisplayPort 1.4, up to 4K 60Hz |
| Rear USB | USB 5Gbps & 10Gbps Type-A, USB 10Gbps Type-C |
| Front USB | USB 2.0, USB 5Gbps Type-A, USB 10Gbps Type-C |
| Power Design | 10+2+1 Duet Rail Power System |
| PCB | 6-layer PCB, 2oz thickened copper |
| Cooling | Extended Heatsink, MOSFET Thermal Pads, M.2 Shield Frozr |
| BIOS Features | Flash BIOS Button, Clear CMOS |
| Operating System | Windows 11 64-bit |
