MSI B860M GAMING PLUS WIFI
Original price was: ₹19,309.00.₹17,709.00Current price is: ₹17,709.00.
- ✅ Supports latest Intel Core Ultra processors (LGA 1851 socket)
- ✅ DDR5 memory support up to 256GB (high-speed overclocking ready)
- ✅ Built-in Wi-Fi 7 + high-speed LAN for ultra-fast networking
- ✅ PCIe 5.0 slot for next-gen graphics cards
- ✅ Lightning-fast M.2 Gen5 SSD support
- ✅ Advanced thermal design with extended heatsinks
- ✅ EZ DIY features for hassle-free installation
- ✅ High-quality onboard audio for immersive gaming
- ✅ Compact Micro-ATX form factor (ideal for smaller builds)
MSI B860M GAMING PLUS WIFI
MSI B860M GAMING PLUS WIFI

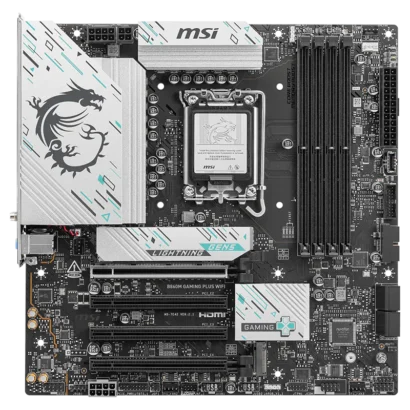

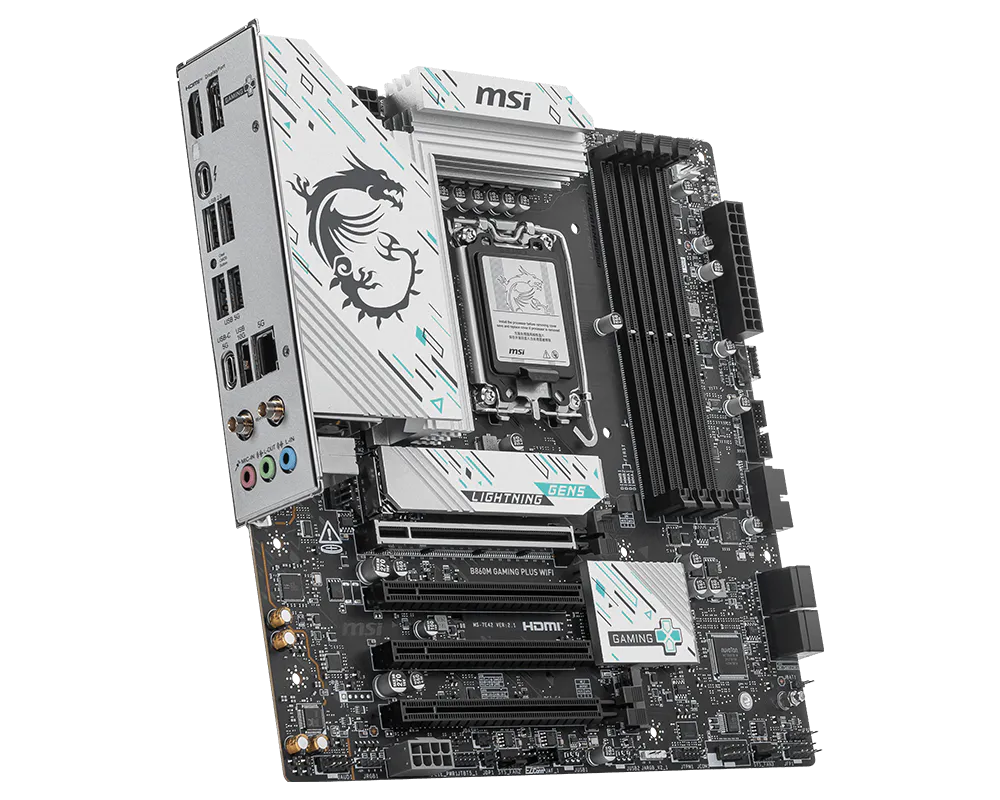

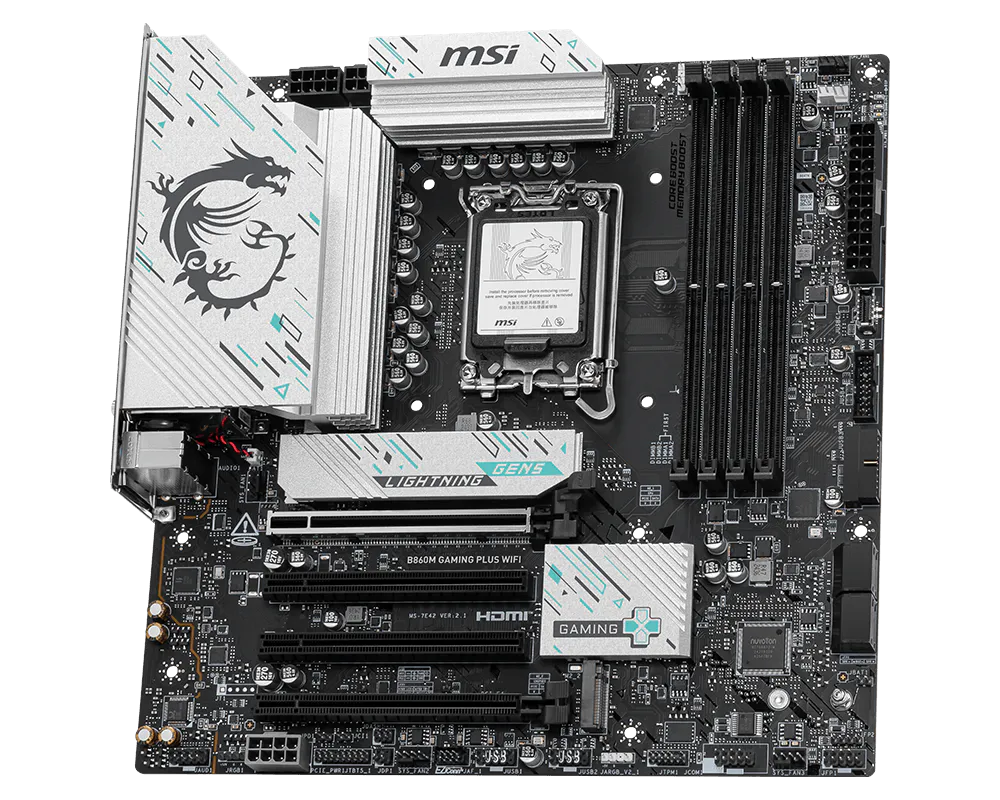

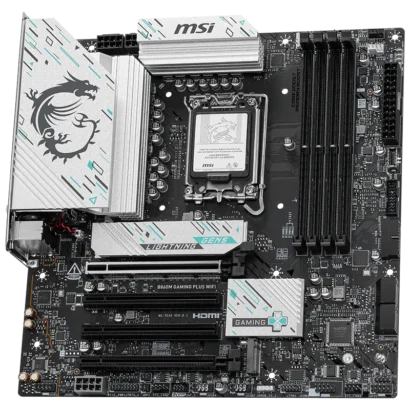

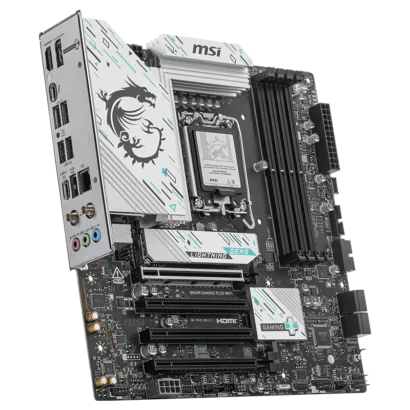

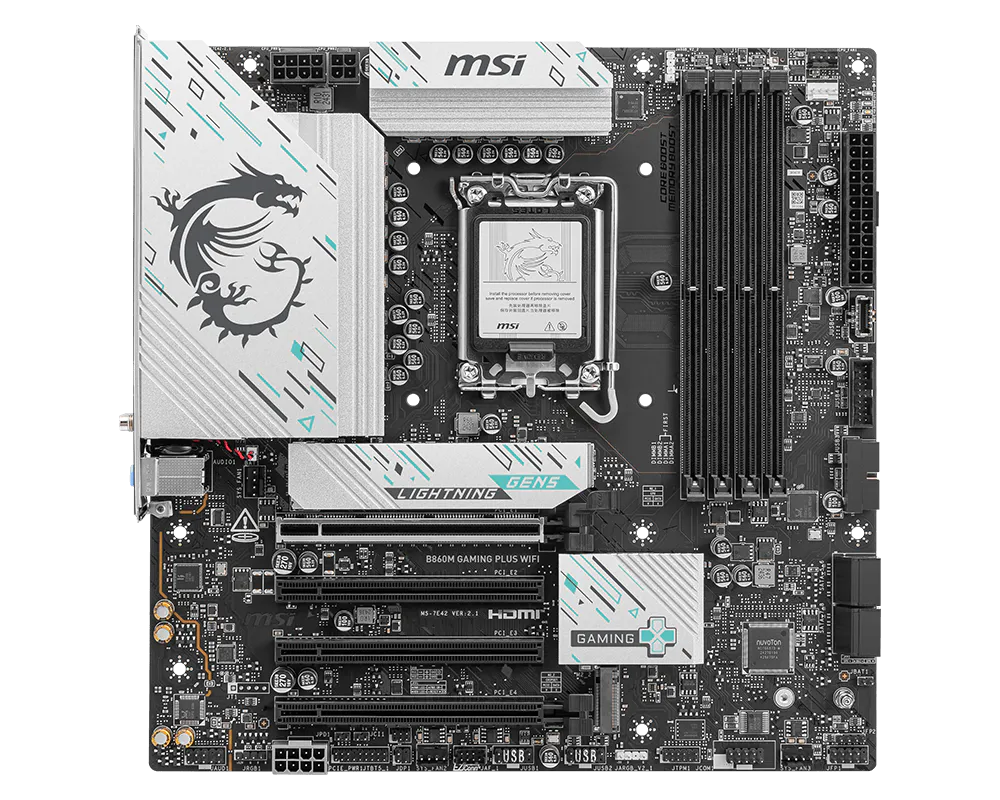

The MSI B860M GAMING PLUS WIFI is a high-performance Micro-ATX motherboard engineered for gamers and PC enthusiasts seeking cutting-edge technology in a compact form factor. Built on the Intel B860 chipset and designed for the latest Intel Core Ultra (Series 2) processors, it delivers exceptional speed, stability, and future-ready connectivity for modern gaming and productivity builds
Key Features
- Next-Gen Performance
Supports Intel Core Ultra processors on the LGA 1851 socket, paired with a robust 12+1+1+1 power delivery system for stable performance under heavy workloads. - Ultra-Fast DDR5 Memory
Equipped with 4 DIMM slots supporting up to 256GB DDR5 RAM with speeds exceeding 8600+ MT/s (OC), ensuring lightning-fast responsiveness. - Advanced Connectivity
Features Wi-Fi 7, 5G LAN, and Thunderbolt 4 support for ultra-fast networking, low latency, and seamless data transfer. - PCIe 5.0 & Storage Speed
Includes a PCIe 5.0 x16 slot and next-gen M.2 Gen5 storage support for maximum GPU and SSD performance. - Enhanced Cooling Design
Built with extended heatsinks, MOSFET thermal pads, and M.2 Shield Frozr to maintain optimal temperatures during intense gaming sessions. - EZ DIY & Build-Friendly Features
Simplified installation with EZ M.2 clips, PCIe release, and antenna setup—perfect for both beginners and experienced builders. - Immersive Audio Experience
Integrated Audio Boost technology delivers high-quality, studio-grade sound for gaming and entertainment.
SPECIFICATIONS
| Chipset | INTEL B860 |
|---|---|
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
|
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 8800 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel® POR Speed and JEDEC Speed
|
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* |
| Slot | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
|
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio
|
| Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices 4x SATA 6G |
