MSI B860M GAMING WIFI
Original price was: ₹15,498.00.₹13,437.00Current price is: ₹13,437.00.
- ✅ Supports Intel Core Ultra processors (LGA 1851 socket)
- ✅ DDR5 memory support up to 128GB
- ✅ Built-in Wi-Fi 7 + Bluetooth 5.4
- ✅ PCIe 5.0 x16 slot for next-gen GPUs
- ✅ Dual M.2 slots (Gen5 + Gen4) for fast storage
- ✅ 5G LAN for high-speed wired networking
- ✅ Compact Micro-ATX design for smaller builds
- ✅ HDMI + DisplayPort support for integrated graphics
- ✅ EZ Debug & DIY-friendly design
- ✅ Great value entry-level gaming motherboard

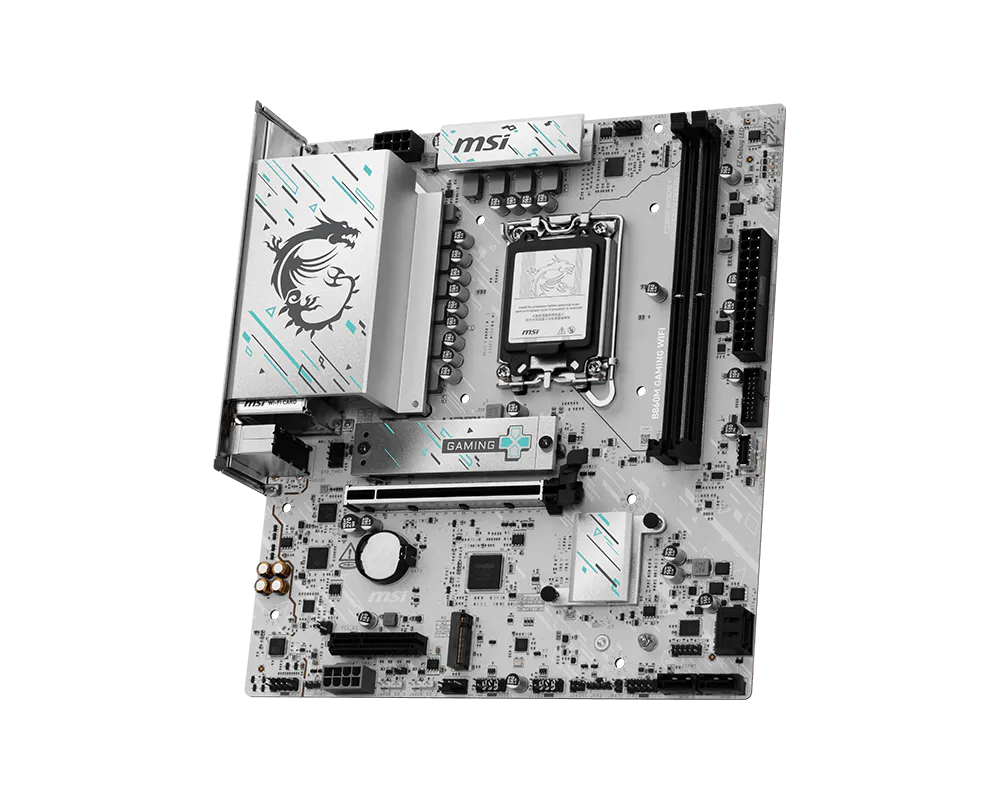

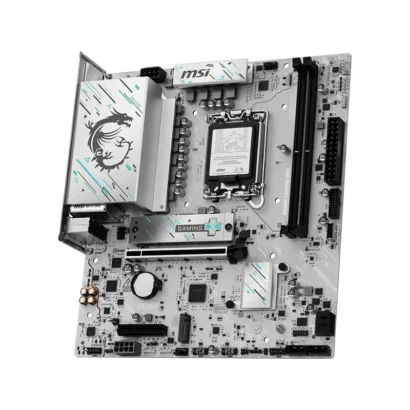

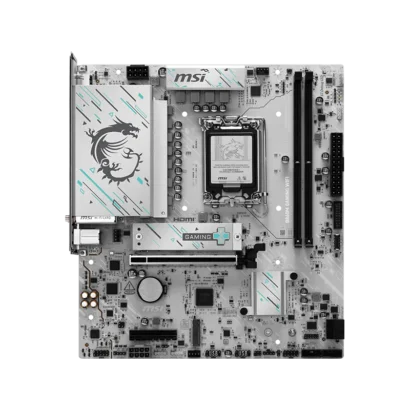

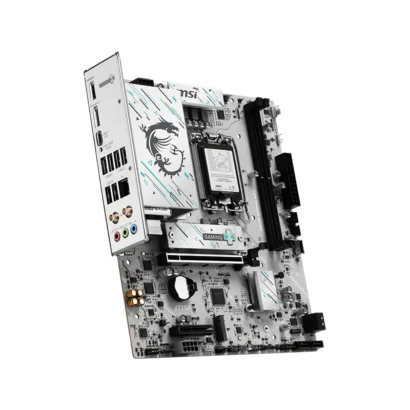

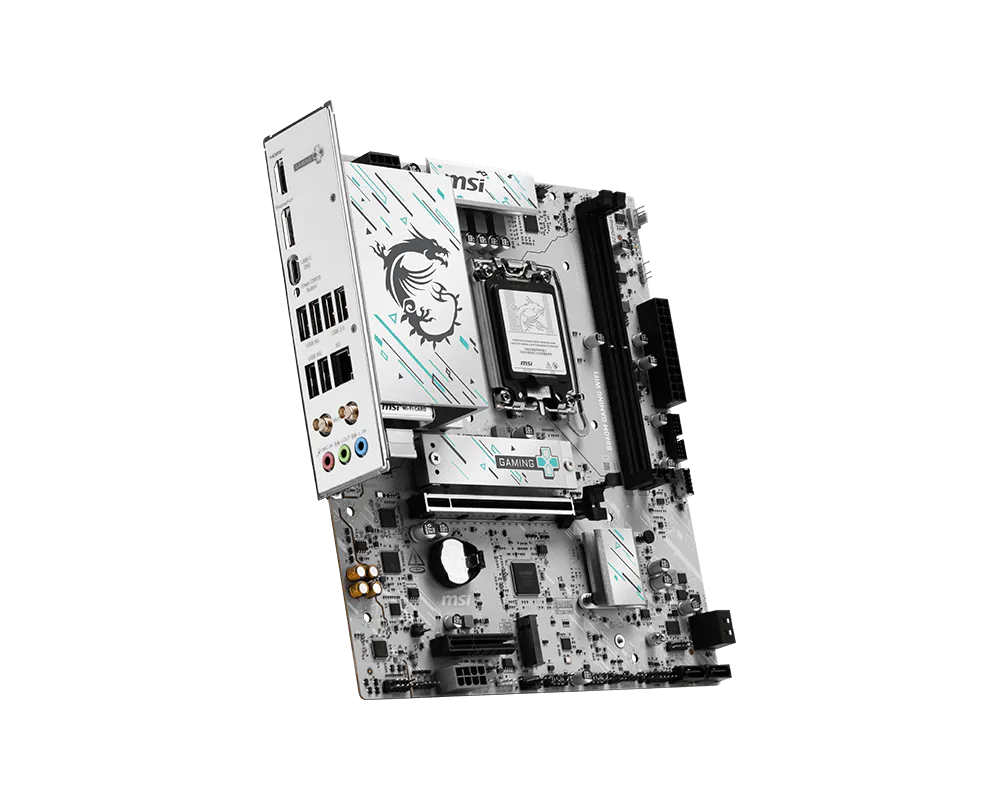

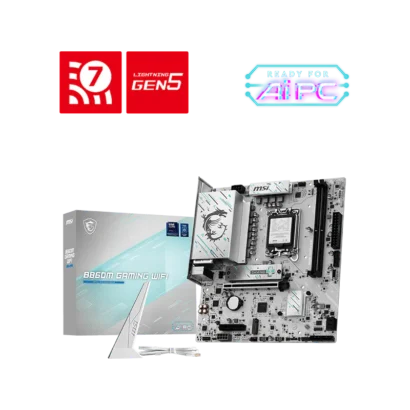

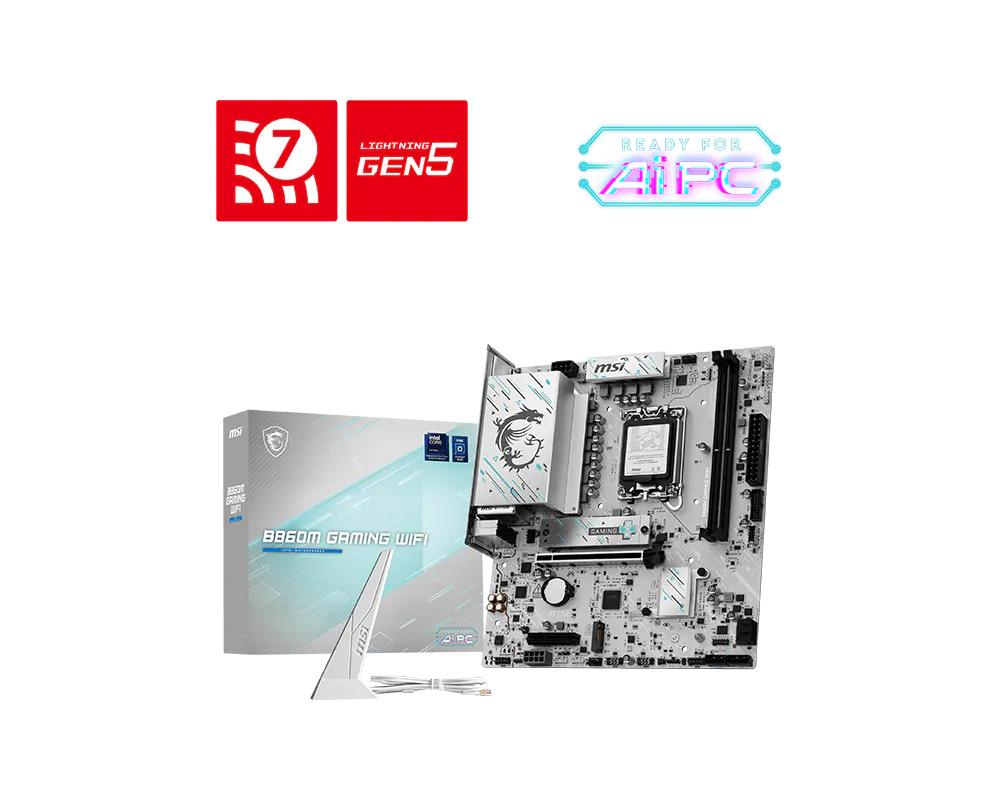

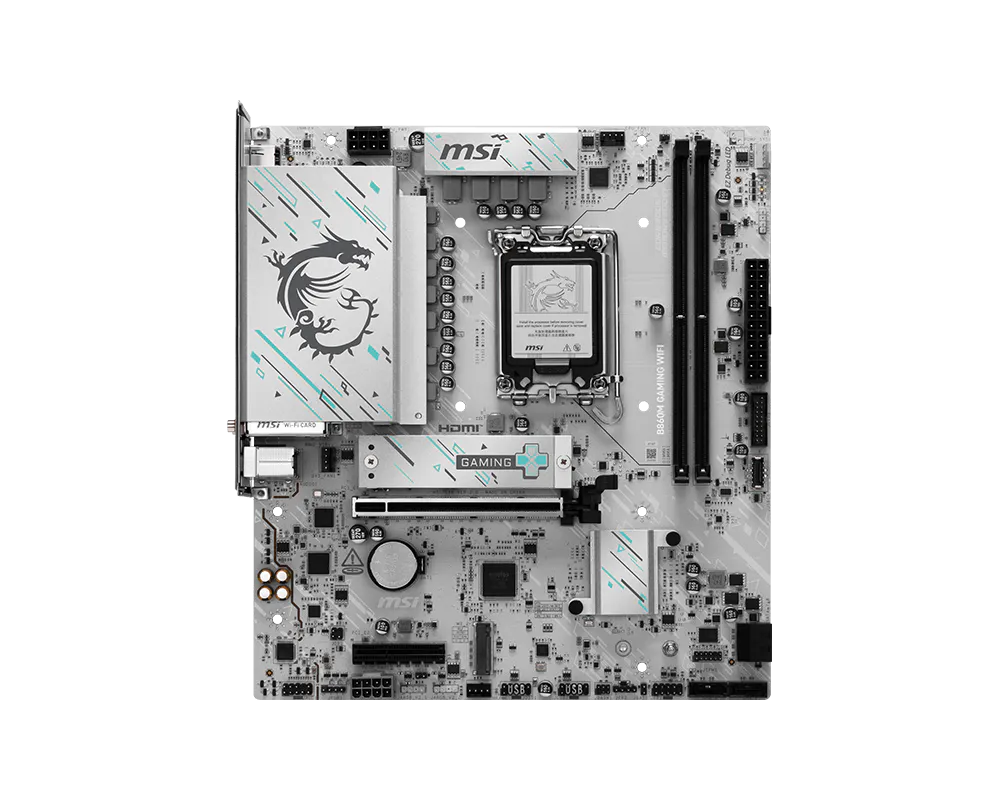

MSI B860M GAMING WIFI
MSI B860M GAMING WIFI
The MSI B860M GAMING WIFI is a compact and performance-focused Micro-ATX motherboard designed for gamers and everyday PC builders who want next-gen features without overspending. Built on the Intel B860 chipset and supporting Intel Core Ultra (Series 2) processors, it offers a balanced mix of speed, connectivity, and reliability.
Key Features
- Next-Gen Intel Platform (LGA 1851)
Compatible with Intel Core Ultra processors, ensuring strong performance and future-ready support. - DDR5 Memory Performance
Features 2 DIMM slots supporting up to 128GB DDR5 RAM with speeds exceeding 9000+ MT/s (OC). - PCIe 5.0 Graphics Support
Equipped with a PCIe 5.0 x16 slot delivering maximum bandwidth for modern GPUs. - Fast Storage Options
Includes 2× M.2 slots (1× Gen5 + 1× Gen4) and 4× SATA ports for flexible and high-speed storage setups. - Wi-Fi 7 + 5G LAN Connectivity
Provides ultra-fast wireless speeds (up to ~2.9Gbps) and reliable wired networking for gaming and streaming. - Advanced Connectivity Ports
Includes USB Type-C (up to 20Gbps), multiple USB ports, HDMI, and DisplayPort for versatile connectivity. - Audio Boost (7.1 HD Audio)
Powered by Realtek ALC897 codec for immersive sound quality in gaming and media. - Compact Micro-ATX Form Factor
Ideal for space-efficient builds without sacrificing essential features. - DIY-Friendly Features
Includes EZ Debug LEDs and simple layout for easier building and troubleshooting.
SPECIFICATIONS
| Chipset | INTEL B860 |
|---|---|
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
|
| Memory | 2x DDR5 UDIMM, Maximum Memory Capacity 128GB Memory Support DDR5 9066 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9066+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s Supports Intel® POR Speed and JEDEC Speed
|
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* |
| Slot | 1x PCI-E x16 slot 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
|
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio
|
| Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
