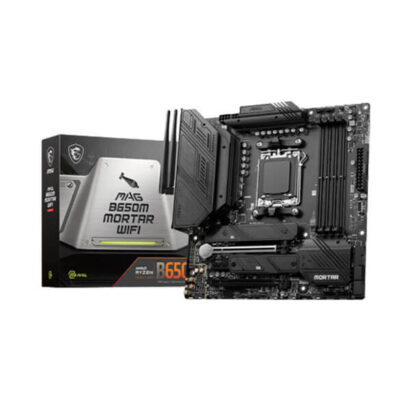

MSI MAG B650M Mortar WIFI M-ATX Motherboard
Original price was: ₹45,999.00.₹21,599.00Current price is: ₹21,599.00.
The MSI MAG B650M MORTAR WIFI Micro-ATX Motherboard is a powerful AM5 motherboard designed for AMD Ryzen processors and high-performance gaming systems. It features DDR5 memory, PCIe 4.0 graphics and dual M.2 storage, along with Wi-Fi 6E and 2.5GbE LAN for fast connectivity. With robust power delivery, premium audio and advanced cooling, it is an excellent foundation for a compact gaming PC.
MSI MAG B650M Mortar WIFI M-ATX Motherboard
Features
- AMD B650 Chipset: Supports AMD Ryzen™ 7000, 8000 and 9000 Series desktop processors with the AM5 socket.
- 12+2+1 Power Design: Robust power delivery with 80A power stages provides stable performance for demanding Ryzen processors.
- High-Speed DDR5 Memory: Supports up to 256GB DDR5 with AMD EXPO and high-speed memory overclocking.
- PCIe 4.0 x16 Graphics: Provides high-bandwidth connectivity for modern graphics cards.
- PCIe 4.0 M.2 Storage: Dual M.2 slots support high-speed NVMe SSDs for fast boot times and application loading.
- Wi-Fi 6E: Integrated Wi-Fi 6E delivers fast wireless networking across the 2.4GHz, 5GHz and 6GHz bands.
- 2.5G LAN: Realtek 8125BG 2.5Gb Ethernet provides fast and reliable wired networking.
- Premium Audio: Realtek audio hardware with high-definition multi-channel audio delivers immersive sound for gaming and entertainment.
- Extended Cooling & EZ DIY: Large heatsinks, M.2 Shield Frozr, EZ M.2 Clip and Flash BIOS Button help simplify installation and maintain stable temperatures.
Specifications
| Brand | MSI |
| Model | MAG B650M MORTAR WIFI |
| Form Factor | Micro-ATX |
| Chipset | AMD B650 |
| CPU Socket | AM5 |
| CPU Support | AMD Ryzen™ 7000 / 8000 / 9000 Series* |
| Memory Type | DDR5 |
| Memory Slots | 4 × DDR5 DIMM |
| Maximum Memory | Up to 256GB |
| Memory Support | AMD EXPO, Dual Channel, Non-ECC Unbuffered |
| Primary PCIe Slot | PCIe 4.0 x16 |
| Secondary PCIe Slot | PCIe 3.0 x1 |
| M.2 Slots | 2 × M.2 |
| Primary M.2 | PCIe 4.0 x4 |
| Secondary M.2 | PCIe 4.0 x4 |
| SATA Ports | 4 × SATA 6Gb/s |
| LAN | Realtek 8125BG 2.5GbE |
| Wireless | Wi-Fi 6E |
| Bluetooth | Bluetooth 5.2 |
| Audio Codec | Realtek ALC4080 |
| Audio | 7.1-Channel High Definition Audio |
| HDMI | HDMI 2.1 |
| DisplayPort | DisplayPort 1.4 |
| USB | USB 2.0, USB 5Gbps, USB 10Gbps & USB Type-C |
| Power Design | 12+2+1 Duet Rail Power System, 80A |
| PCB | 8-Layer PCB |
| Cooling | Extended Heatsink, MOSFET Thermal Pads, M.2 Shield Frozr |
| BIOS Features | Flash BIOS Button, Clear CMOS, EZ Debug LED |
| RGB | MSI Mystic Light |
| Operating System | Windows 11 64-bit |
