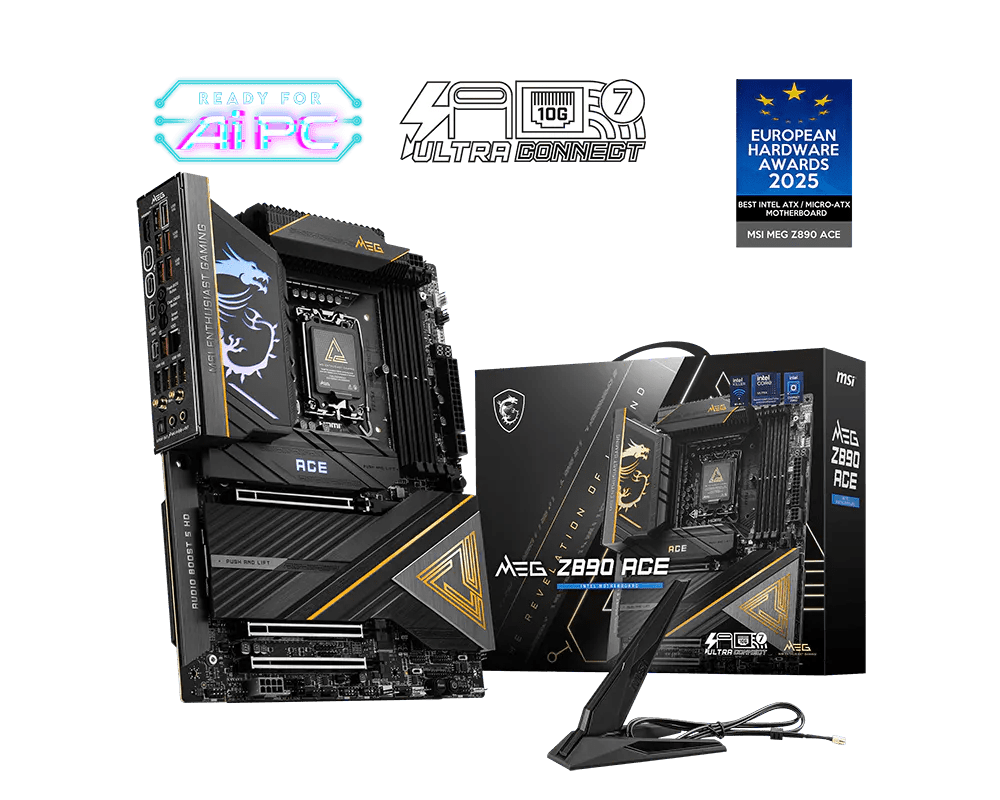

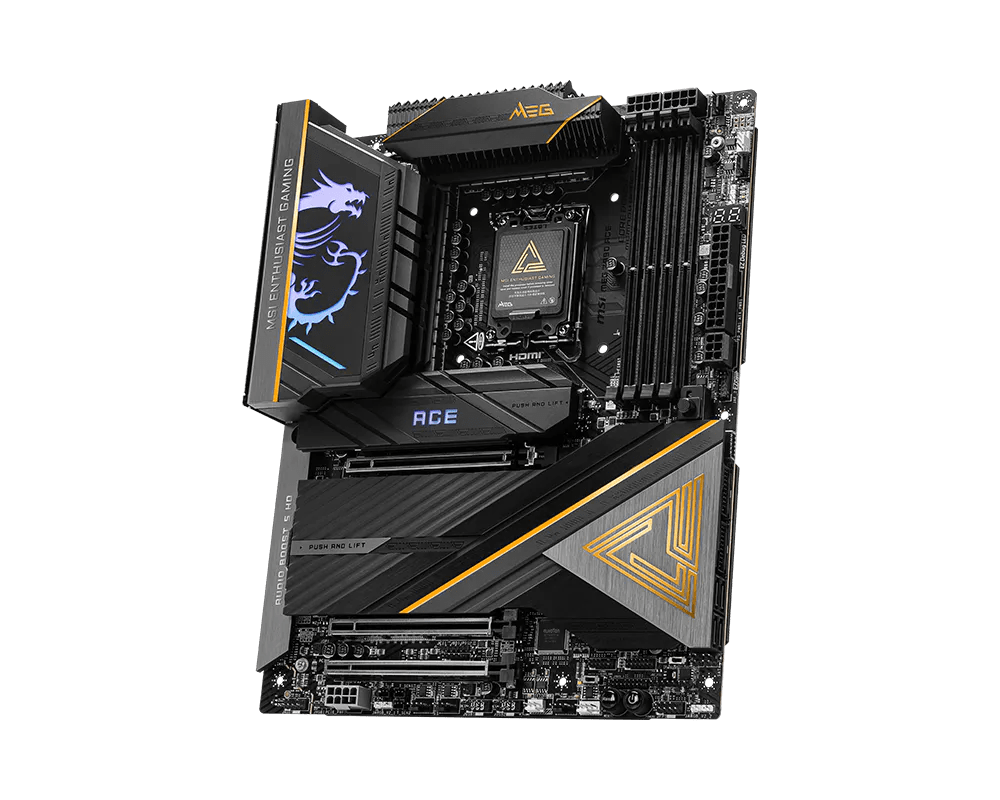

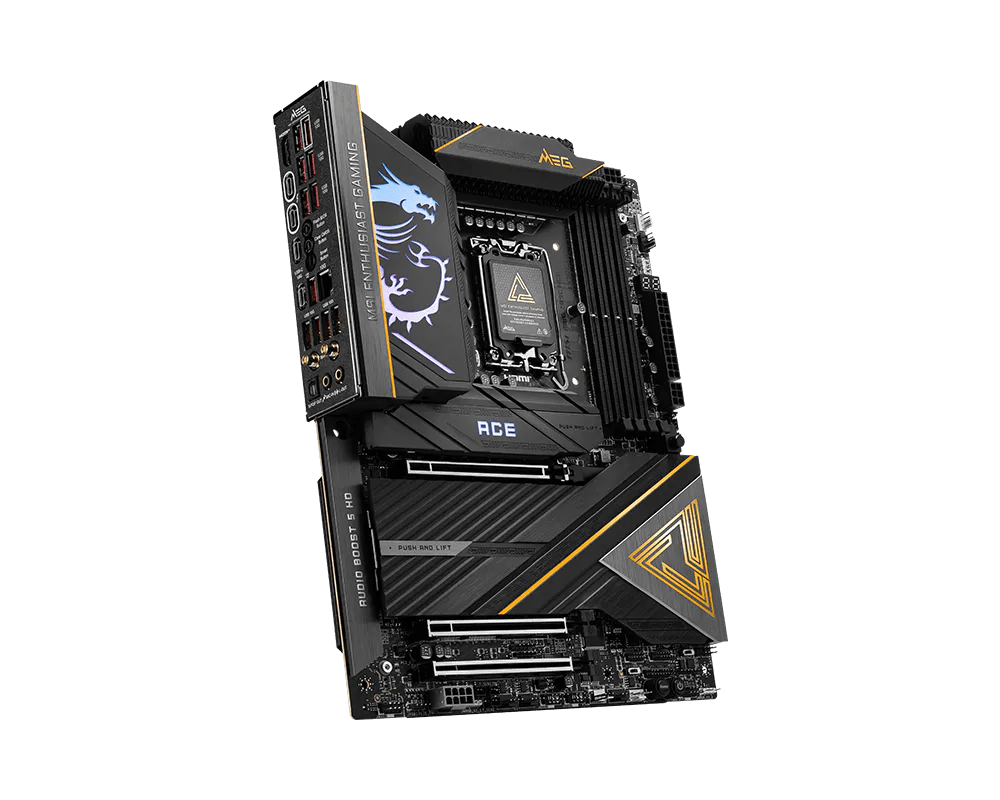

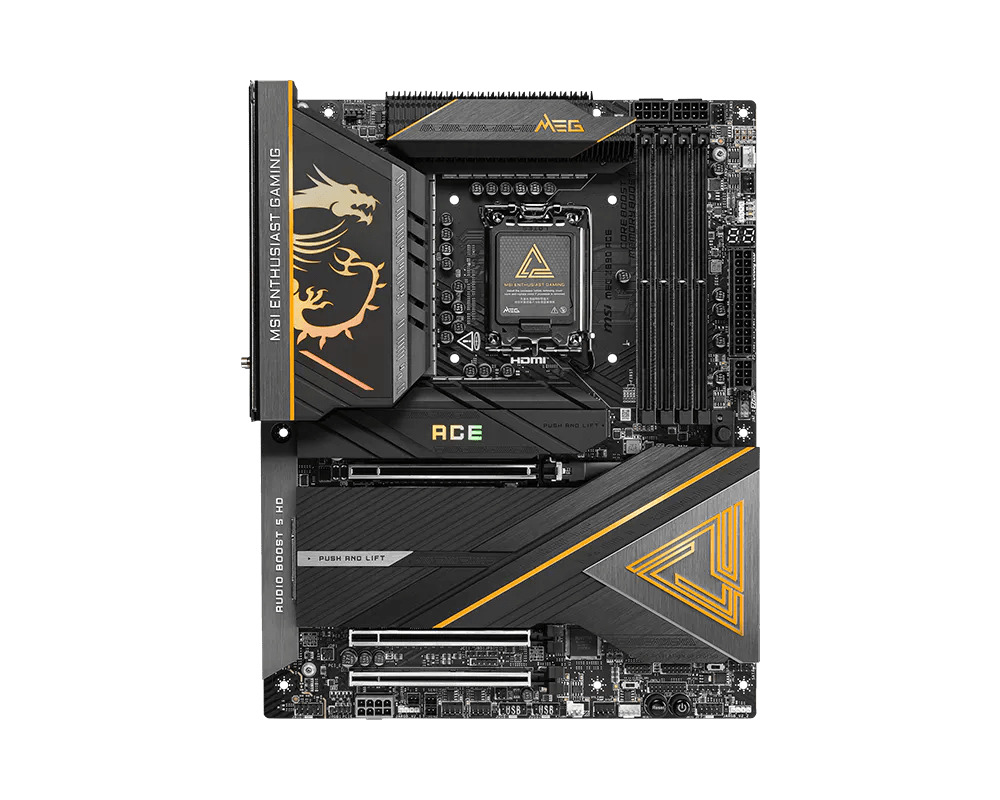

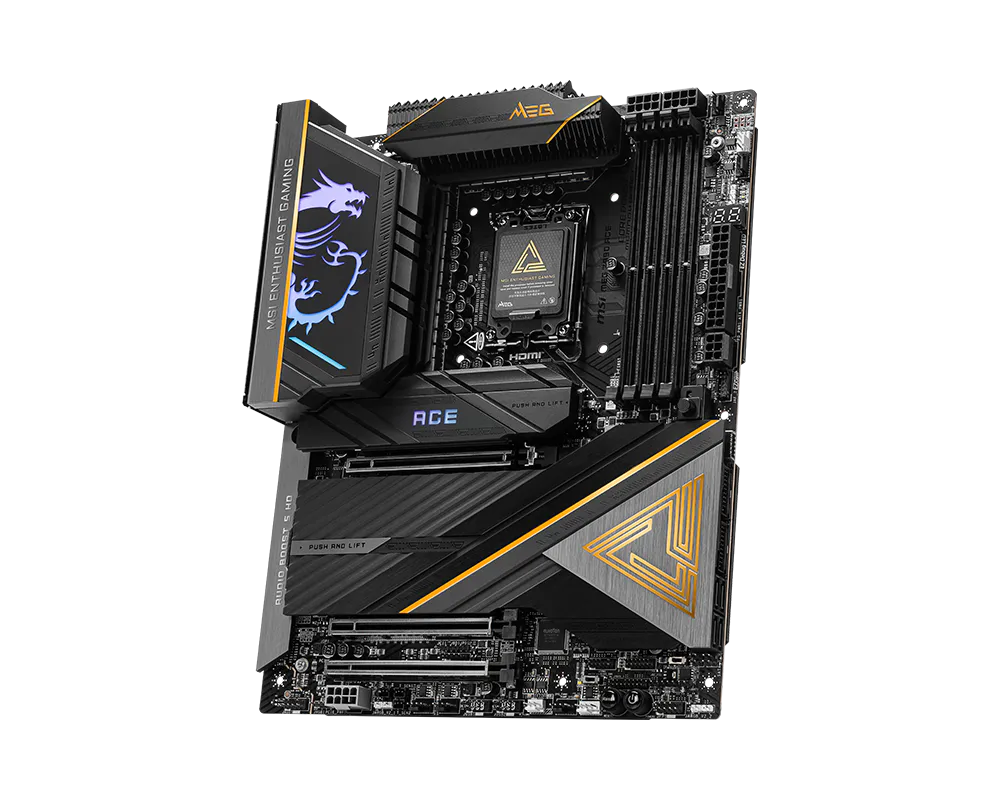

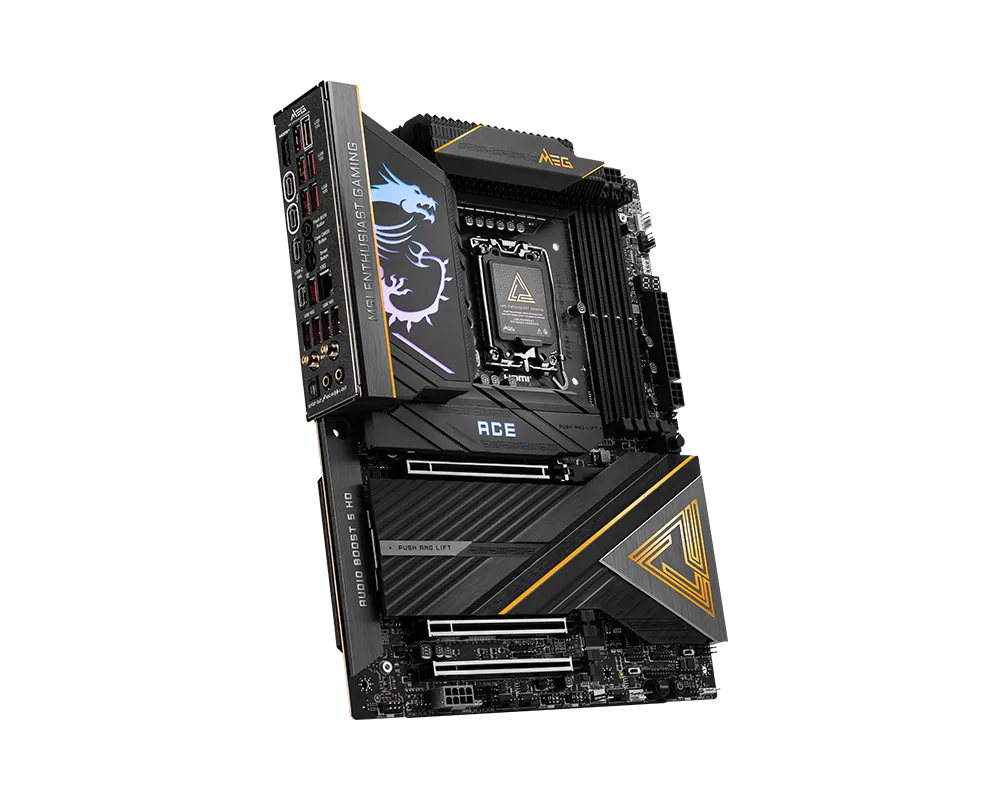

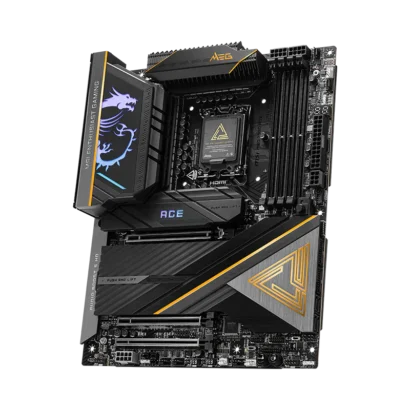

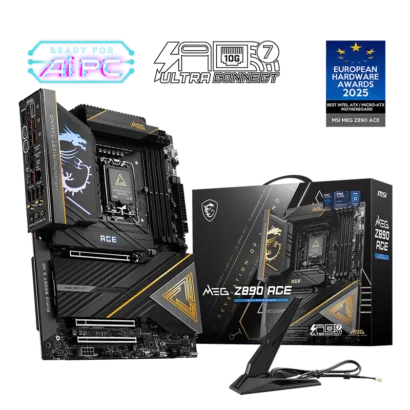

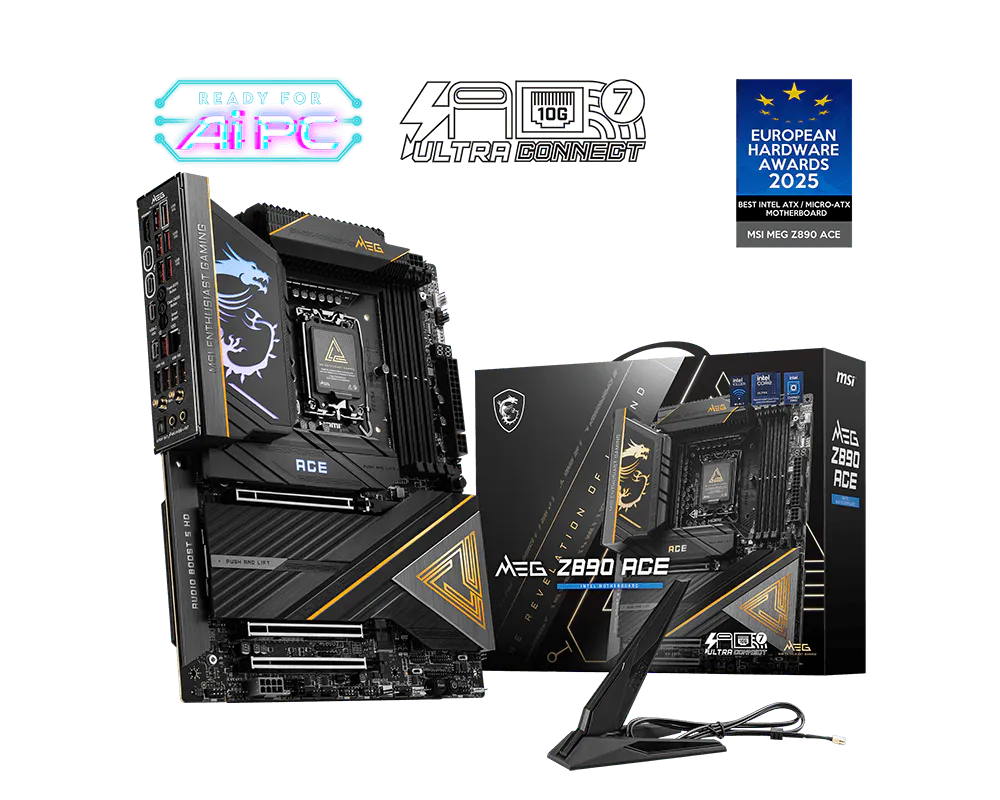

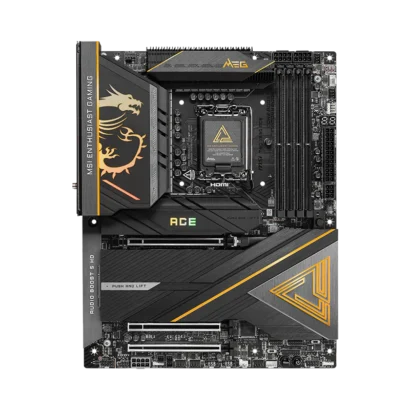

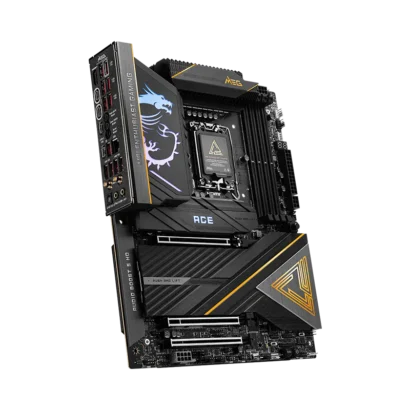

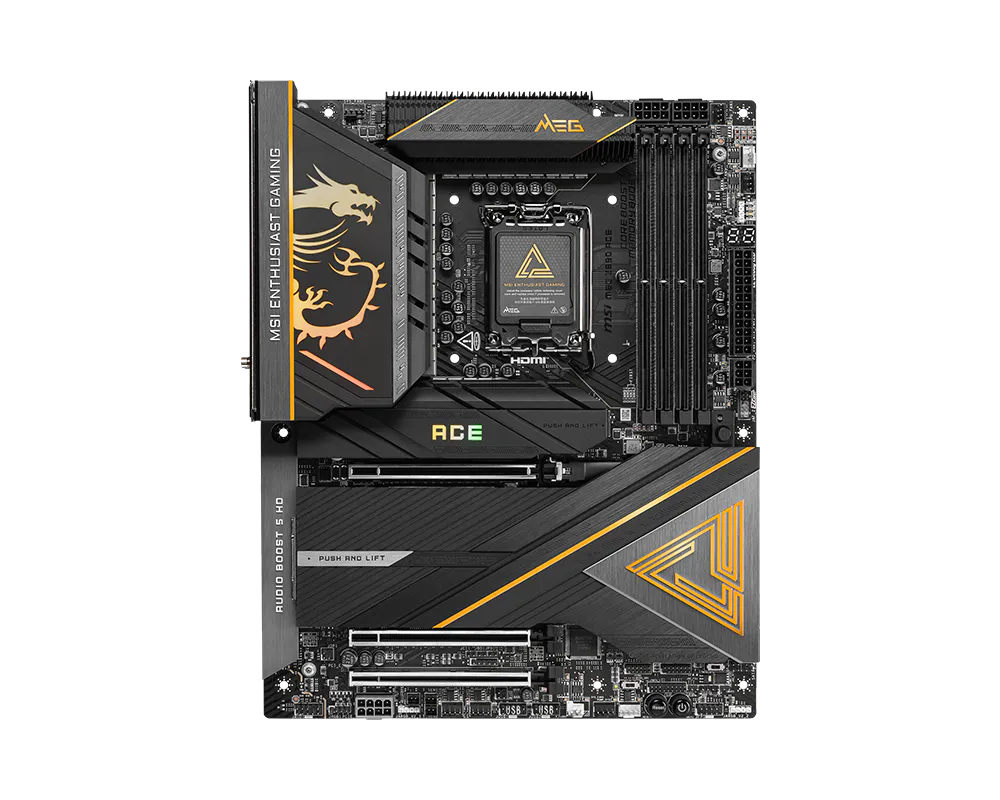

MSI MEG Z890 ACE
Original price was: ₹91,699.00.₹74,099.00Current price is: ₹74,099.00.
-
Flagship E‑ATX motherboard designed for Intel Core Ultra processors.
-
Premium power design with advanced cooling for extreme overclocking.
-
3.99″ Dynamic Dashboard III LCD for real-time system monitoring and customization.
-
Ultra-fast networking: 10 GbE + 5 GbE LAN and Wi-Fi 7.
-
Thunderbolt 5 support for high-speed data transfer.
-
Multiple PCIe 5.0 slots and Gen5 M.2 slots for storage and GPU expansion.
-
High-end audio and extensive USB connectivity.
-
Ideal for enthusiast gaming builds and high-performance PCs.
MSI MEG Z890 ACE
MSI MEG Z890 ACE
Furnished premium aesthetics with its dark black finish and pale gold embellishes. Developed to unlock the full gaming potential of the Intel Core Ultra processor by combining elite hardware system support and premium durability, the MEG Z890 ACE is an outstanding ATX of Z890 platform for extreme settings in terms of overclocking the processor, DDR5 memory, and graphics card at the highest level.
KEY FEATURES
- Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
- Ultra Performance: 24+2+1+1 Duet Rail Power System, 110A SPS, OC Engine, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material.
- Frozr Guard: Wavy fin design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 9W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature.
- EZ DIY: EZ PCIe Release, EZ Magnetic M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna.
- Ultra Connect: Dual Thunderbolt™ 4 ports, 10G LAN, and Full-speed Intel® Killer™ Wi-Fi 7 Solution – The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.
- Lightning Fast Game Experience: PCIe 5.0 slots, Onboard 5x M.2 Connectors with Lightning Gen 5 Solution, Front USB 20G with 60W USB Power Delivery.
- Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.
FROZR DESIGN
-
Wavy Fin Design
Wavy fin array design enlarges up to 50% heat dissipation, provides the maximum surface of heat dissipation.
-
Direct Touch Cross Heat-pipe
The U-shape dual heat-pipe connect three MOS heatsinks to enlarge the surface of heat dissipation.
-
Aluminum Cover
Fully aluminum IO cover and extended heatsink design provide the maximum surface of heat dissipation.
-
Double-sided M.2 Shield Frozr
Double-sided M.2 thermal solution keep M.2 SSDs safe while preventing throttling, making them run cooler and faster.
-
9W/mK Thermal Pad
High quality 9W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.
-
Metal Backplate
The metal baseplate cool down the MOSFET temperature with dedicated thermal pads.
-
Enlarged PCH Heatsink
MSI replaced the PCH fan with enlarged heatsink design to reduce dust and noise as well as maintain high heat dissipation efficiency.
SPECIFICATIONS
| Chipset | INTEL Z890 |
|---|---|
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851 |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 9200 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel® POR Speed and JEDEC Speed * The DIMM slots on this motherboard only have single-sided latches. |
| Onboard Graphics | 1x HDMI™ Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* * Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) • PCI_E1 support manual BIOS adjustment to X8+X8/X8+X4+X4 * PCI_E1 slot will run at x8 speed when PCI_E2 slot installing device. |
| Audio | Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA 7.1-Channel USB High-Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
| Storage | 5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280 devices 4x SATA 6G * M2_4 default from chipset, can support PCIe 5.0 x4 (From CPU) by manual BIOS adjustment. |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| Onboard Thunderbolt | 2x Thunderbolt4 ports (Rear) Support up to 40Gbps transfer rate with Thunderbolt devices Support up to 20Gbps transfer rate with USB4 devices Support up to 10Gbps transfer rate with USB 3.2 devices Support up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Support up to 8K display |
| USB | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 11x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) * To achieve USB PD 60W fast charging for JUSBC1, the PD_PWR1 connector needs to be connected to the power supply unit. |
