MSI MPG B860I EDGE TI WIFI
Original price was: ₹26,399.00.₹24,849.00Current price is: ₹24,849.00.
- ✅ Compact Mini-ITX form factor (170×170mm) for SFF builds
- ✅ Future-ready with PCIe 5.0, DDR5, and Wi-Fi 7
- ✅ Strong VRM and thermal design for stable high performance
- ✅ Premium connectivity including Thunderbolt 4 & 5G LAN
- ✅ AI-powered optimizations for gaming and productivity
- ✅ Ideal for high-end compact gaming or creator PCs
MSI MPG B860I EDGE TI WIFI
MSI MPG B860I EDGE TI WIFI

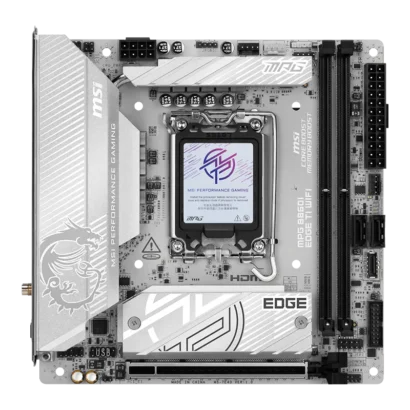

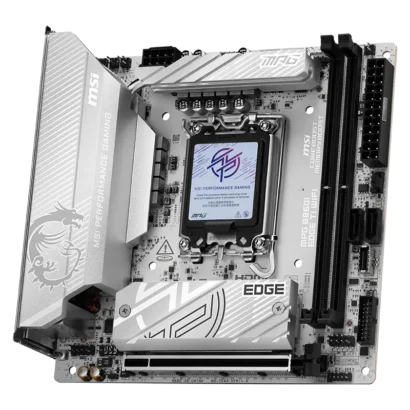

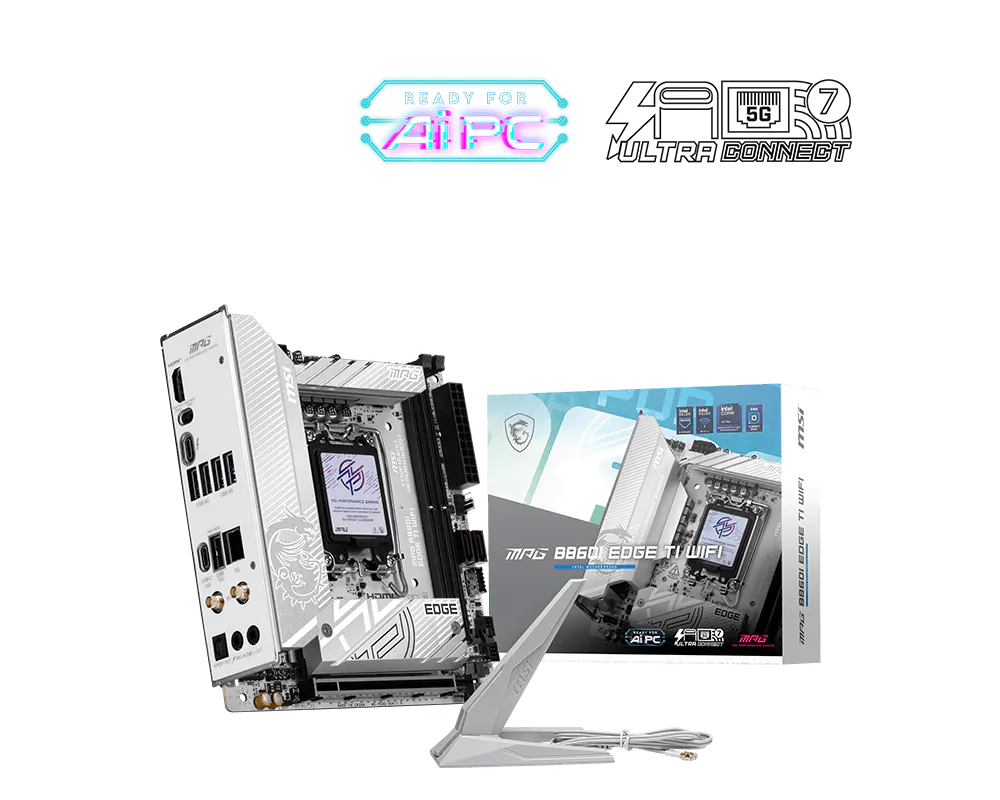

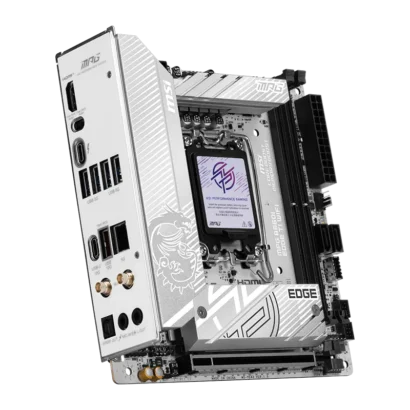

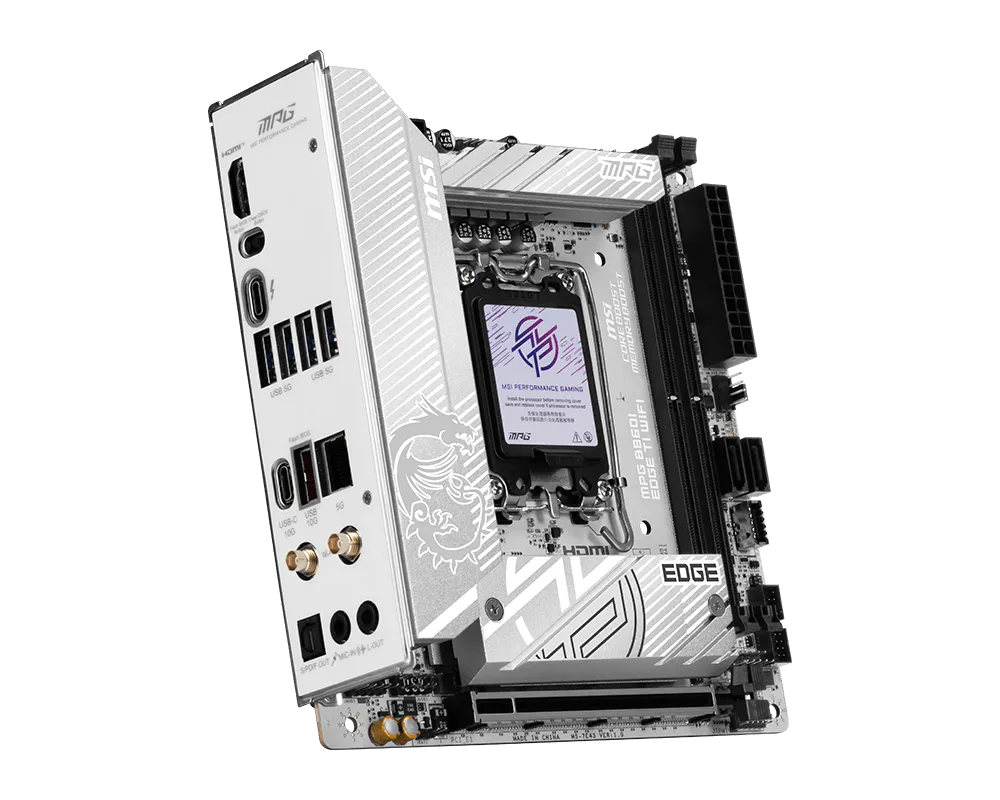

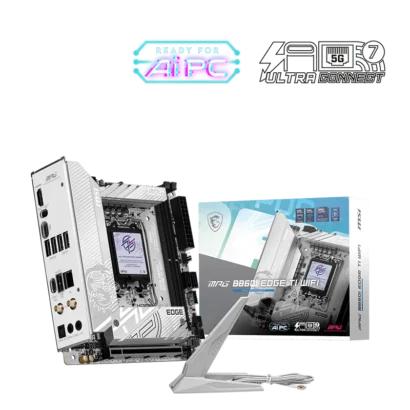

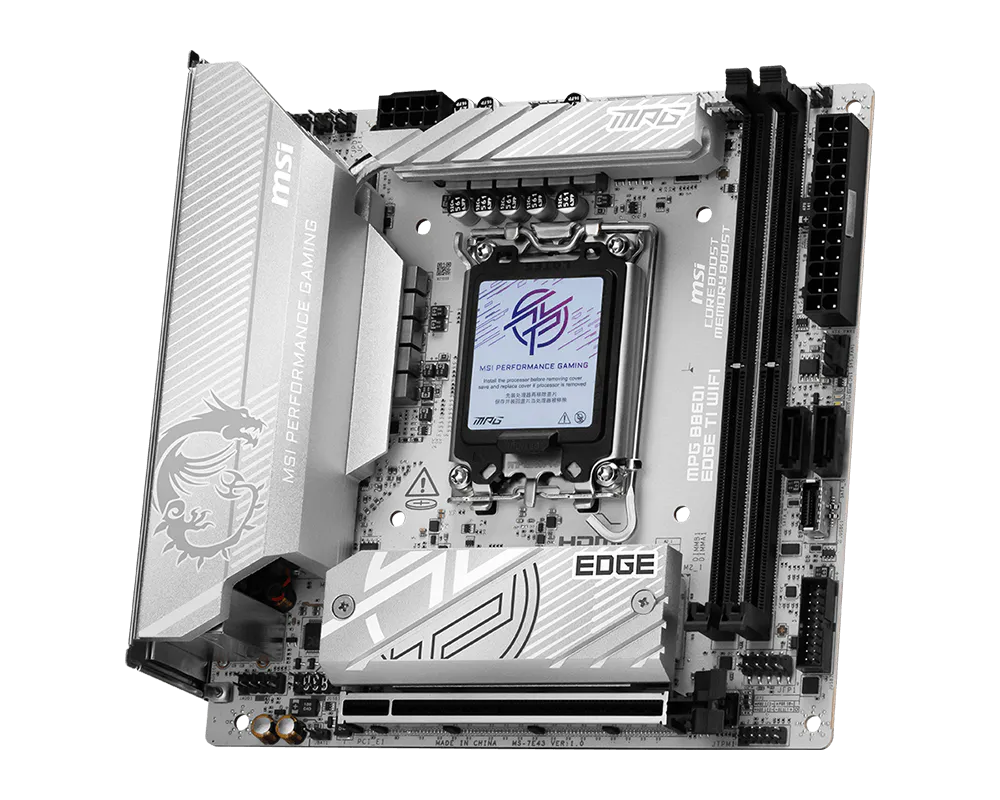

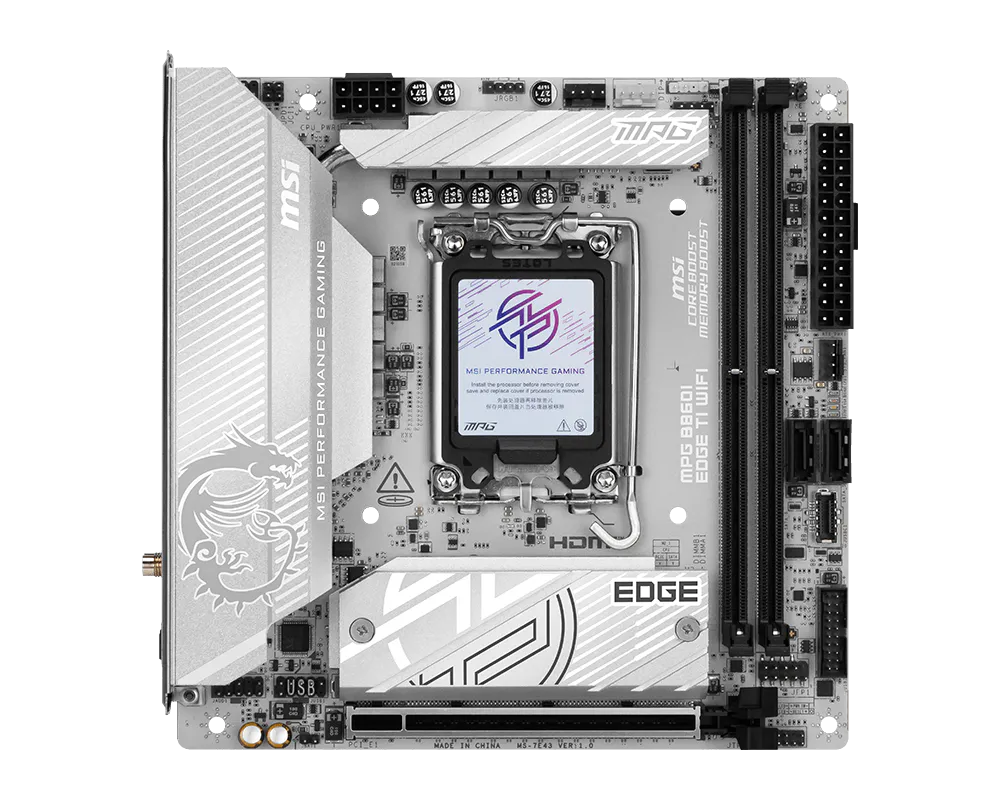

The MSI MPG B860I EDGE TI WIFI is a high-end Mini-ITX motherboard engineered for compact yet powerful PC builds. Built on the Intel B860 chipset, it supports the latest Intel Core Ultra (Series 2) processors and delivers cutting-edge performance with next-gen connectivity, advanced thermal design, and AI-enhanced features. Designed for gamers, creators, and small-form-factor enthusiasts, this board combines premium aesthetics with robust hardware to handle demanding workloads and modern gaming setups.
Key Features
⚡ Performance & Power
- Supports Intel Core Ultra processors (LGA 1851)
- Advanced 8+1+1+1 phase VRM power design for stable overclocking
- DDR5 memory support up to 8600+ MT/s (OC)
- 12-layer server-grade PCB for enhanced signal integrity and durability
🚀 Next-Gen Expansion
- PCIe 5.0 x16 slot for latest GPUs
- Dual M.2 slots (1× PCIe 5.0 + 1× PCIe 4.0)
- Thunderbolt™ 4 for ultra-fast data transfer and display output
🌐 Ultra-Fast Connectivity
- Wi-Fi 7 (up to ~5.8 Gbps) with low latency
- Intel Killer 5G LAN for high-speed wired networking
- Multiple USB ports including USB 10Gbps Type-C
❄️ Advanced Cooling Design
- Extended heatsinks with direct-touch heat pipe
- M.2 Shield Frozr for SSD thermal protection
- High-quality MOSFET thermal pads (7W/mK)
- Smart fan control with AI cooling optimization
🤖 AI & Smart Features
- AI Engine for automatic system optimization
- AI LAN Manager for network prioritization
- AI Cooling adjusts fan curves dynamically
- AI Boost enhances NPU performance for AI workloads
SPECIFICATIONS
| Chipset | INTEL B860 |
|---|---|
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
|
| Memory | 2x DDR5 UDIMM, Maximum Memory Capacity 128GB Memory Support 8600 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8600+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s Supports Intel POR Speed and JEDEC Speed |
| Onboard Graphics | 1x HDMI™ Supports HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz* 1x Type-C DisplayPort ThundeboltTM 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
|
| Slot | 1x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
|
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
|
| Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices 2x SATA 6G |
