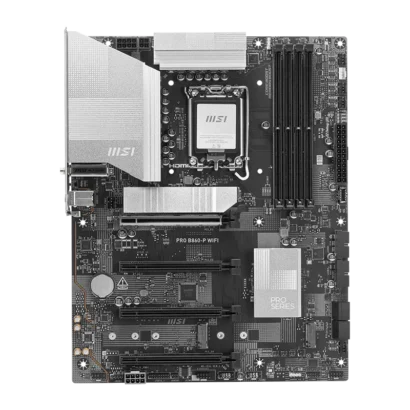

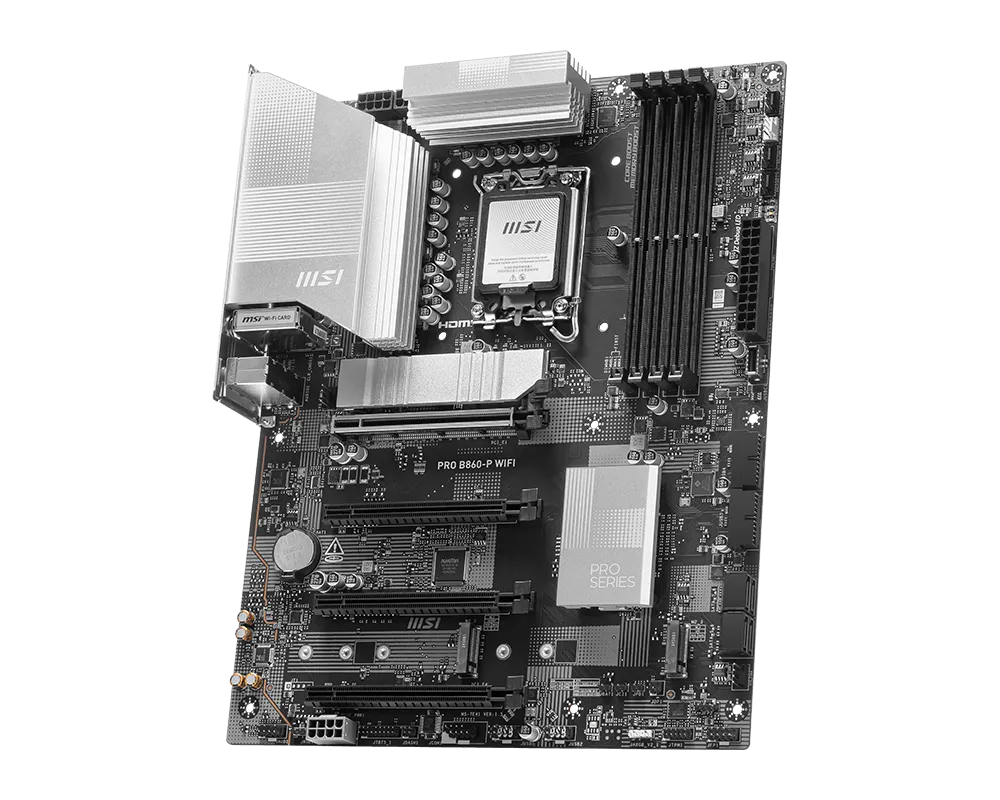

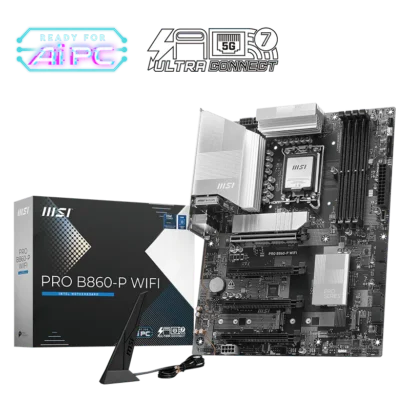

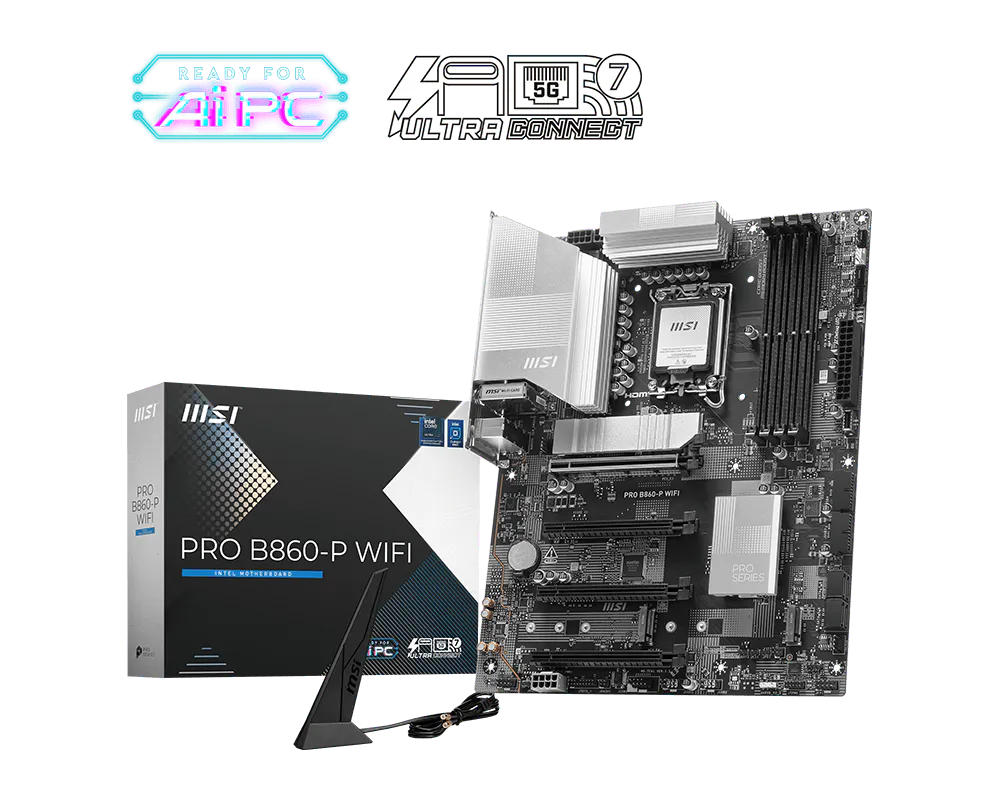

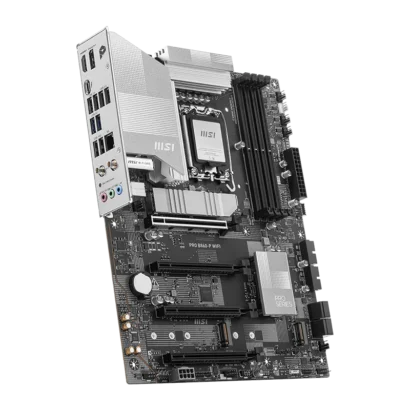

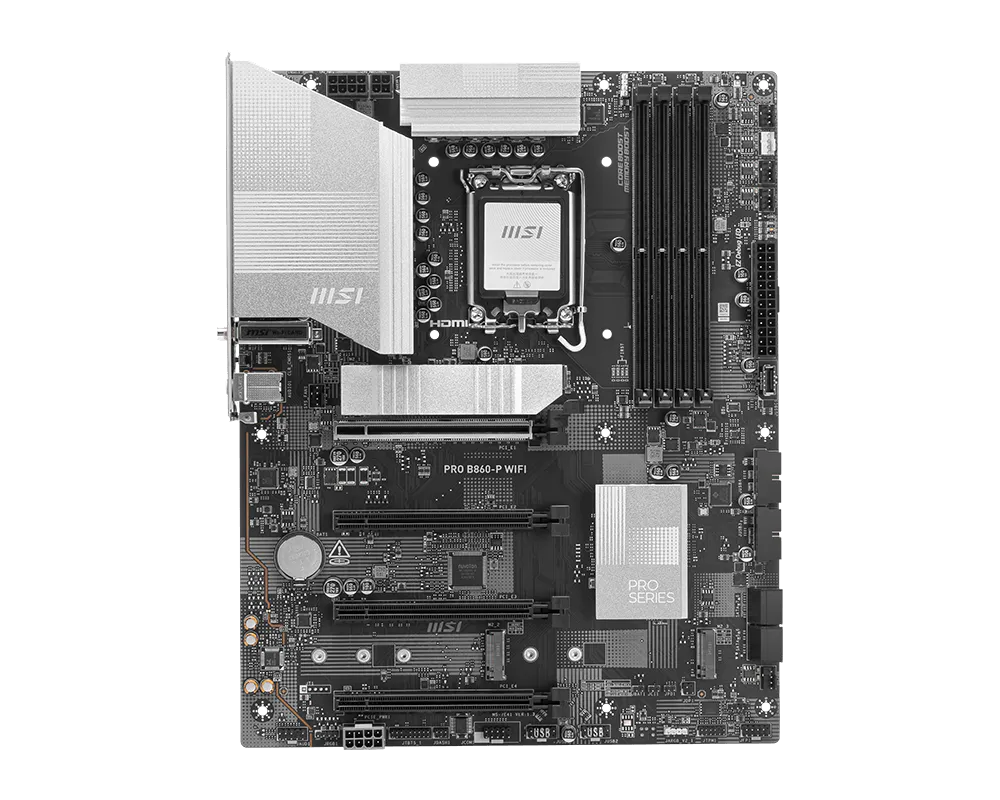

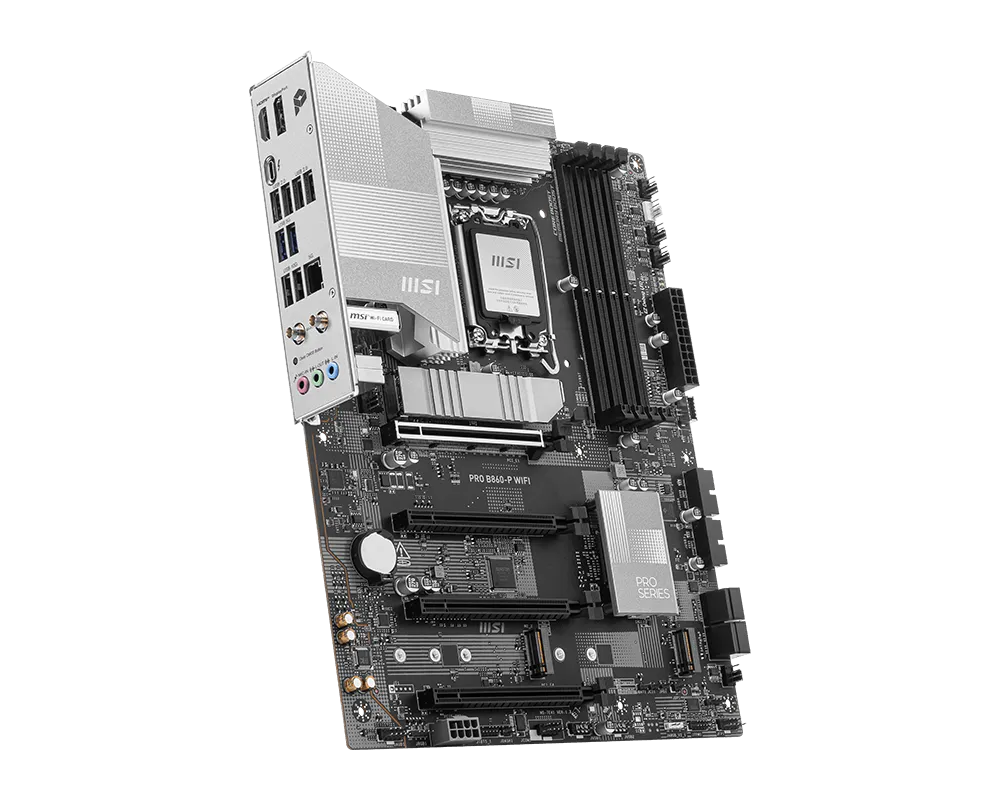

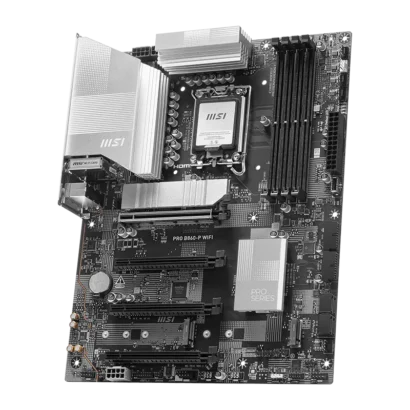

MSI PRO B860-P WIFI
Original price was: ₹19,399.00.₹17,859.00Current price is: ₹17,859.00.
- ✅ ATX motherboard – ideal for full-size builds
- ✅ Focused on stability, productivity, and value
- ✅ Includes modern features: PCIe 5.0, DDR5, Wi-Fi 7
- ✅ Strong VRM for mid-to-high-end CPUs (not extreme OC)
- ✅ Excellent connectivity: Thunderbolt 4 + 5G LAN
- ✅ Best suited for workstations, creators, and budget gaming PCs
MSI PRO B860-P WIFI
MSI PRO B860-P WIFI
The MSI PRO B860-P WIFI is a productivity-focused ATX motherboard built on Intel’s B860 chipset, designed for stable performance, efficient multitasking, and modern connectivity. As part of MSI’s PRO series, it emphasizes reliability, clean design, and essential high-end features—making it ideal for professionals, creators, and budget-conscious gamers who want next-gen support without premium pricing. It supports Intel Core Ultra (Series 2) processors and brings key technologies like PCIe 5.0, DDR5 memory, and Wi-Fi 7 into an accessible platform
Key Features
⚡ Performance & Power
- Supports Intel Core Ultra (Series 2) processors – LGA 1851
- 12+1+1+1 Duet Rail VRM design for stable and efficient power delivery
- DDR5 memory support up to ~8600+ MT/s (OC)
- 6-layer server-grade PCB for improved durability and signal quality
🚀 Expansion & Storage
- PCIe 5.0 x16 slot for next-gen GPUs
- Triple M.2 slots (1× PCIe 5.0 + 2× PCIe 4.0)
- Lightning Gen 5 storage with up to 128Gbps bandwidth
- Supplemental PCIe power connector for high-end GPU stability
🌐 Connectivity
- Wi-Fi 7 (up to ~5.8 Gbps) with EZ Antenna
- 5G LAN for fast, low-latency wired networking
- Thunderbolt 4 support (40Gbps)
- Multiple USB ports including front USB Type-C
❄️ Cooling & Thermal Design
- Extended VRM heatsinks for consistent thermal performance
- M.2 Shield Frozr II for SSD cooling
- High-quality 7W/mK MOSFET thermal pads
- Designed for long-duration workloads and stability
🛠️ DIY & Productivity Features
- EZ DIY design (EZ M.2 Clip II, EZ PCIe Clip II, EZ Antenna)
- Pre-installed I/O shield
- Click BIOS X for intuitive tuning and system control
- One-click performance presets and overclocking tools
SPECIFICATIONS
| Chipset | INTEL B860 |
|---|---|
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
|
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 8800 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel® POR Speed and JEDEC Speed
|
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* |
| Slot | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset)
|
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio
|
| Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G |
