MSI PRO B860M-A WIFI
Original price was: ₹19,399.00.₹17,379.00Current price is: ₹17,379.00.
- ✅ Supports Intel Core Ultra processors (LGA 1851 socket)
- ✅ DDR5 memory up to 256GB with high-speed overclocking
- ✅ Built-in Wi-Fi 7 + 5G LAN for ultra-fast connectivity
- ✅ PCIe 5.0 x16 slot for next-gen GPUs
- ✅ Lightning Gen5 M.2 support for ultra-fast SSDs
- ✅ 12+1+1+1 power phase design for stable performance
- ✅ Extended heatsinks with advanced thermal pads
- ✅ EZ DIY features for easy installation and upgrades
- ✅ Thunderbolt 4 support for high-speed peripherals
- ✅ Professional, minimalist design for clean builds
MSI PRO B860M-A WIFI
MSI PRO B860M-A WIFI

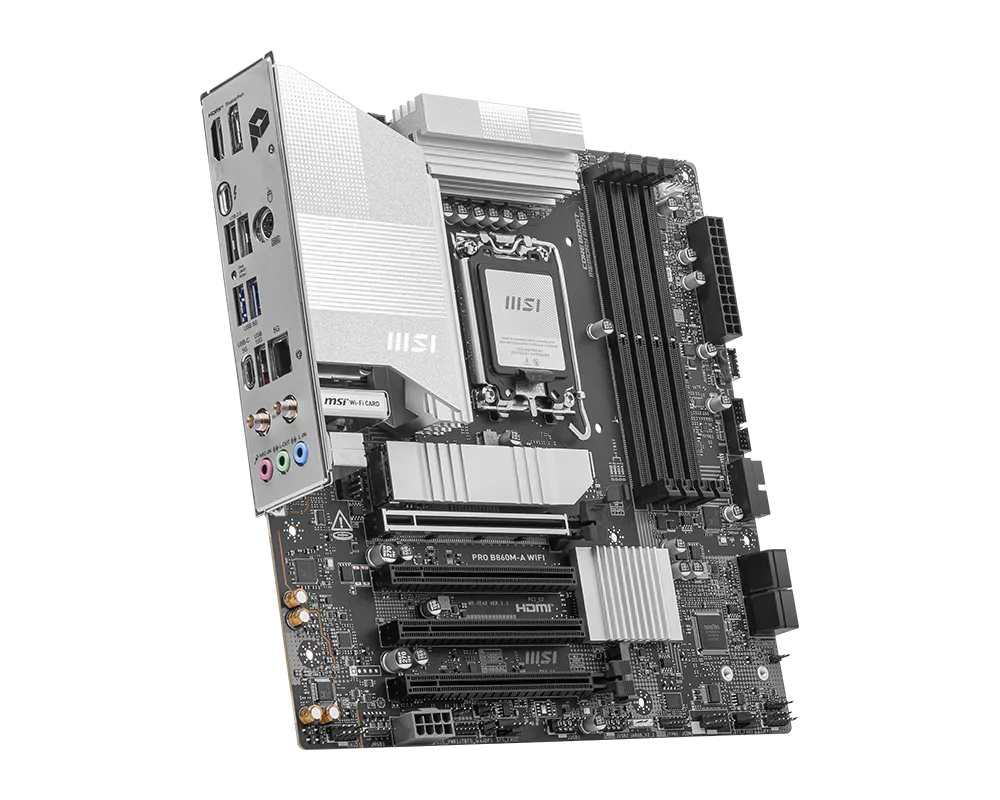

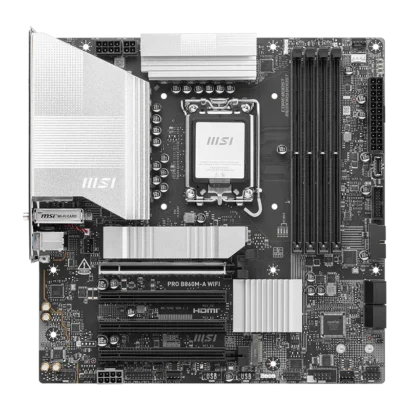

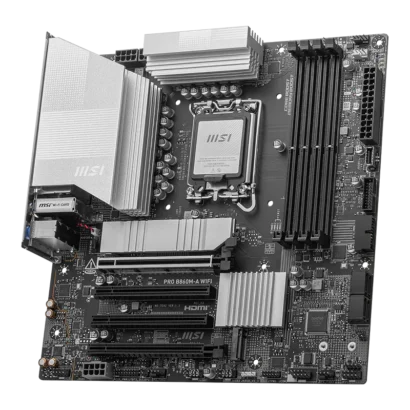

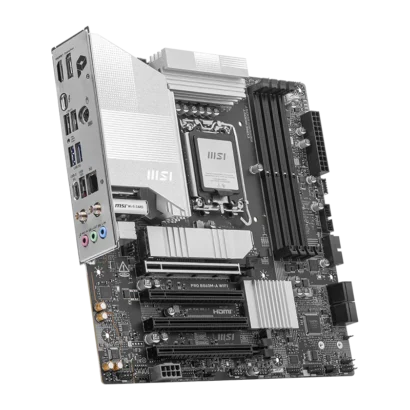

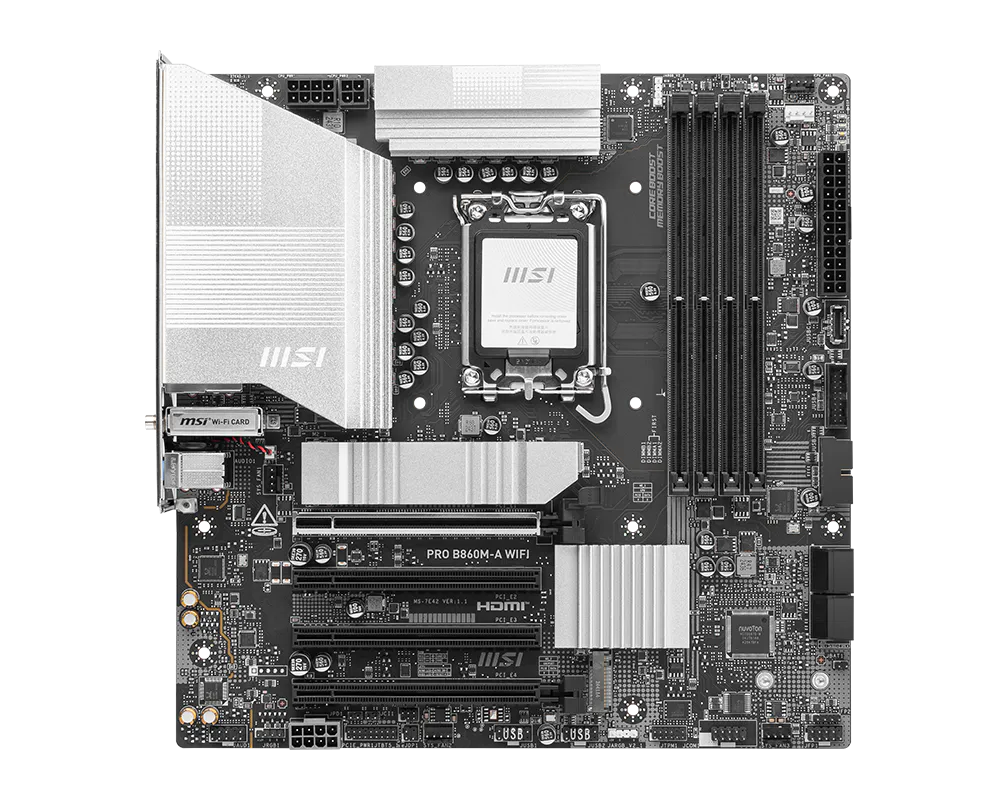

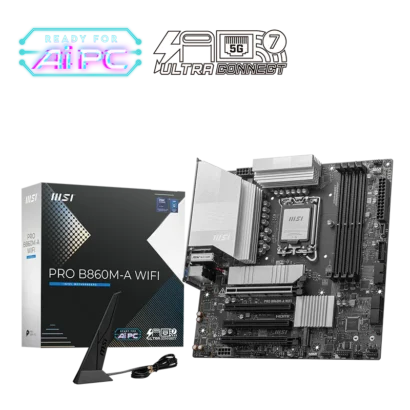

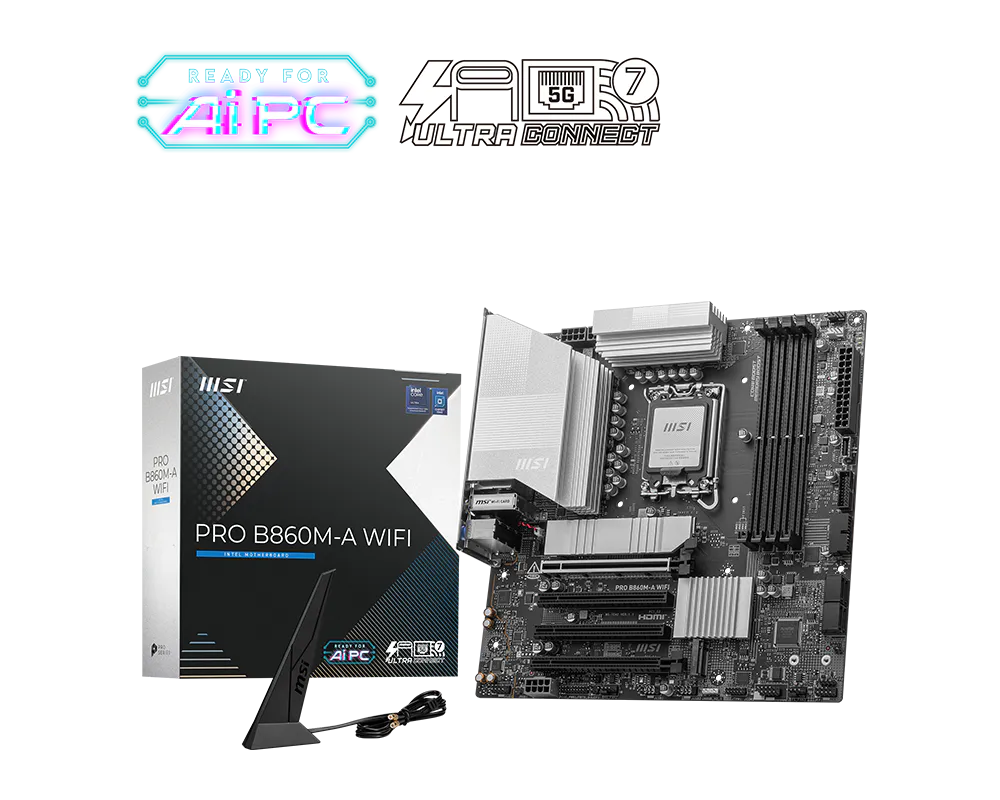

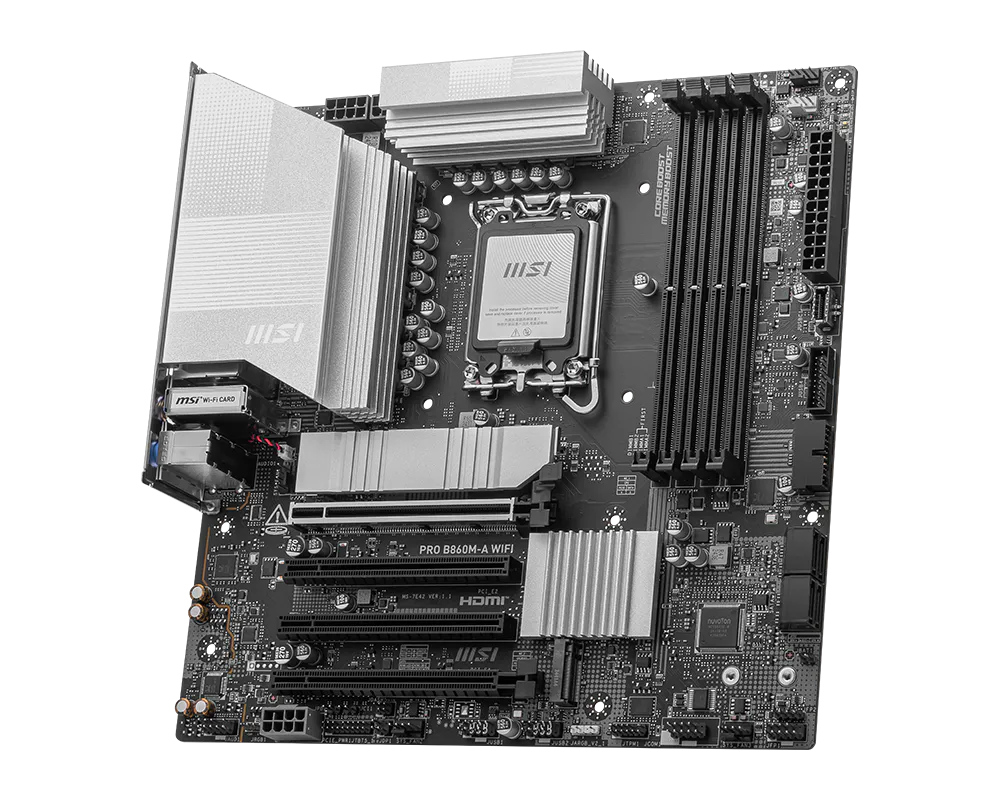

The MSI PRO B860M-A WIFI is a versatile Micro-ATX motherboard built for professionals, creators, and everyday users who demand stability, efficiency, and next-gen connectivity. Powered by the Intel B860 chipset and designed for Intel Core Ultra (Series 2) processors, it delivers reliable performance with advanced features like DDR5 memory, PCIe 5.0, and Wi-Fi 7.
Key Features
- Intel Core Ultra Ready (LGA 1851)
Designed to support next-gen Intel Core Ultra processors for modern performance and efficiency. - DDR5 Memory Support (Up to 8600+ MT/s OC)
Enables faster multitasking and improved system responsiveness with next-gen RAM technology. - 12+1+1+1 Power Delivery System
Robust VRM design ensures stable CPU performance even under heavy workloads. - PCIe 5.0 + Gen5 M.2 Storage
Offers next-gen bandwidth for GPUs and ultra-fast NVMe SSDs for faster load times. - Wi-Fi 7 + 5G LAN Connectivity
Delivers ultra-fast wireless networking with low latency and reliable wired speeds. - Thunderbolt 4 Support
High-speed connectivity for external devices, displays, and storage solutions. - Advanced Cooling (Frozr Design)
Extended heatsinks, MOSFET thermal pads, and M.2 Shield Frozr ensure efficient heat dissipation. - EZ DIY Features
Includes EZ M.2 Clip, EZ PCIe Clip, and EZ Antenna for easy installation and upgrades. - Audio Boost Technology
Provides high-quality, studio-grade sound for better media and communication experience. - Professional-Grade PCB & Durability
6-layer server-grade PCB with safety features like overvoltage protection and solid pin connectors.
SPECIFICATIONS
| Chipset | INTEL B860 |
|---|---|
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
|
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 8800 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel® POR Speed and JEDEC Speed
|
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* |
| Slot | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
|
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio
|
| Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices 4x SATA 6G |
