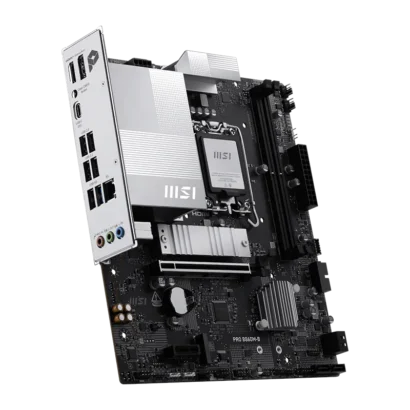

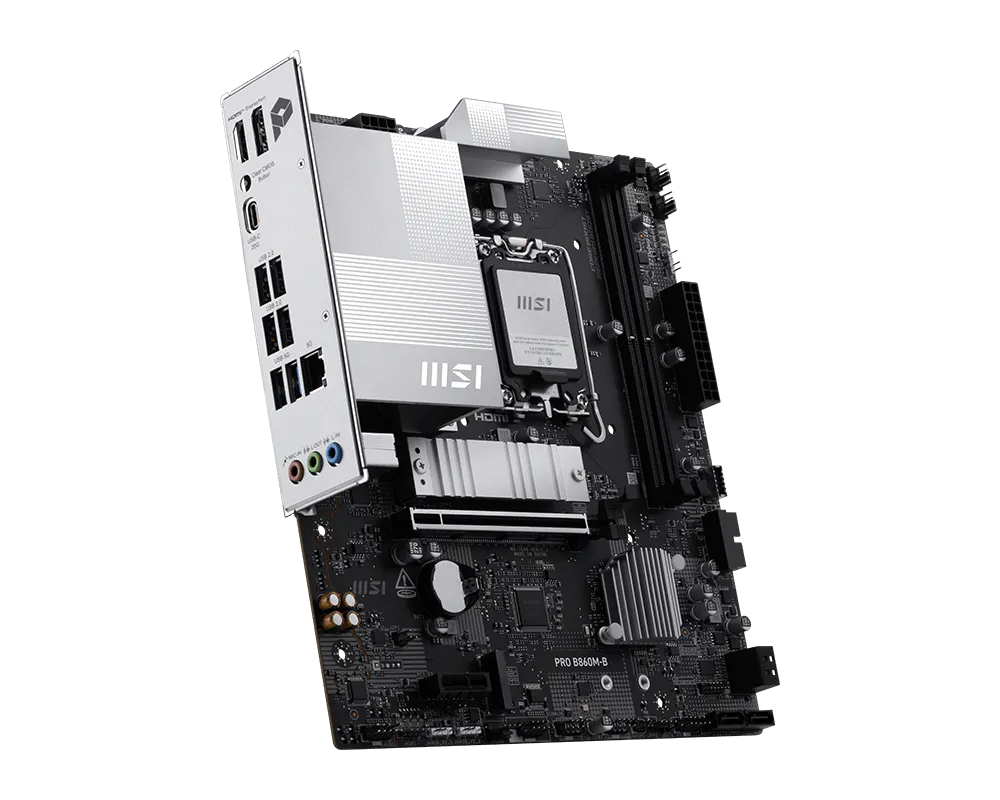

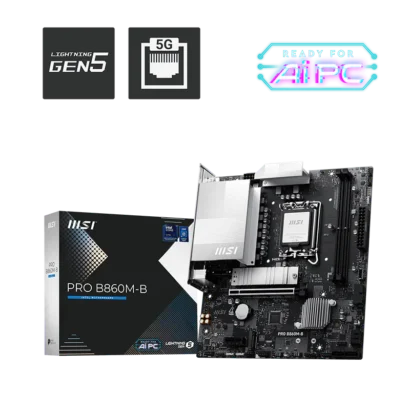

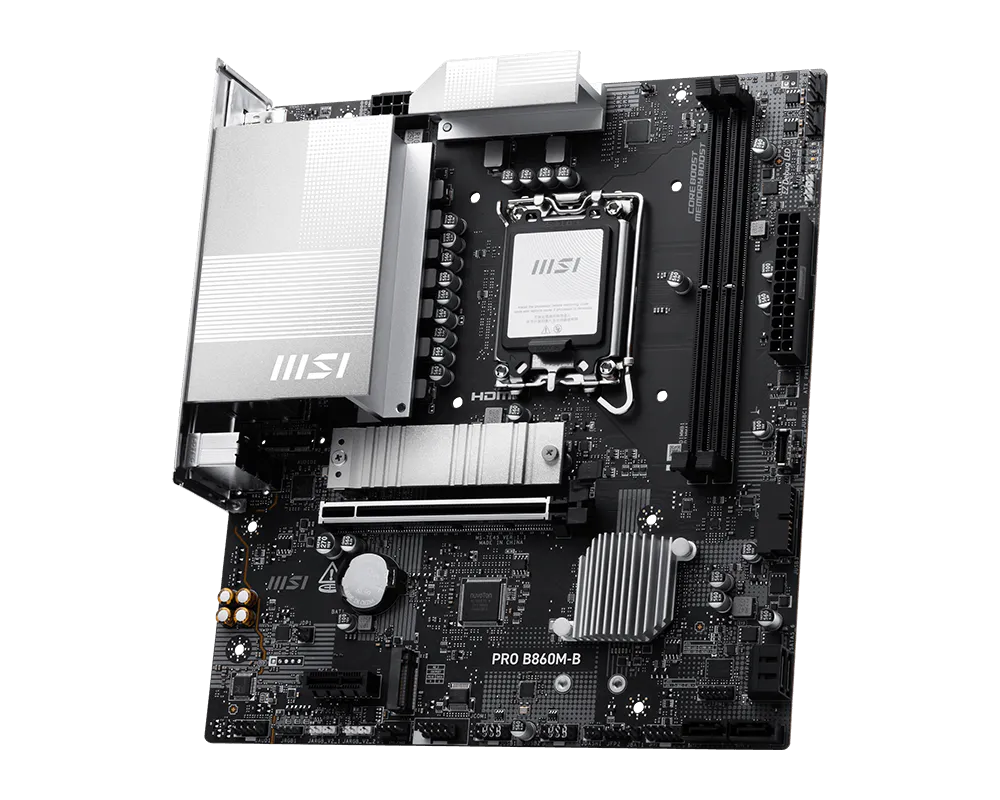

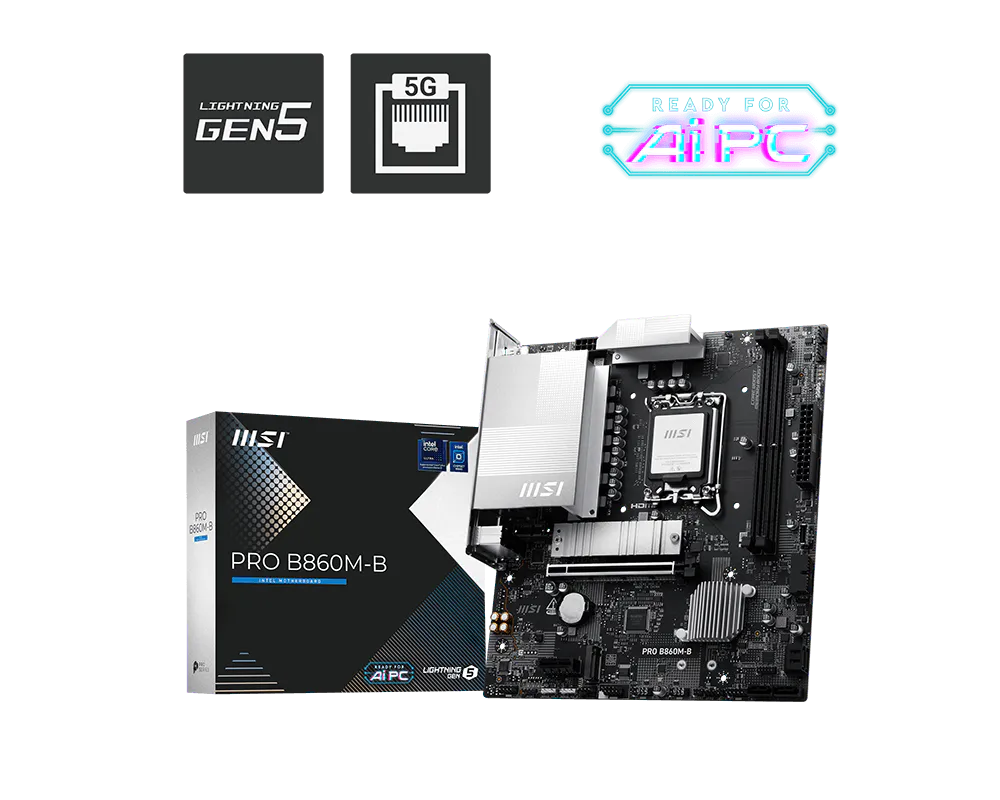

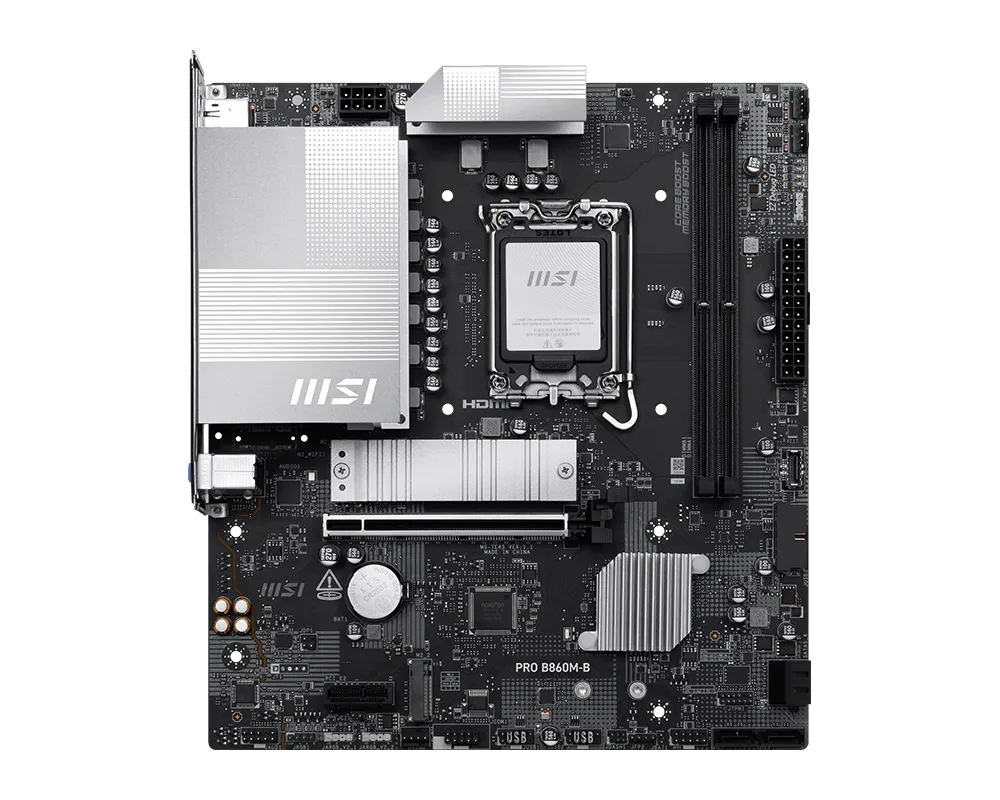

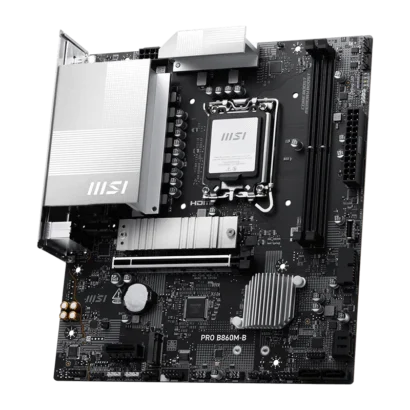

MSI PRO B860M-B
Original price was: ₹13,209.00.₹11,509.00Current price is: ₹11,509.00.
- ✅ Next‑generation Intel Core Ultra support (LGA 1851)
- ✅ DDR5 memory support up to 128 GB (OC up to ~9066 MT/s)
- ✅ PCIe 5.0 x16 slot for modern GPUs
- ✅ 2× M.2 slots (PCIe 5.0 + PCIe 4.0) for high‑speed NVMe storage
- ✅ Realtek 5 Gbps LAN for fast wired networking
- ✅ HDMI 2.1 & DisplayPort outputs for integrated graphics support
- ✅ 4× SATA 6 Gb/s ports for additional drives
- ✅ USB Type‑C + multiple USB 5 Gbps and 20 Gbps ports
- ✅ EZ Debug LEDs for easier troubleshooting
- ✅ Compact Micro‑ATX form factor for small builds
MSI PRO B860M-B
MSI PRO B860M-B
The MSI Pro B860M‑B DDR5 Motherboard is a reliable and efficient Micro‑ATX board designed for productivity builds, office PCs, and mainstream systems. Built on the Intel B860 chipset, it supports the latest Intel Core Ultra processors on the LGA 1851 socket and delivers stable performance with next‑gen DDR5 memory support, high‑speed storage options, and modern connectivity. Whether you’re building a compact workstation or a daily‑use PC, it provides a balanced blend of performance, expandability, and value.
Key Features
🧠 Next‑Gen Intel Platform
- Fully supports Intel Core Ultra Series 2 processors on the LGA 1851 socket — letting you leverage the latest Intel performance and efficiency in a compact board.
💾 High‑Speed DDR5 Memory
- Dual DDR5 DIMM slots supporting up to 128 GB of memory with overclocking up to ~9066 MT/s, improving responsiveness and multitasking performance.
- Supports Intel XMP 3.0 for easy memory tuning.
🚀 PCIe 5.0 & Fast Storage
- A PCIe 5.0 x16 slot delivers maximum bandwidth for modern graphics cards and expansion cards.
- Dual M.2 slots:
- M.2_1 (CPU): PCIe 5.0 x4 NVMe SSD support.
- M.2_2 (Chipset): PCIe 4.0 x4 NVMe SSD support.
- Additional 4× SATA 6 Gb/s ports for SSDs/HDDs.
🌐 High‑Speed Networking
- Built‑in Realtek 8126 5 Gbps LAN ensures ultra‑fast, reliable wired connections for gaming, streaming, and data transfer.
📺 Integrated Graphics Outputs
- HDMI 2.1 and DisplayPort 1.4 outputs enable use of CPU integrated graphics (when available) — supporting up to 4K 60 Hz display without a dedicated GPU.
SPECIFICATIONS
| Chipset | INTEL B860 |
|---|---|
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
|
| Memory | 2x DDR5 UDIMM, Maximum Memory Capacity 128GB Memory Support DDR5 9066 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9066+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s Supports Intel® POR Speed and JEDEC Speed
|
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* |
| Slot | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
|
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio
|
| Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
