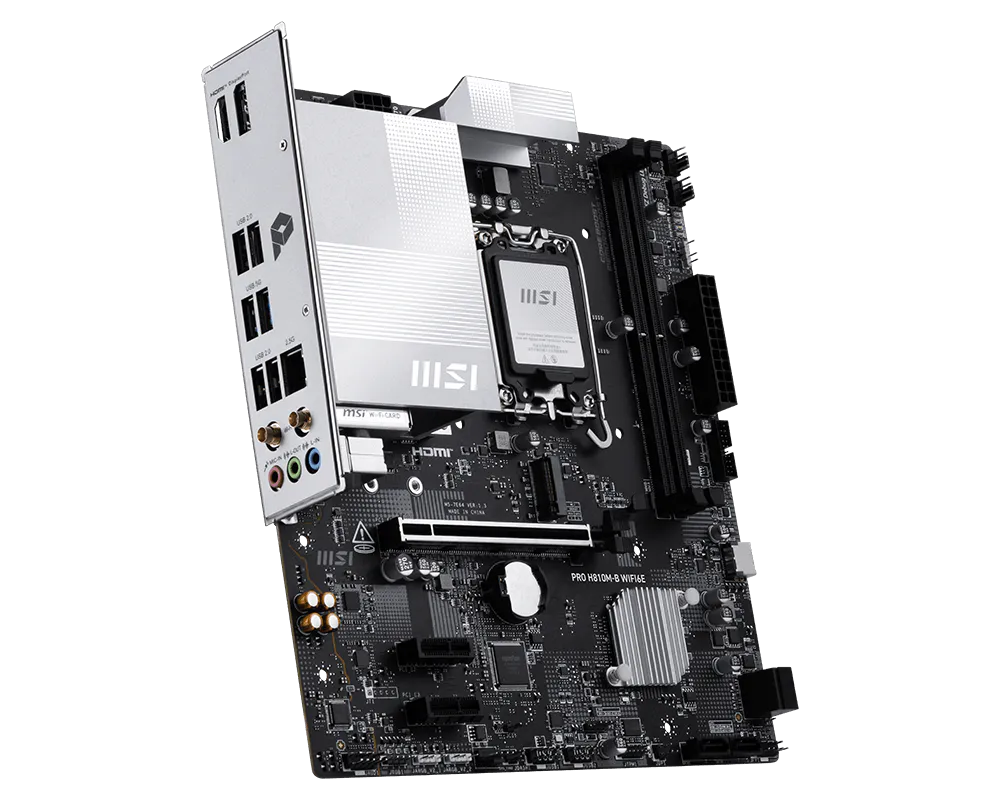

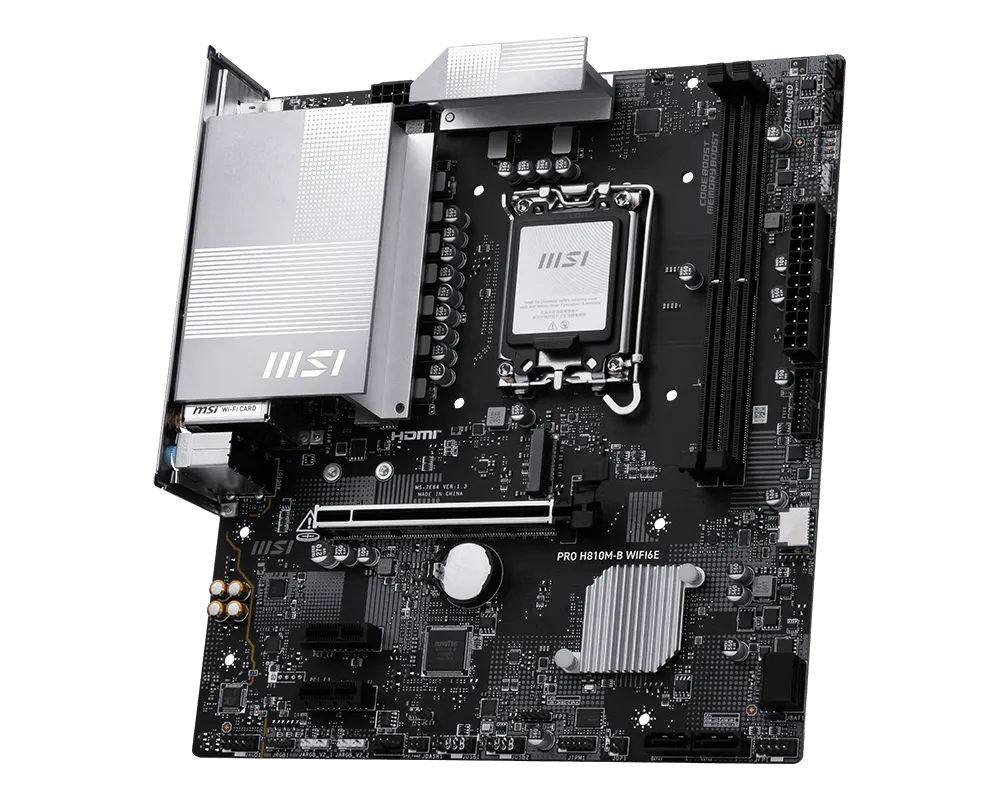

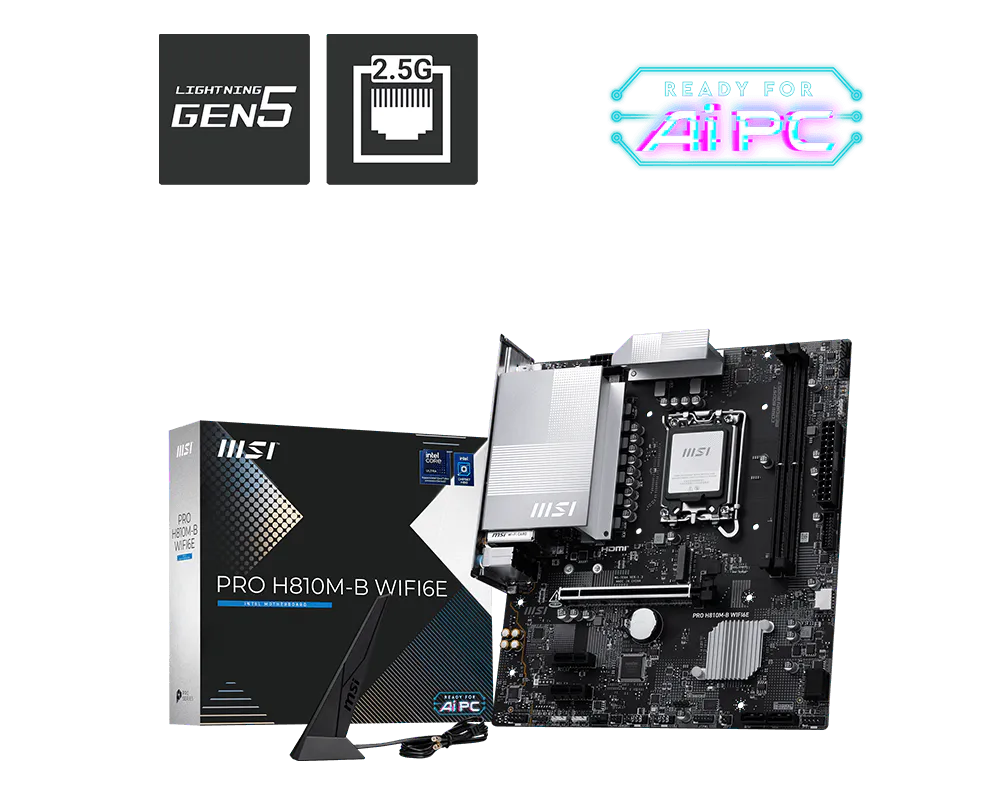

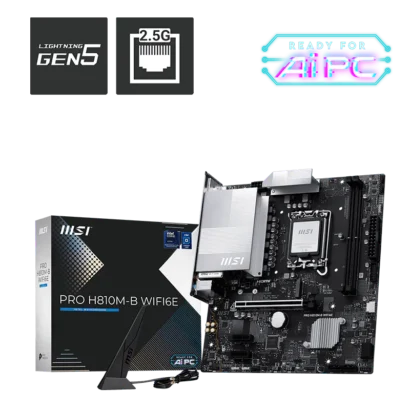

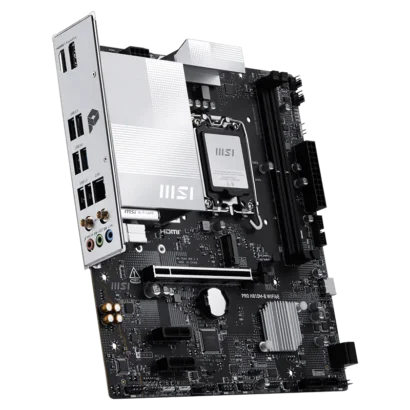

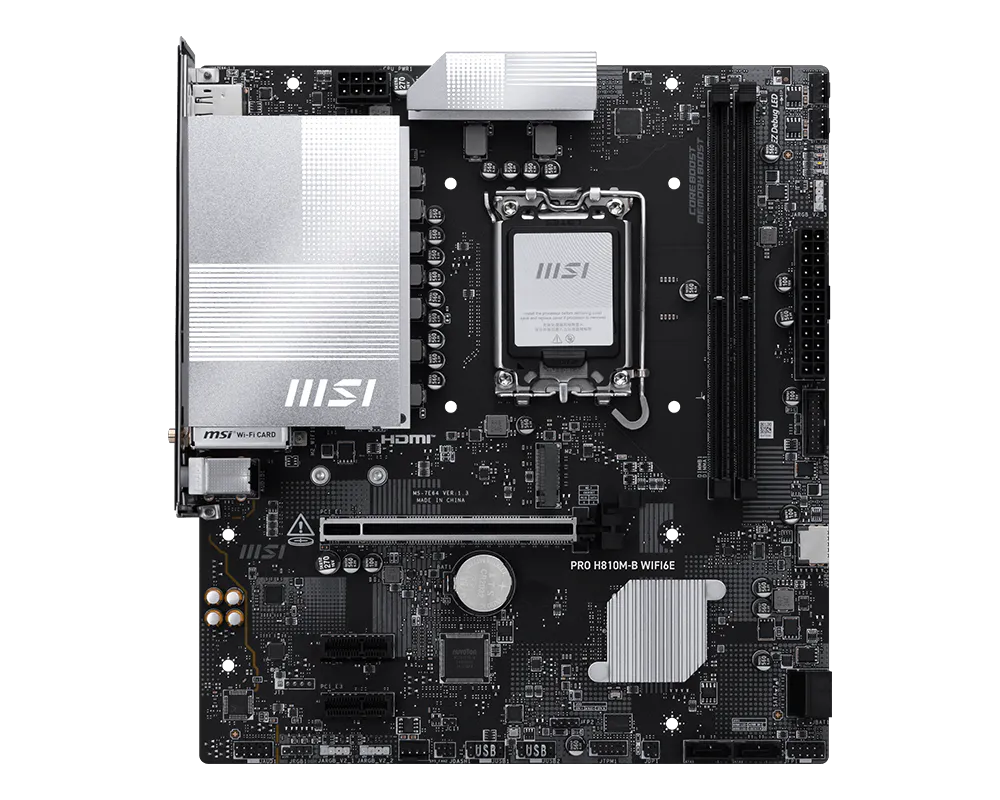

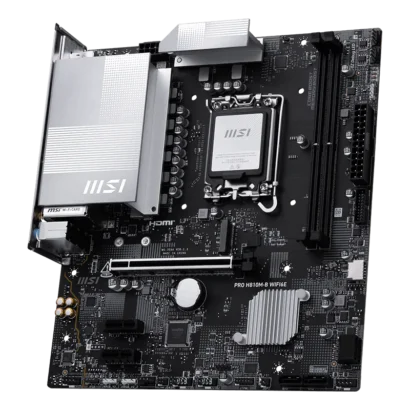

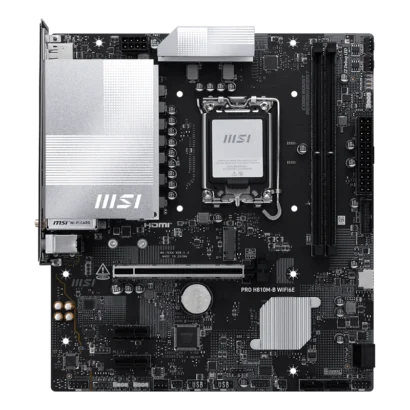

MSI PRO H810M-B WIFI6E
Original price was: ₹13,909.00.₹10,999.00Current price is: ₹10,999.00.
- ✅ Supports Intel Core Ultra processors (LGA 1851)
- ✅ DDR5 memory support up to 128GB (up to 6400 MT/s)
- ✅ Built-in Wi-Fi 6E + Bluetooth
- ✅ PCIe 5.0 x16 slot for modern GPUs
- ✅ 2.5G LAN for fast wired networking
- ✅ M.2 Gen4 slot for high-speed SSD storage
- ✅ USB Type-C + multiple USB ports
- ✅ Extended heatsink design for thermal stability
- ✅ EZ DIY features for easy installation
- ✅ Compact Micro-ATX form factor
MSI PRO H810M-B WIFI6E
MSI PRO H810M-B WIFI6E
The MSI PRO H810M-B WIFI6E is a compact and efficient Micro-ATX motherboard built for professionals, home users, and budget-conscious PC builders who want modern features without overspending. Based on the Intel H810 chipset and supporting Intel Core Ultra (Series 2) processors, it delivers stable performance, next-gen connectivity, and essential expansion capabilities.
Key Features
🧠 Next-Gen Intel Platform
- Designed for Intel Core Ultra (Series 2) processors using the LGA 1851 socket, ensuring modern performance for multitasking and daily workloads.
💾 DDR5 Memory Performance
- Supports dual-channel DDR5 RAM up to 128GB with speeds up to 6400 MT/s, delivering faster system responsiveness and efficiency.
🎮 PCIe 5.0 Graphics Support
- Equipped with a PCIe 5.0 x16 slot, providing high bandwidth for next-gen GPUs and expansion cards.
🌐 Advanced Networking
- Integrated Wi-Fi 6E for faster wireless connectivity and reduced interference
- 2.5G LAN ensures stable, high-speed wired networking for work and gaming
⚡ Storage & Expansion
- Features M.2 PCIe 4.0 x4 slot for fast NVMe SSDs
- Additional SATA ports for flexible storage expansion
- PCIe 5.0 ensures future-ready upgrade support
❄️ Thermal & Power Design
- Extended heatsinks and MOSFET thermal pads (Frozr Design) help maintain stable temperatures during load
- Core Boost technology ensures consistent CPU power delivery
🛠 EZ DIY & Build-Friendly Features
- Includes EZ M.2 Clip II and EZ PCIe Clip II for tool-less installation
- Pre-installed I/O shield simplifies the building process
- User-friendly BIOS and layout for easy setup.
SPECIFICATIONS
| Chipset | INTEL H810 |
|---|---|
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
|
| Memory | 2x DDR5 UDIMM, Maximum Memory Capacity 128GB Memory Support DDR5 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 6400 MT/s • 1DPC 2R Max speed up to 6400 MT/s Supports Intel® POR Speed and JEDEC Speed
|
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* |
| Slot | 1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
|
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio
|
| Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
