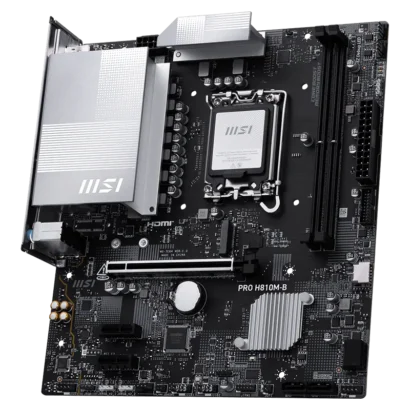

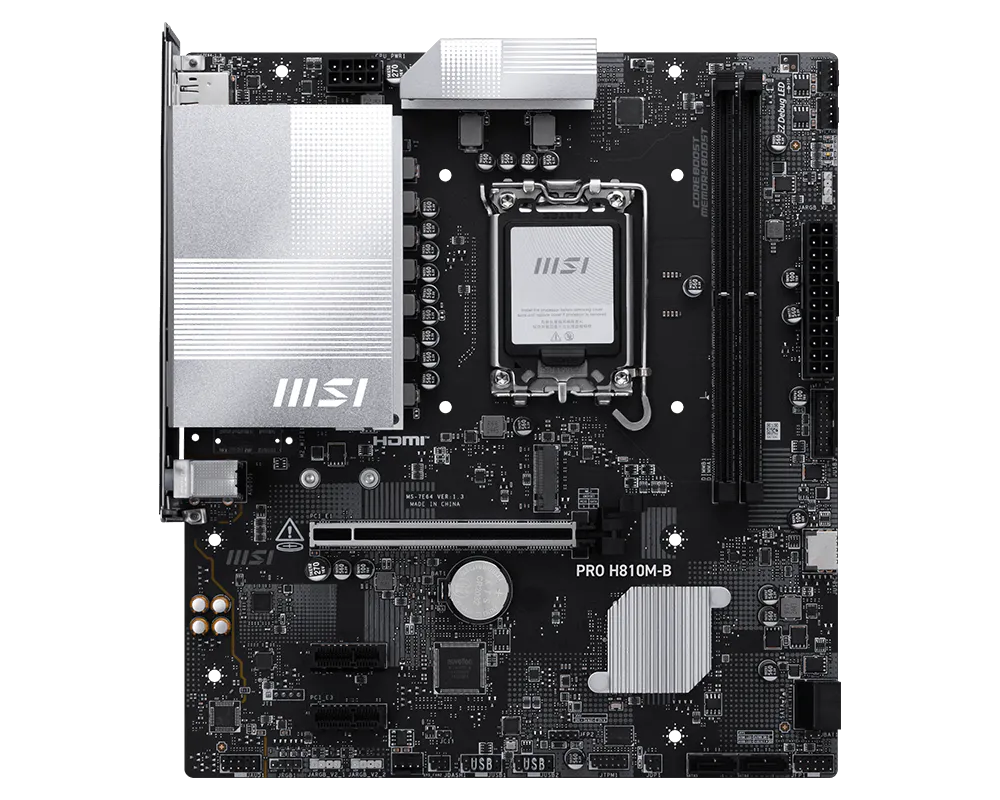

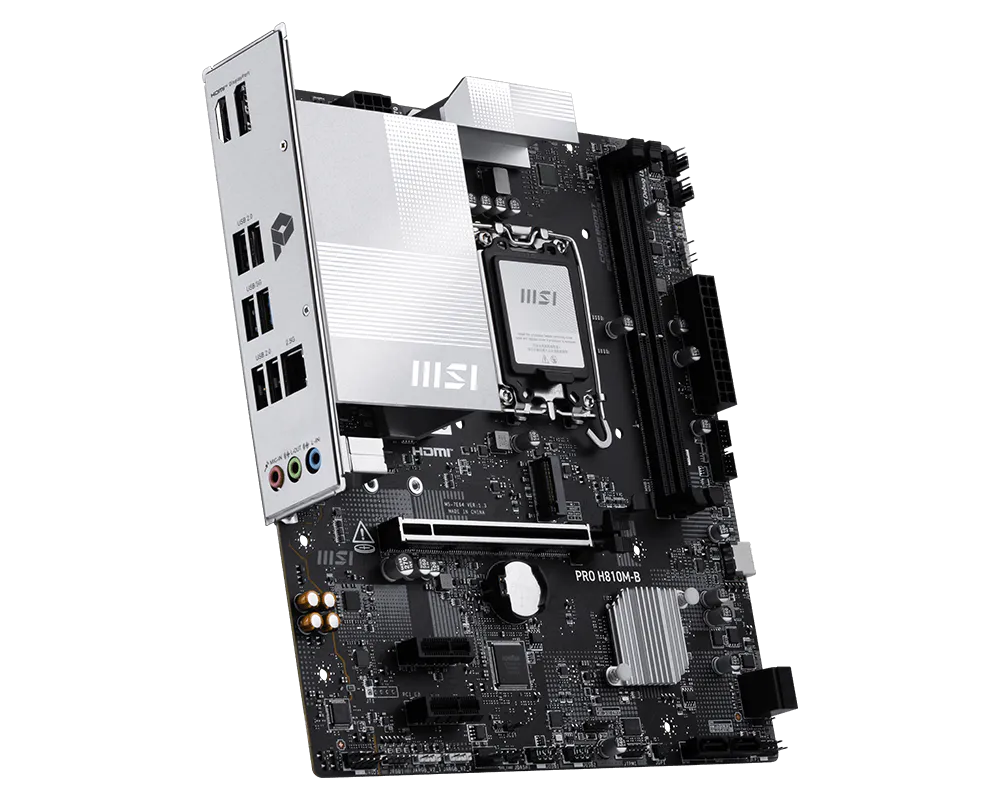

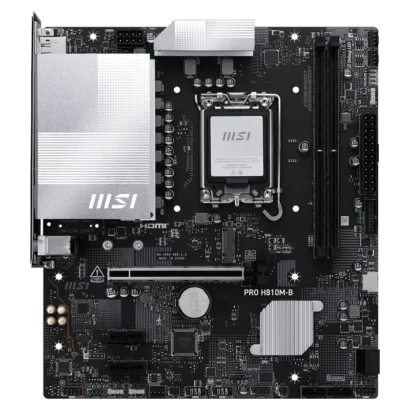

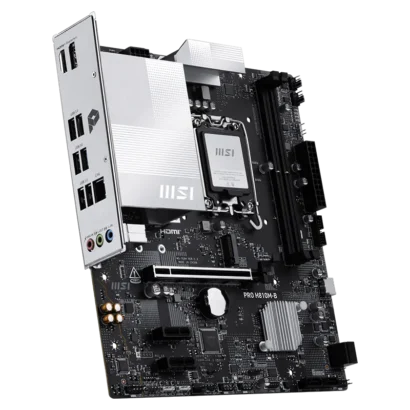

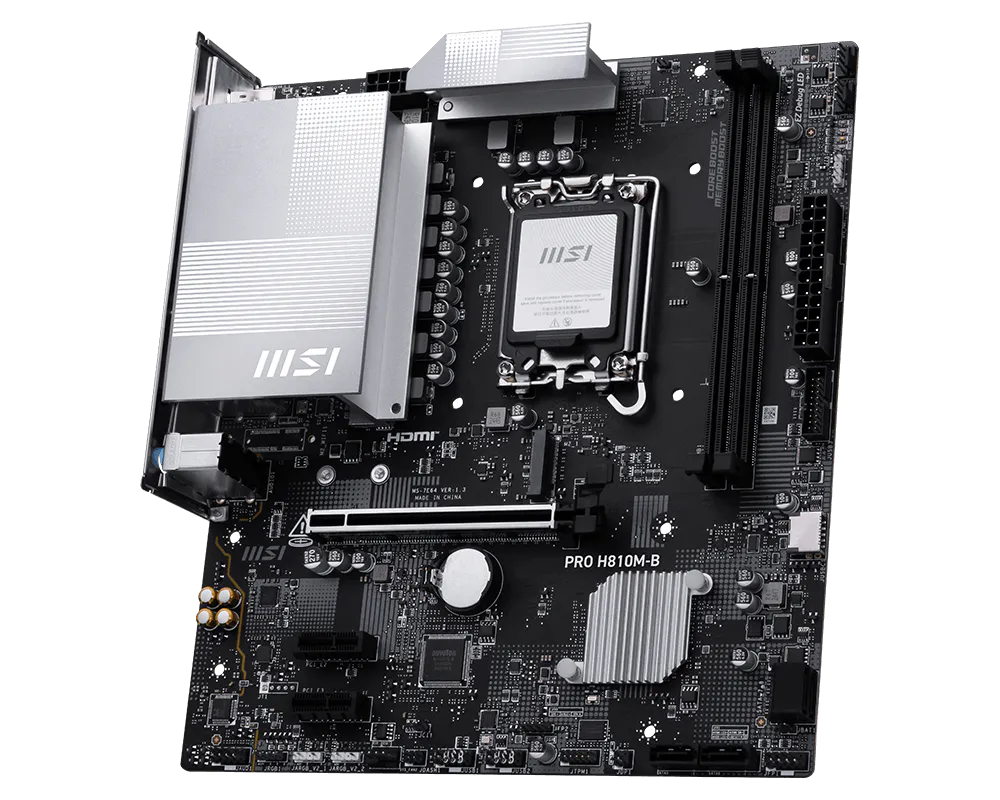

MSI PRO H810M-B
Original price was: ₹11,099.00.₹10,219.00Current price is: ₹10,219.00.
- ✅ Supports Intel Core Ultra processors (LGA 1851)
- ✅ DDR5 memory up to 128GB (up to 6400 MT/s)
- ✅ PCIe 5.0 x16 slot for modern GPUs
- ✅ M.2 Gen4 slot for fast NVMe SSD storage
- ✅ 2.5G LAN for high-speed wired networking
- ✅ HDMI + DisplayPort for integrated graphics
- ✅ USB Type-C (front) + multiple USB ports
- ✅ Extended heatsink design for better cooling
- ✅ EZ DIY features for easy installation
- ✅ Compact Micro-ATX form factor
MSI PRO H810M-B
MSI PRO H810M-B
The MSI PRO H810M-B is a dependable and budget-friendly Micro-ATX motherboard designed for everyday computing, office setups, and entry-level PC builds. Built on the Intel H810 chipset, it supports the latest Intel Core Ultra (Series 2) processors and delivers stable performance with essential next-gen features like DDR5 memory, PCIe 5.0 graphics support, and fast wired networking.
Key Features
🧠 Next-Gen Intel Platform
- Built for Intel Core Ultra (Series 2) processors using the LGA 1851 socket, ensuring compatibility with modern CPUs and future-ready performance.
💾 DDR5 Memory Support
- Supports dual-channel DDR5 memory up to 128GB, with speeds up to 6400 MT/s, improving multitasking and system responsiveness.
🎮 PCIe 5.0 Expansion
- Equipped with a PCIe 5.0 x16 slot, offering high bandwidth for next-generation GPUs and expansion cards.
⚡ Fast Storage Options
- Includes 1× M.2 PCIe 4.0 x4 slot for fast NVMe SSDs
- Additional SATA ports for flexible storage expansion
- Designed for quick load times and efficient data handling
🌐 High-Speed Networking
- Features Realtek 2.5G LAN, delivering stable and fast wired connectivity for work, streaming, and downloads.
❄️ Frozr Thermal Design
- Extended heatsinks and MOSFET thermal pads help maintain stable temperatures during heavy workloads
- Ensures long-term reliability and performance stability
⚙️ Core Boost & Power Design
- MSI Core Boost technology provides stable and efficient power delivery to the CPU for better performance and system stability.
SPECIFICATIONS
| Chipset | INTEL H810 |
|---|---|
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
|
| Memory | 2x DDR5 UDIMM, Maximum Memory Capacity 128GB Memory Support DDR5 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 6400 MT/s • 1DPC 2R Max speed up to 6400 MT/s Supports Intel® POR Speed and JEDEC Speed
|
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* |
| Slot | 1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
|
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio
|
| Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
