MSI PRO H810M-E
Original price was: ₹10,299.00.₹8,809.00Current price is: ₹8,809.00.
Key Points (Quick Highlights)
- ✅ Supports Intel Core Ultra processors (LGA 1851)
- ✅ DDR5 memory support up to 128GB (up to 6400 MT/s)
- ✅ PCIe 5.0 x16 slot for modern GPUs
- ✅ M.2 PCIe 4.0 x4 slot for fast NVMe SSDs
- ✅ 2.5G LAN for high-speed wired networking
- ✅ HDMI + DisplayPort for integrated graphics
- ✅ USB Type-C (front) + multiple USB ports
- ✅ Core Boost power design for stable performance
- ✅ EZ Debug LED & EZ PCIe Clip II for easy troubleshooting
- ✅ Compact Micro-ATX form factor

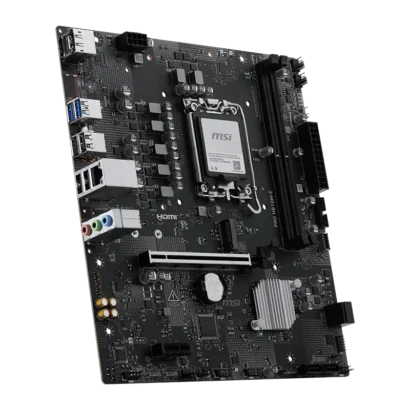

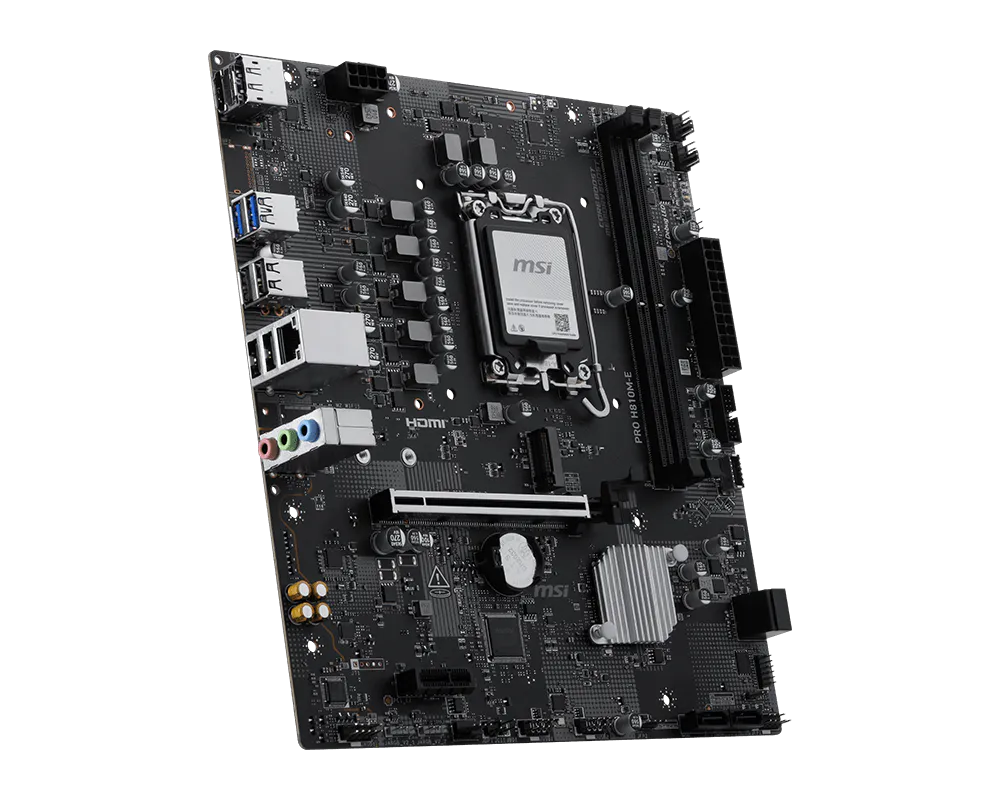

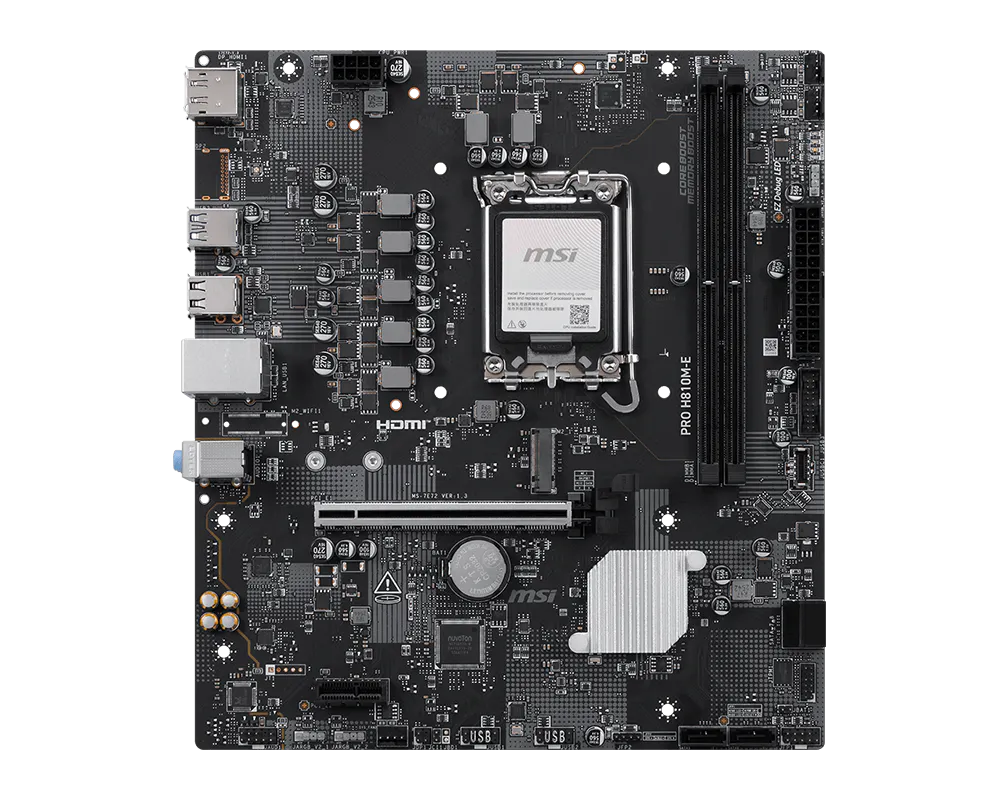

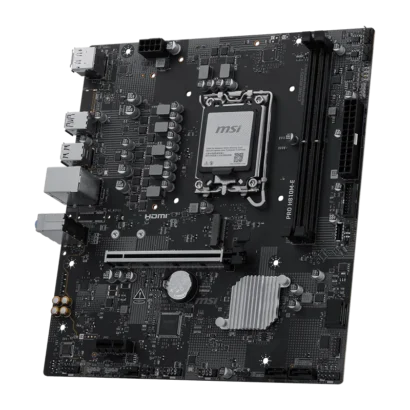

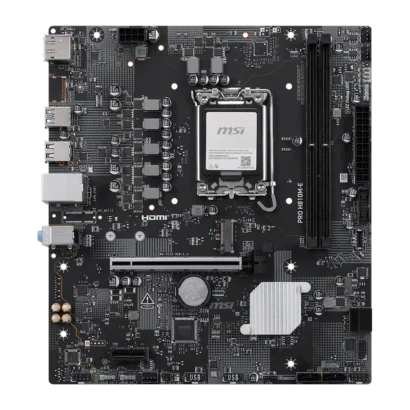

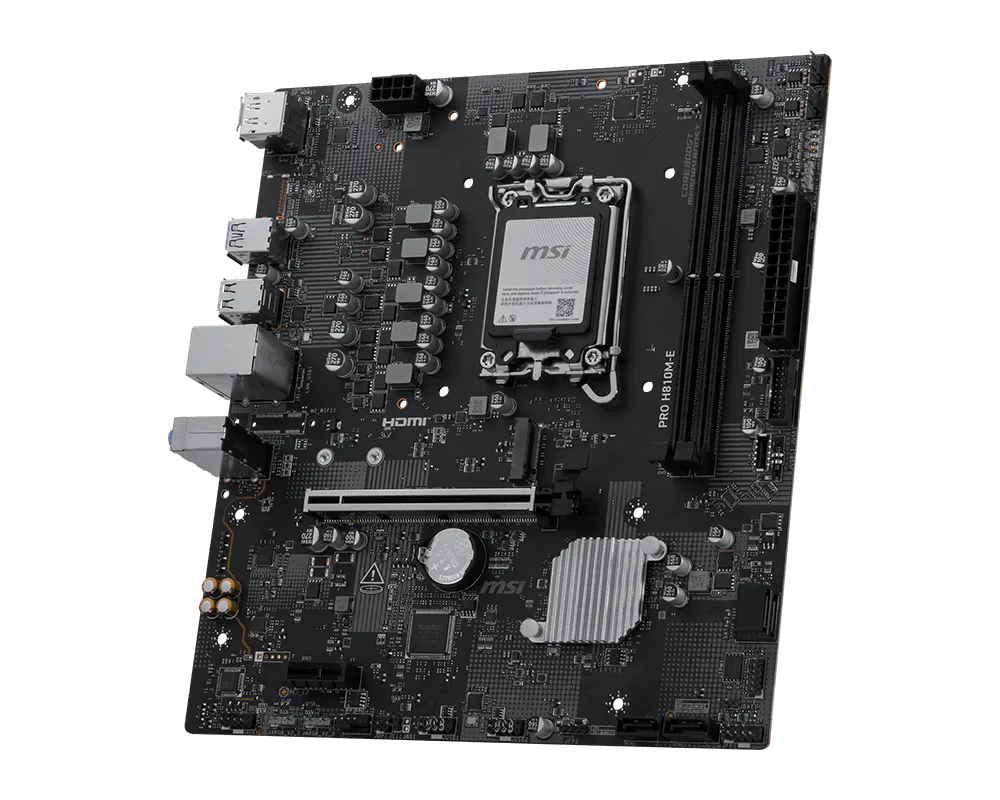

MSI PRO H810M-E
MSI PRO H810M-E
The MSI PRO H810M-E is a practical and efficient Micro-ATX motherboard built for users who want a reliable platform for everyday computing, office work, and entry-level builds. Based on the Intel H810 chipset, it supports the latest Intel Core Ultra (Series 2) processors and brings essential next-gen features like DDR5 memory, PCIe 5.0 graphics support, and high-speed networking.
Key Features
🧠 Next-Gen Intel Platform
- Designed for Intel Core Ultra (Series 2) processors on the LGA 1851 socket, delivering efficient performance for daily workloads and multitasking.
💾 DDR5 Memory Support
- Supports dual-channel DDR5 memory up to 128GB with speeds up to 6400 MT/s
- MSI Memory Boost & XMP support ensure stable and optimized memory performance.
🎮 PCIe 5.0 Expansion
- Features a PCIe 5.0 x16 slot with high bandwidth (up to 128GB/s), enabling support for next-gen GPUs and expansion cards.
⚡ Fast Storage Options
- Includes 1× M.2 PCIe 4.0 x4 slot for high-speed NVMe SSDs
- Additional SATA ports allow flexible storage configurations
- Designed for faster boot times and application loading.
🌐 High-Speed Networking
- Integrated 2.5G LAN provides faster and more stable wired internet connectivity for productivity and streaming.
❄️ Frozr Cooling Design
- Equipped with a chipset heatsink and smart fan controls
- Frozr AI Cooling automatically adjusts fan speeds for optimal thermal performance and noise balance.
⚙️ Core Boost Power Design
- MSI Core Boost technology ensures stable and precise power delivery to the CPU, improving overall system reliability.
🛠 EZ DIY Features
- EZ PCIe Clip II allows easy GPU installation/removal
- EZ Debug LED helps identify hardware issues quickly
- Clean layout for beginner-friendly building experience.
SPECIFICATIONS
| Chipset | INTEL H810 |
|---|---|
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851 |
| Memory | 2x DDR5 UDIMM, Maximum Memory Capacity 128GB Memory Support DDR5 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 6400 MT/s • 1DPC 2R Max speed up to 6400 MT/sSupports Intel® POR Speed and JEDEC Speed Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM |
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* |
| Slot | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
