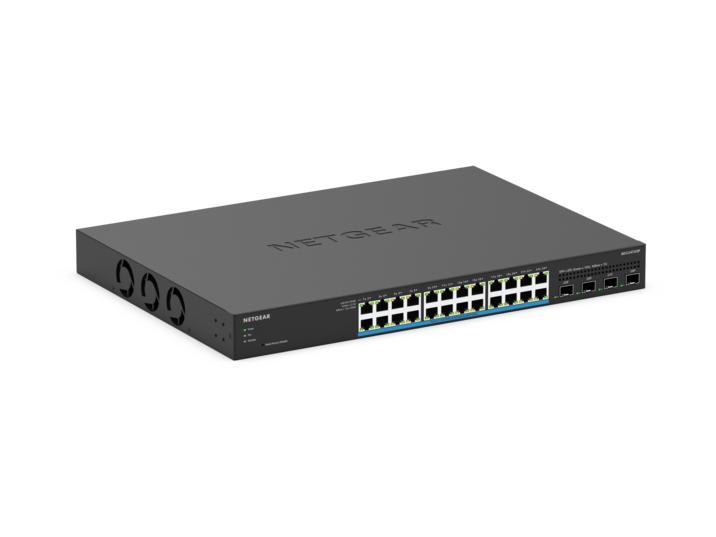

Netgear MS324TXUP 24 Port Poe+ Smart Managed Gigabit Switch
₹299,999.00
Netgear MS324TXUP is a 24-port Multi-Gigabit smart managed switch with full PoE++ (802.3bt) support and 720W total power budget.
It features 4 × 10G SFP+ uplinks, VLAN, QoS, static routing, and cloud management via NETGEAR Insight.
Perfect for powering high-performance WiFi 6 APs, IP cameras, and other PoE++ devices in business and campus networks.
Netgear MS324TXUP 24 Port Poe+ Smart Managed Gigabit Switch
Features
- 24 Multi‑Gigabit Ethernet Ports – Each port supports 1 Gbps and 2.5 Gbps speeds for faster network connectivity.
- 24 Ultra60 PoE++ (802.3bt) Ports – Supplies up to 60 W per port to power high‑power devices such as PTZ cameras and Wi‑Fi 6 access points.
- 720 W PoE Power Budget – Large total power budget to support many PoE devices at once.
- 4 × 10G SFP+ Uplink Ports – High‑speed fiber uplinks for backbone or core network connections.
- Insight Cloud & Local Smart Management – Manage and monitor the switch locally or remotely via Netgear Insight cloud.
- Advanced VLAN & Networking Support – Supports up to 256 VLANs, VLAN routing, dynamic VLAN assignment, and static routing.
- Security & Traffic Control Features – Includes IGMP/MLD Snooping, ACLs, Quality of Service (QoS), and DoS attack prevention.
- Energy Efficient & Reliable Design – Energy Efficient Ethernet (EEE), robust rackmount build, and quiet operation with internal fans.
Specifications
| Model | MS324TXUP 24 Port Poe+ |
| Multi‑Gigabit Ethernet Ports | 24 × 1G/2.5G RJ‑45 copper ports |
| SFP+ Uplink Ports | 4 × 10 Gbps SFP+ |
| PoE Standard | IEEE 802.3bt (Ultra60 PoE++) |
| PoE Ports | 24 Ultra60 PoE++ ports |
| Total PoE Power Budget | 720 W |
| Uninterrupted PoE | Yes |
| MAC Address Table | 32K entries |
| Packet Buffer Memory | 2 MB |
| VLAN Support | Up to 256 VLANs (802.1Q) |
| VLAN Routing | Supported |
| Dynamic VLAN Assignment | Yes |
| Multicast Support | MLD/IGMP Snooping |
| Static Routing | Yes (32 routes) |
| Host ARP Table | 512 ARP entries |
| Energy Efficient Ethernet (EEE) | Yes |
| DoS Attack Prevention | Yes |
| Switching Capacity | ~200 Gbps (non‑blocking) |
| Max Power Consumption (Full Load) | ~765 W |
| Internal Power Supply | Yes |
| Fans | 3 internal fans |
| Acoustic Noise Level | ~38.0 dBA |
| Dimensions | 440 × 310 × 43.2 mm |
| Weight | ~4.44 kg |
