NOCTUA L9a-AM5 CPU COOLER
Original price was: ₹6,999.00.₹4,999.00Current price is: ₹4,999.00.
Compatibility: AMD AM5
Features: Ultra-compact, low-profile cooler, perfect for HTPCs and small form factor builds
The NH-L9a-AM5 is the latest, AM5-specific revision of Noctua’s award-winning NH-L9a low-profile CPU cooler for AMD Ryzen based HTPCs and Small Form Factor (SFF) systems. At a height of only 37mm, the NH-L9a is ideal for extremely slim cases and, due to its small footprint, it provides 100% RAM and PCIe compatibility as well as easy access to near-socket connectors even on tightly packed mini-ITX motherboards. The custom-designed SecuFirm2 mounting system for the AM5 socket makes installation a breeze and, thanks to the highly optimised NF-A9x14 92mm fan that supports fully automatic speed control via PWM, the NH-L9a-AM5 runs remarkably quietly. Topped off with Noctua’s renowned NT-H1 thermal compound, the NH-L9a-AM5 combines everything users have come to expect from Noctua’s larger coolers into a super-compact, premium-quality package for ITX and HTPC builds with AMD AM5 processors.
|
|
|
|
|
|---|---|---|---|
37mm low profileDue to the slim 23mm heatsink and the NF-A9x14 low-profile fan that measures only 14mm in thickness, the NH-L9 stands a mere 37mm tall, which makes it ideal for use in compact HTPCs or Small Form Factor cases that offer minimum clearance for CPU coolers. |
100% RAM compatibilityThe NH-L9a-AM5 has a compact footprint that fully complies with the socket keep-out zones specified by AMD. This means that neither the heatsink nor the fan overhang the RAM, so the cooler provides easy access to the slots and is fully compatible with tall memory modules. |
100% compatibility with PCIe cardsSome AMD-based mini-ITX motherboards have the PCIe slot located close to the CPU socket zone. While larger coolers that exceed this zone may block the PCIe slot, the compact-sized NH-L9a-AM5 provides full compatibility with PCIe cards. |
NF-A9x14 PWM premium fanThe highly optimized, award-winning NF-A9x14 premium fan features Noctua’s proprietary AAO frame as well as sophisticated aerodynamic design measures. Supporting PWM for fully automatic speed control, the NF-A9x14 allows the NH-L9a to stay remarkably quiet. |
Please Note:
The NH-L9a-AM5 is a highly compact, quiet low-profile cooler designed for use in small form factor cases and HTPC environments. While it provides first-rate performance in its class, it is not suitable for overclocking and or CPUs that create high heat loads.
Scope of delivery
- NF-A9x14 HS-PWM premium fan
- NA-RC7 Low-Noise Adaptor (L.N.A)
- NT-H1 high-grade thermal compound
- SecuFirm2 AM5 mounting kit
- Screws for 92x92x25mm fans
- Noctua metal case-badge
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

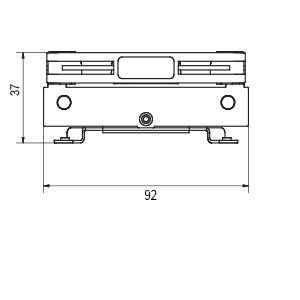

Measurements
- Height (without fan): 23 mm
- Width (without fan): 114 mm
- Depth (without fan): 92 mm
- Height (with fan): 37 mm
- Width (with fan): 114 mm
- Depth (with fan): 92 mm
- Weight (without fan): 390 g
- Weight (with fan): 465 g
