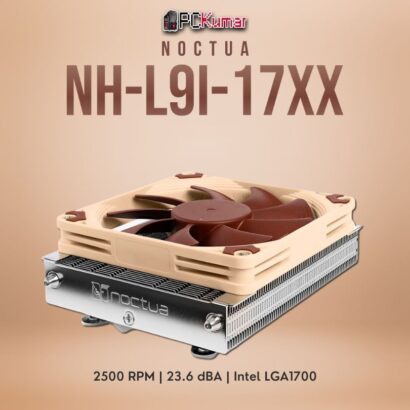

NOCTUA L9I-17XX CPU COOLER
Original price was: ₹6,999.00.₹4,299.00Current price is: ₹4,299.00.
Compatibility: Intel LGA1700
Features: Low-profile cooler designed for compact systems with 37mm total height, ideal for mini-ITX builds
The NH-L9i-17xx is the latest, LGA1700-specific revision of Noctua’s award-winning NH-L9i low-profile CPU cooler for Intel-LGA17xx based HTPCs and Small Form Factor (SFF) systems. At a height of only 37mm, the NH-L9i is ideal for extremely slim cases and, due to its small footprint, it provides 100% RAM and PCIe compatibility as well as easy access to near-socket connectors even on tightly packed mini-ITX motherboards. The custom-designed SecuFirm2 mounting system for the LGA1700 (LGA17xx family) socket makes installation a breeze and, thanks to the highly optimized NF-A9x14 92mm fan that supports fully automatic speed control via PWM, the NH-L9i-17xx runs remarkably quietly. Topped off with Noctua’s renowned NT-H1 thermal compound, the NH-L9i-17xx combines everything users have come to expect from Noctua’s larger coolers into a super-compact, premium-quality package for ITX and HTPC builds with Intel LGA17xx family CPUs.
|
|
|
|
|
|---|---|---|---|
37mm low profileDue to the slim 23mm heatsink and the NF-A9x14 low profile fan that measures only 14mm in thickness, the NH-L9 stands a mere 37mm tall, which makes it ideal for use in compact HTPCs or Small Form Factor cases that offer minimum clearance for CPU coolers. |
100% RAM compatibilityThe NH-L9i has a 95x95mm footprint that complies exactly with the Intel LGA1700 (LGA17xx family) socket keep-out zone. This means that it won’t cause issues with VRM heatsinks and doesn’t overhang the RAM slots, so it’s fully compatible with tall memory modules. |
100% compatibility with PCIe cards on mini-ITXSome mini-ITX motherboards have the PCIe slot sitting close to the 95x95mm socket zone. While larger coolers that exceed this zone are likely to block the PCIe slot, the 95x95mm sized NH-L9i provides full compatibility with PCIe cards. |
NF-A9x14 PWM premium fanThe highly optimised NF-A9x14 premium fan features Noctua’s proprietary AAO frame as well as sophisticated aerodynamic design measures. Supporting PWM for fully automatic speed control, the NF-A9x14 allows the NH-L9i to stay remarkably quiet. |

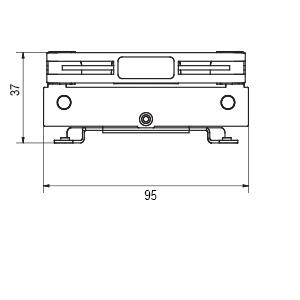

Measurements
- Height (without fan) 23 mm
- Width (without fan) 95 mm
- Depth (without fan) 95 mm
- Height (with fan) 37 mm
- Width (with fan) 95 mm
- Depth (with fan) 95 mm
- Weight (without fan) 345 g
- Weight (with fan) 420 g
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Cooler Specifications
Please Note:
The NH-L9i is a highly compact, quiet low-profile cooler. While it provides first-rate performance in its class, it is not suitable for overclocking and or CPUs that create high heat loads. Please consult our CPU compatibility list to find out whether the NH-L9i is recommended for your CPU.
Scope of delivery
- NF-A9x14 HS-PWM premium fan
- NA-RC7 Low-Noise Adaptor (L.N.A)
- NT-H1 high-grade thermal compound
- SecuFirm2 mounting kit
- Screws for 92x92x25mm fans
- Noctua Metal Case-Badge
New revision for Intel’s LGA1700 (LGA17xx family) socket
Since the original NH-L9i for LGA1200 and LGA115x has received more than 200 awards and recommendations from international hardware websites and magazines, the new 17xx revision builds on the same proven heatsink design to provide excellent low-profile cooling performance for LGA1700 CPUs.
