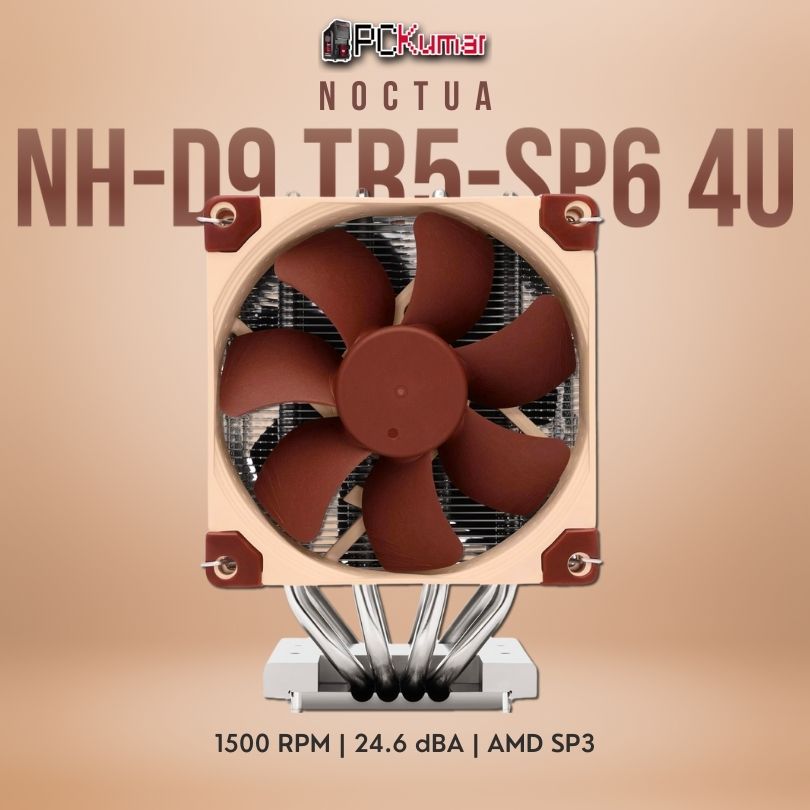

NOCTUA NH-D9 TR5-SP6 4U CPU COOLER
Original price was: ₹16,999.00.₹11,999.00Current price is: ₹11,999.00.
Compatibility: AMD TR5-SP6
Features: 4U dual-tower cooler with high efficiency for AMD server platforms, designed for tight spaces
The NH-D9 TR5-SP6 4U is a 92mm size premium quality quiet CPU cooler for workstations and servers based on AMD Threadripper and Epyc processors that utilise sTR5/SP6 sockets. Built on the proven basis of the DX model with its dual tower heatsink and full-cover contact surface, the TR5-SP6 revision employs two of Noctua’s award-winning, PWM controlled NF-A9 92mm fans in their higher speed variant in order to achieve strong performance and superb acoustics. The NH-D9’s direction of airflow is parallel to the long axis of the socket, so it is ideal for builds where the hot air is exhausted this way. Topped off with the pre-applied NT-H2 thermal compound as well as the professional SecuFirm2 mounting system for sTR5/SP6 that has been updated to meet the platform’s increased pressure specifications, the NH-D9 TR5-SP6 4U forms a complete premium quality package for quietly cooling sTR5-based Threadripper workstations and SP6-based Epyc servers in 4U cases.
|
|
|
|
|
|---|---|---|---|
Enlarged contact surfaceAt 70x56mm, the heatsink’s copper contact surface is more than double the size of the standard desktop model. Tailored to fit the enormous integrated heat-spreaders (IHS) of AMD’s sTR5/SP6 based processors, this customised design allows for an optimal heat flow from the CPU over the base to the heatpipes and on to the cooling fins. |
Dual NF-A9 HS-PWM fansThe NH-D9 TR5-SP6 4U is equipped with two of Noctua’s award-winning NF-A9 92mm fans in their high-speed 2500rpm HS-PWM variant. This push/pull dual fan configuration makes it possible to achieve a level of cooling performance that is remarkable for such a compact. |
Pre-applied NT-H2 thermal compoundNoctua’s much-acclaimed NT-H2 is a pro-grade TIM solution that provides minimum thermal resistance and outstanding long-term stability. Having the paste pre-applied to the heatsink base ensures optimal bond-line thickness and saves precious time in installation. Ideal for system integrators! |
SecuFirm2 mounting for TR5-SP6The NH-D9 TR5-SP6 4U combines the proven basis of the DX model with new mounting brackets for AMD’s sTR5/SP6 socket. Installation is just as easy as with the previous TR4-SP3 models: Put on the heatsink, fix the four spring-loaded Allen key screws using the supplied tool and you’re done! |
Measurements
- Height (without fan): 134 mm
- Width (without fan): 95 mm
- Depth (without fan): 95 mm
- Height (with fan): 134 mm
- Width (with fan): 95 mm
- Depth (with fan): 120 mm
- Weight (without fan): 584 g
- Weight (with fan/s): 769 g
Materials
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Cooler Specification
Please note that the NH-D9 TR5-SP6 4U is a dedicated version for AMD sTR5/SP6 sockets. Due to its customised larger base, it cannot be used on smaller sockets and is incompatible with Noctua’s mounting kits for these sockets. Please refer to our socket compatibility overview for details.
Scope of delivery
- 2x NF-A9 HS-PWM premium fan
- NA-YC1 4-pin PWM splitter cable
- NT-H2 high-grade thermal compound (pre-applied)
- SecuFirm2 mounting kit for sTR5/SP6
- NM-SMT3 mounting tool for mounting bracket installation
Proven heatsinks for AMD Threadripper & Epyc
First introduced in 2017, Noctua’s Threadripper and Epyc coolers have become a standard choice when it comes to quiet, premium grade air cooling solutions for AMD-based workstations and servers.
About this item
- Compact 92mm size (134mm height) for excellent PCIe compatibility and 4U support, high cooling performance thanks to 6 heatpipes, dual tower design and two NF-A9 premium fans, ideal for quiet 4U servers
- Supports AMD SP6 socket for Epyc 8004 line server CPUs as well as sTR5 socket for 7000 series Threadripper (Pro) HEDT and workstations processors (TRX50/WRX90 chipsets, e.g. 7995WX, 7985WX, 7980X, 7970X, 7960X)
- Airflow path parallel to the long axis of the socket, ideal for systems where the exhaust fans of the chassis are in this direction
- Two award-winning NF-A9 fans (push/pull dual fan configuration), supporting PWM for automatic speed control through the motherboard: silent at idle, full CFM performance when necessary
- Pre-applied NT-H2 thermal compound and easy, straightforward installation with included mounting tool
