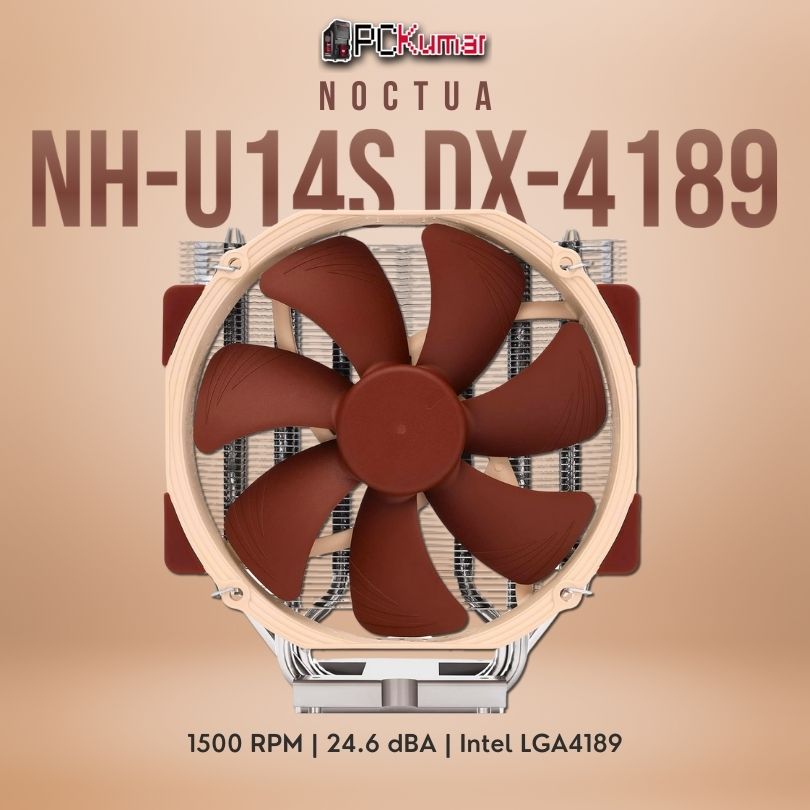

NOCTUA NH-U14S DX-4189 CPU COOLER
Original price was: ₹14,999.00.₹10,999.00Current price is: ₹10,999.00.
Compatibility: Intel LGA4189
Features: Large 140mm heatsink with a single NF-A15 fan for optimal cooling, designed for professional Xeon workstations
Noctua’s DX line CPU coolers have become a default choice in premium grade quiet cooling solutions for Intel Xeon processors. The NH-U14S DX-4189 features a larger, custom-designed contact surface for LGA4189 platforms. Based on the proven, 140mm size NH-U14S heatsink and equipped with Noctua’s award-winning, PWM controlled NF-A15 140mm fan, it combines maximum performance and superb acoustics. Topped off with the professional SecuFirm2 mounting system and pre-applied NT-H1 thermal compound, the NH-U14S DX-4189 forms a complete premium quality package for quietly cooling LGA4189 based Xeon workstations and servers.
|
|
|
|
|
|---|---|---|---|
Enlarged contact surfaceAt 70x56mm, the heatsink’s copper contact surface is more than double the size of the standard model. Tailored to fit the enormous integrated heat-spreaders (IHS) of Intel’s LGA4189-based processors, this customised design allows for an optimal heat flow from the CPU over the base to the heatpipes and on to the cooling fins. |
NF-A15 140mm premium fanComplying with Noctua’s AAO standard and featuring sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A15 has quickly built up a reputation as one of the best 140mm heatsink fans on the market. |
Pre-applied NT-H1 thermal compoundNoctua’s much-acclaimed NT-H1 is a pro-grade TIM solution that provides minimum thermal resistance and outstanding long-term stability. Having the paste pre-applied to the heatsink base ensures optimal bond-line thickness and saves precious time in installation. Ideal for system integrators! |
LGA4189-4 (P4) CPU carrier frameThe scope of delivery includes an LGA4189-4 (P4) type CPU carrier frame for Intel Ice Lake-SP and Ice Lake-64L based processors (Whitley platform). However, the heatsink’s SecuFirm2 mounting system also supports P5 type LGA4189 sockets (LGA4189-5) for Intel Cooper Lake based processors. CPU carrier frames for LGA4189-5 are available on request from Noctua customer support. |

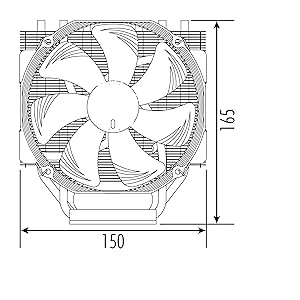

Measurements
- Height (without fan): 165 mm
- Width (without fan): 150 mm
- Depth (without fan): 52 mm
- Height (with fan): 165 mm
- Width (with fan): 150 mm
- Depth (with fan): 78 mm
- Weight (without fan): 797 g
- Weight (with fan/s): 957 g
Materials
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Cooler Specification
Socket compatibility
Please note that the NH-U14S DX-4189 is a dedicated version for the Intel LGA4189 socket. Due to its customised larger base, it cannot be used on most other sockets and is incompatible with Noctua’s standard mounting kits.
Scope of delivery
- NF-A15 HS-PWM premium fan
- Anti-vibration pads and fan-clips for second NF-A15
- NT-H1 high-grade thermal compound (pre-applied)
- SecuFirm2 mounting kit for LGA4189
- CPU carrier frame for LGA4189-4 (P4)
- NM-SMT5 Tor T30 mounting tool
Customised for LGA4189
The DX-4189 line coolers are dedicated solutions for Intel’s professional LGA4189 platform (Whitley), which makes them an ideal fit for both Ice Lake-SP based 3rd generation Xeon Scalable CPUs (Platinum, Gold, Silver or Bronze) and W-3300 series Xeon processors for workstations (Ice Lake-64L).
Technical Details
